13
ASSEMBLY
STEP 2 | BACK PAD ASSEMBLY INSTRUCTIONS & NOTES

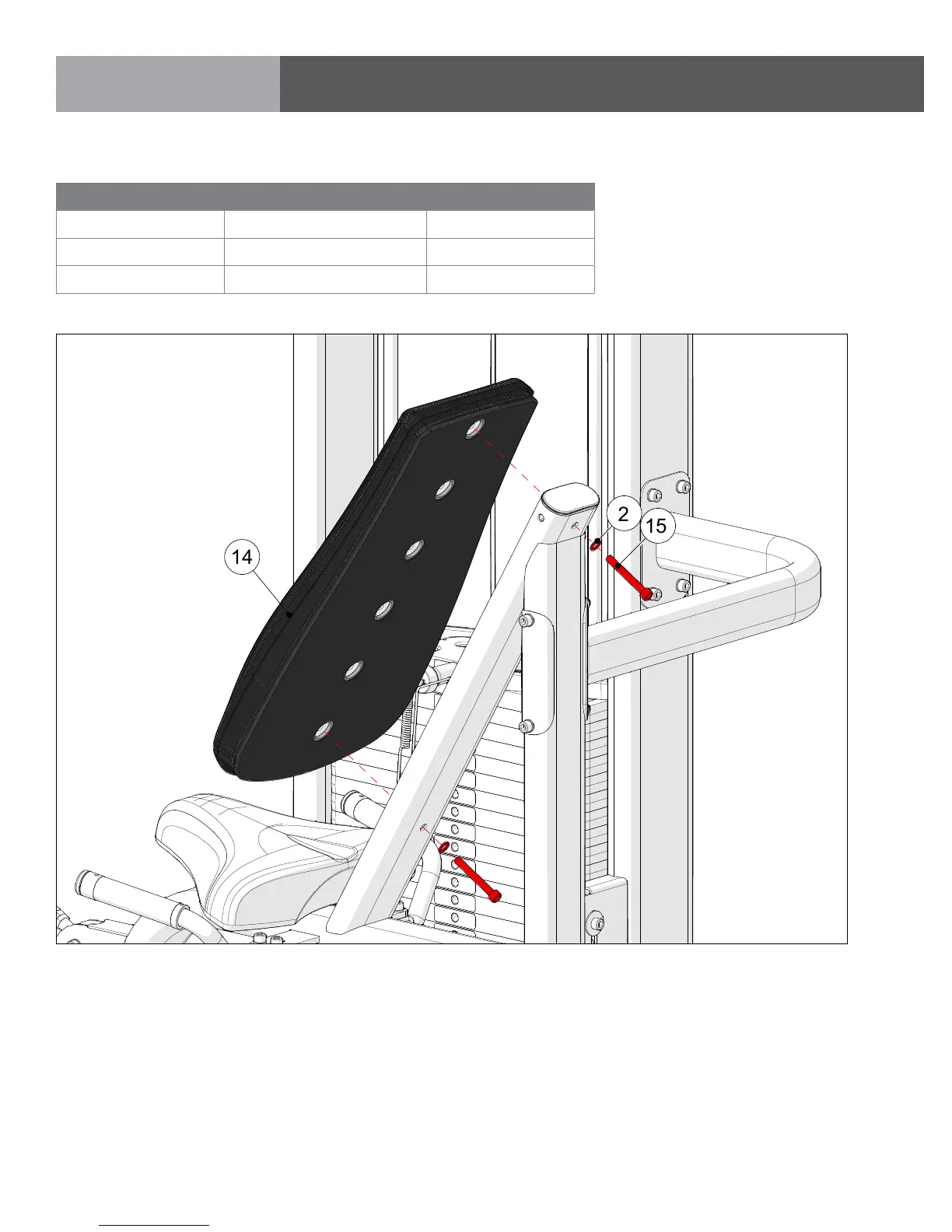

PART 4: PAD ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
14 Back Pad 1
15 M10 X 75L SHC 2
14
2
15
Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
