14

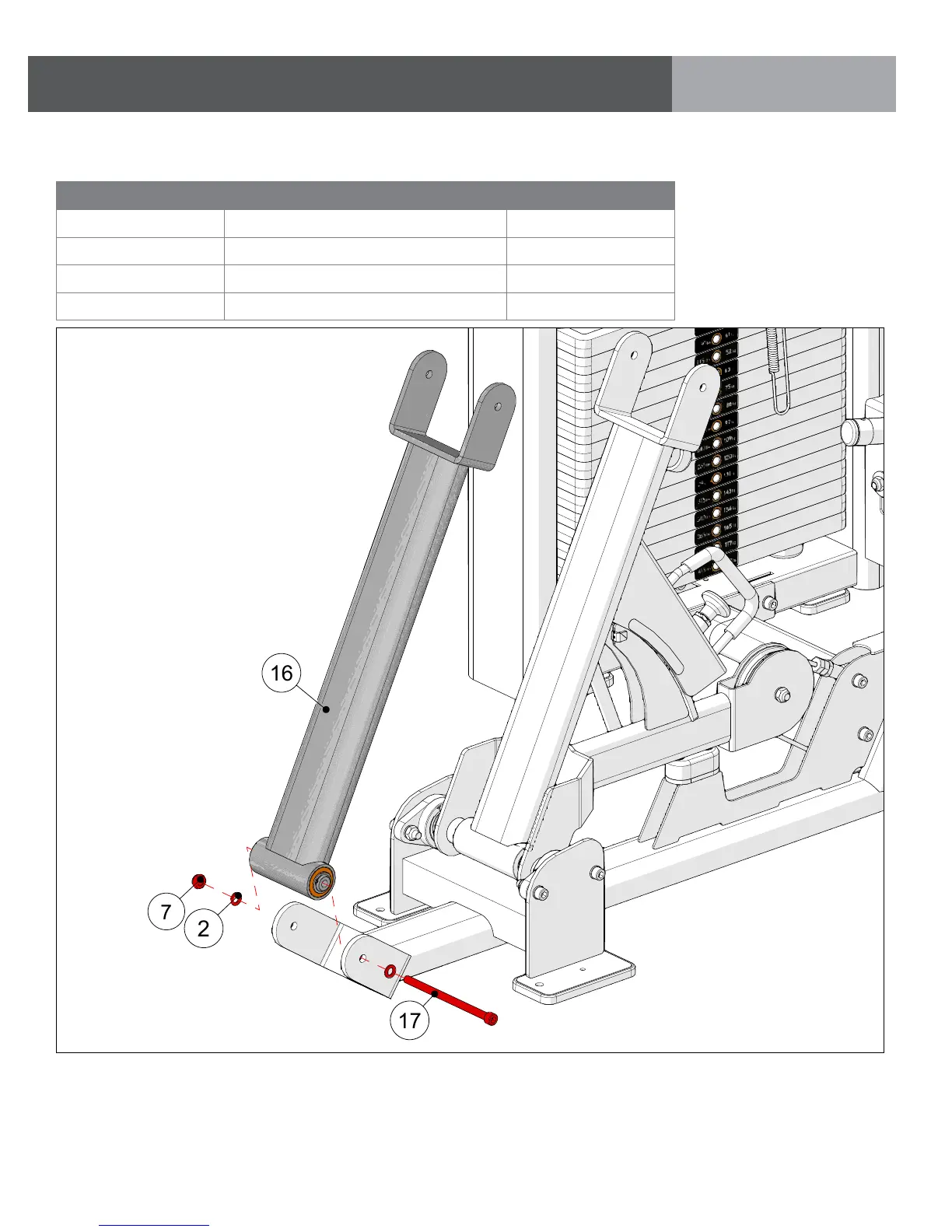

PART 5: EXERCISE ARM ASSEMBLY
STEP 1 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
7 M10 Nylock Nut 1
16 Linkage 1
17 M10 X 160L SHC 1
ASSEMBLY
7
16
17
Install the user frame hardware as shown.
Fully Tighten to: 77 N-m/57 ft/lbs.
