ASSEMBLY
STEP 1 | BOTTOM PAD ASSEMBLY INSTRUCTIONS & NOTES
PART 4: PAD ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
6 M10 X 20L SHC 4
13 Pad 1
6
2
13

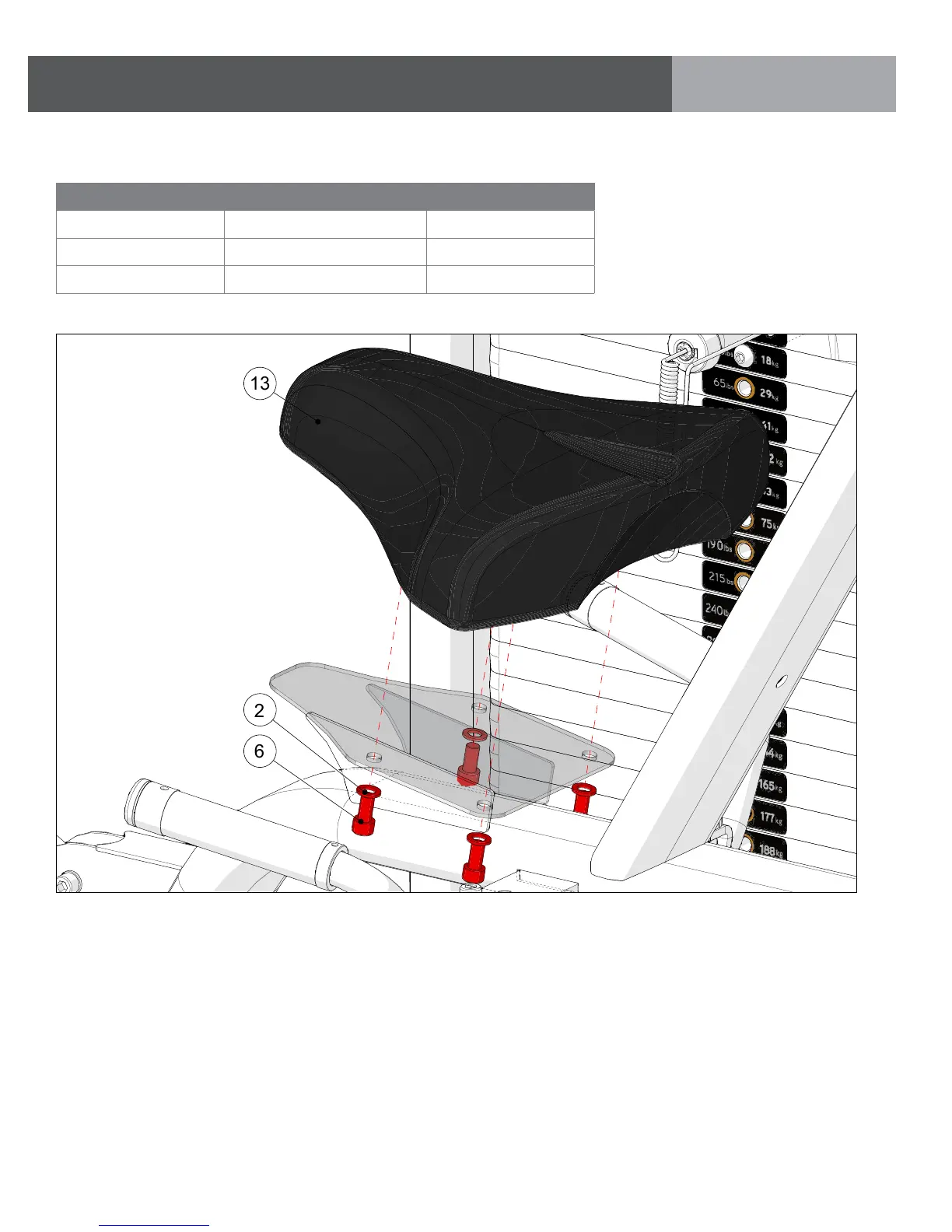

Install the pad as shown.
Tighten to 27 N-m/20 ft-lbs.
