10
ASSEMBLY
STEP 1 | CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 2: CABLE ASSEMBLY

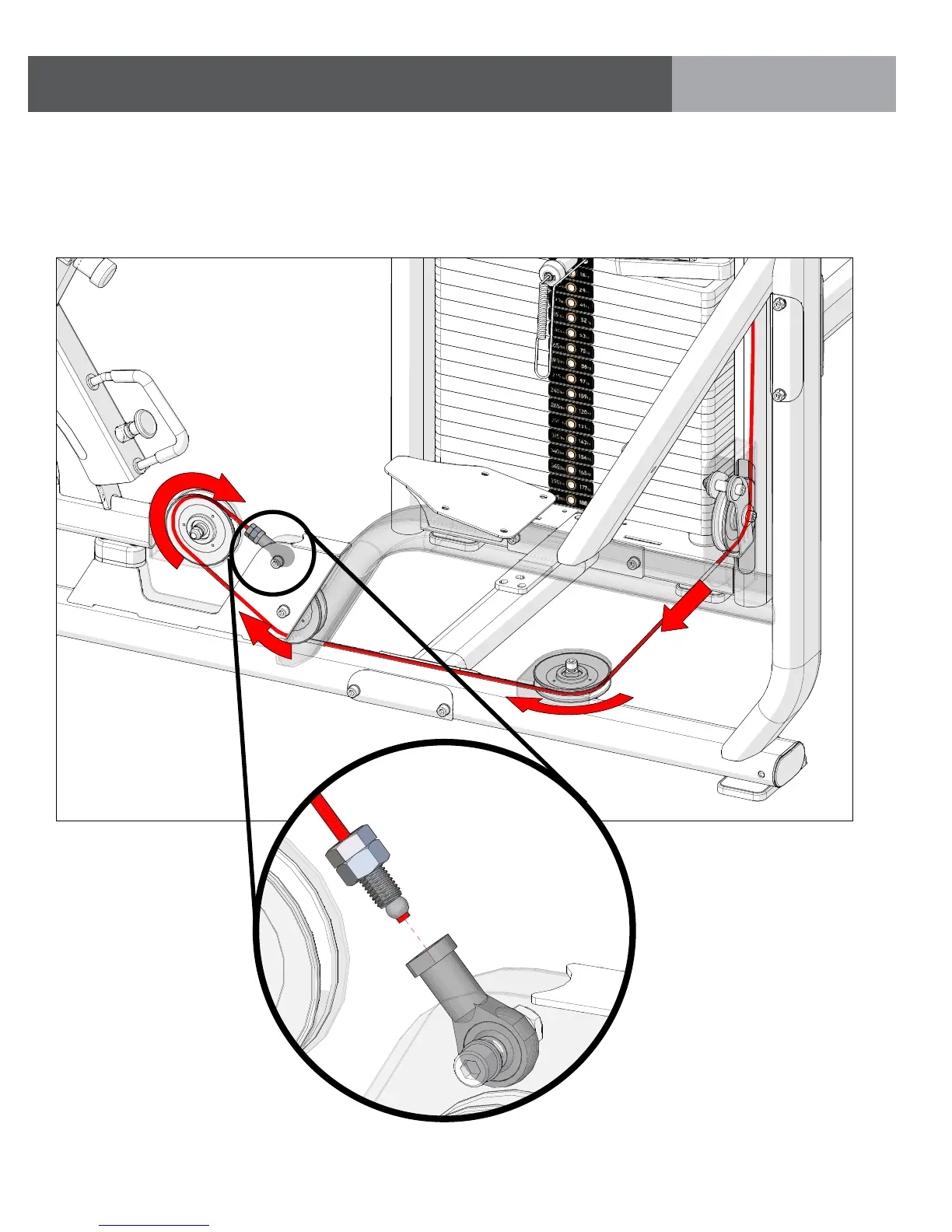

Route the cable as shown from the weight stack.
Assemble cable end as
shown. Fully tighten
fitting.
