PART 1: WEIGHT STACK TO USER FRAME ASSEMBLY

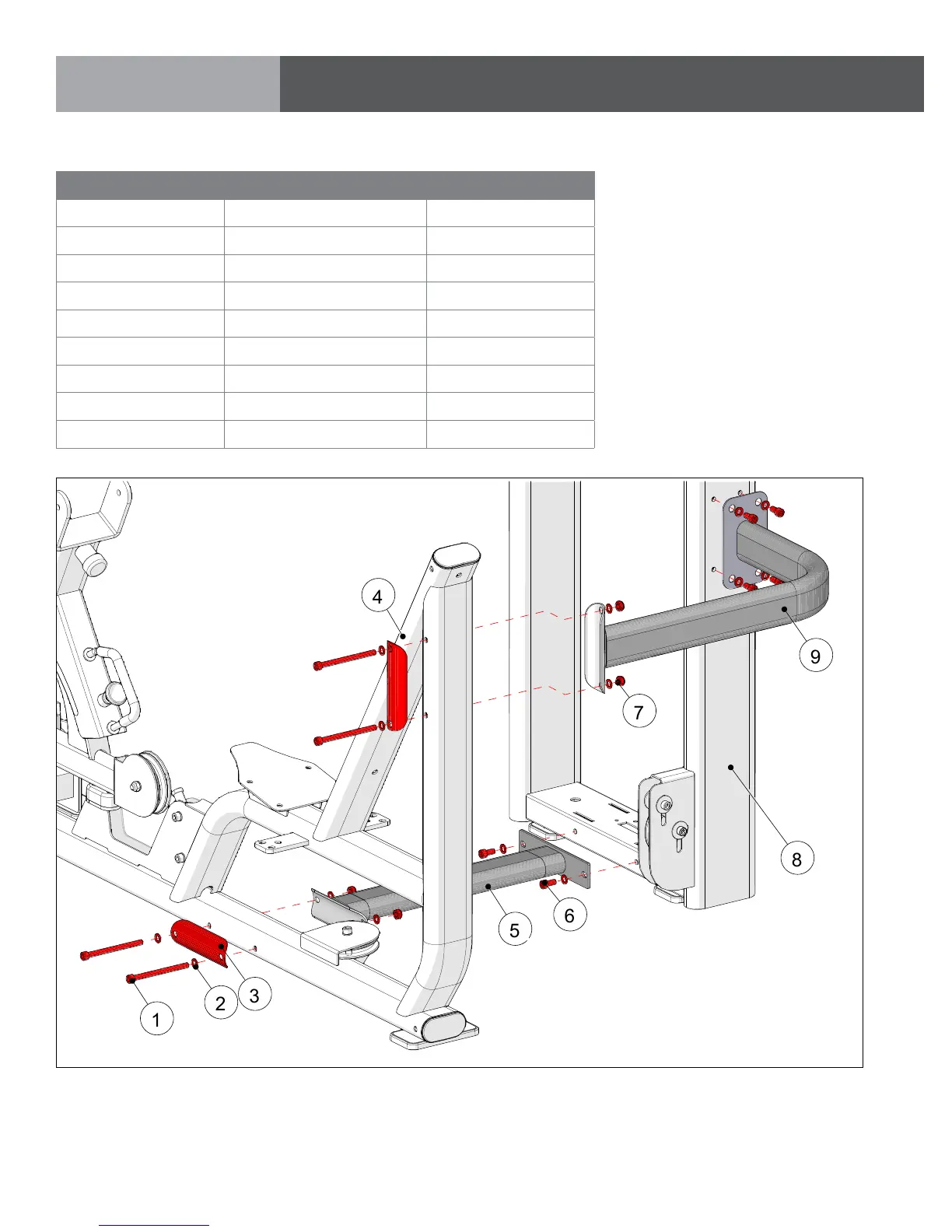

STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES
6
5
8
3
2
1
9
7
4
ID DESCRIPTION QUANTITY
1 M10 X 125L SHC 4
2 M10 Flat Washer 14
3 Wide Cupped Flange 2
4 User Frame 1
5 Lower Connecting Tube 1
6 M10 X 20L 6
7 M10 Nylock Nut 4
8 Weight Stack Frame 1
9 Upper Connecting Tube 1
Install the user frame hardware as shown, but DO NOT FULLY TIGHTEN .
