PART 5: EXERCISE ARM ASSEMBLY
STEP 2 | EXERCISE ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 4
7 M10 Nylock Nut 2
17 M10 X 160L SHC 2
18 Exercise Arm 1

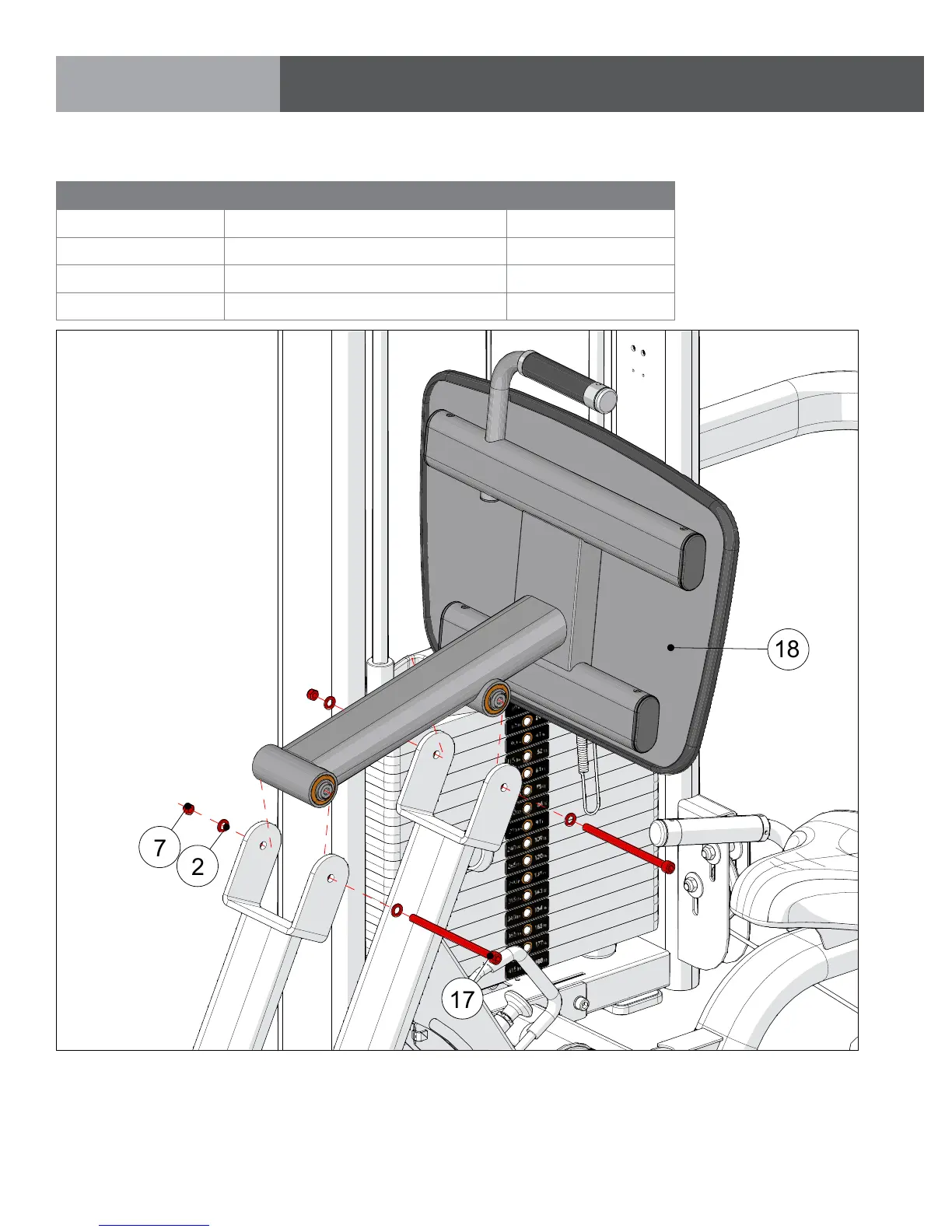

ASSEMBLY
Install the user frame hardware as shown.
Fully Tighten to: 77 N-m/57 ft/lbs.
7
2
18
17
