Matrix XIR Service Manual

12
ENG 3
Information

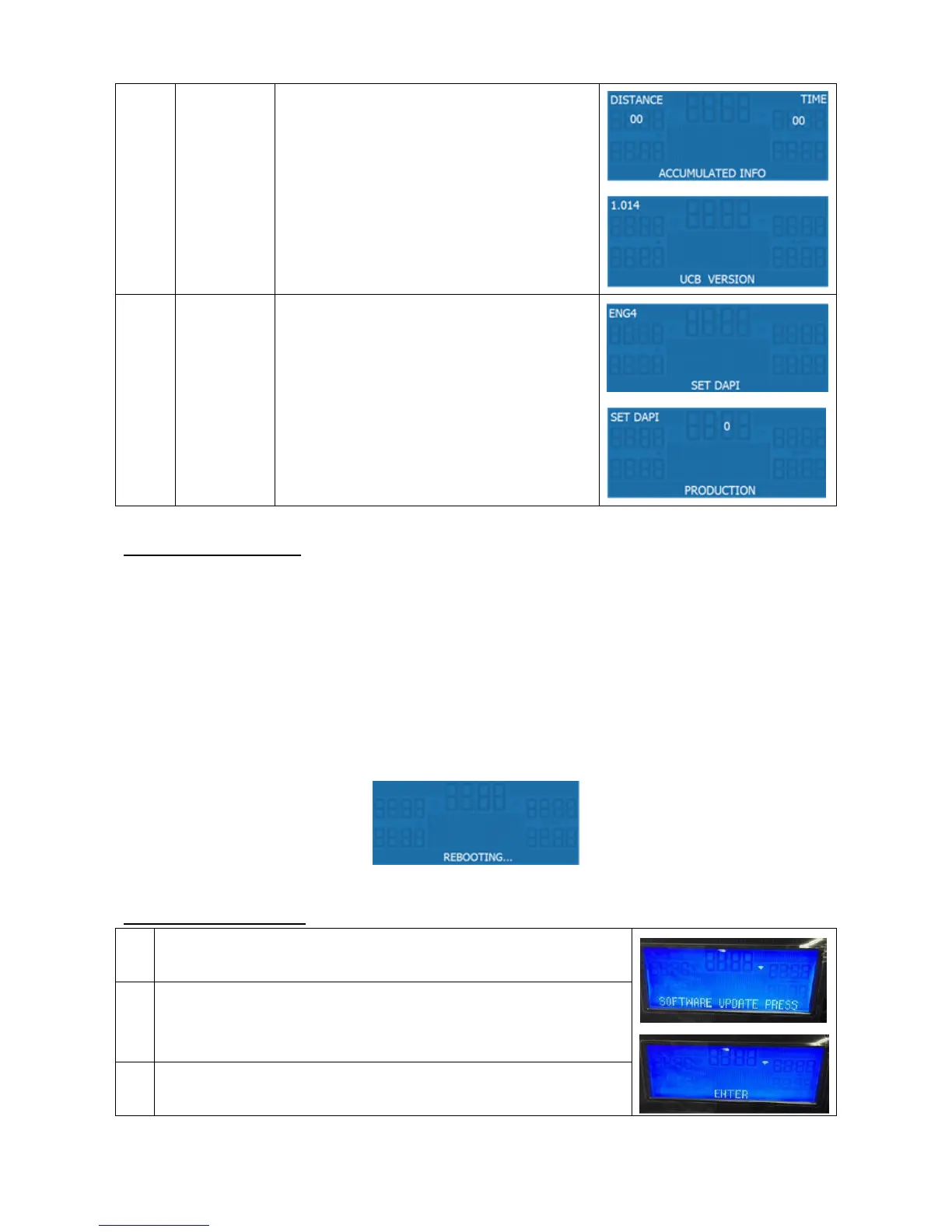

 Accumulated information(Distance &Time)
 LCB software version
 UCB software version
ENG 4
SET DAPI
There are “Production”, “QA”, “Staging” and “DEV”
servers.
Must to select “Production”
3.4 Other information
PASSPORT SYNC
In standby page to hold Passport icon 3 seconds console will showing “RF SYNC” once completed
console display “PASSPORT READY”
ROOT
In standby page to hold key 9 till console showing “REBOOTING” to reset setting including
Language, Model and Unit then back to standby page.
3.5 Software updating
1
Updating console software with USB Flash Driver, software releases
will be seen on web.
2
Fill U disk with the well-prepared and updated software.
Insert USB Flash Driver into USB port, you will see “software update
press enter”; press enter and then software will update automatically.
3
If software be updated successfully, console will return to user screen.
Remove USB flash disk.
