Matrix XIR Troubleshoot Manual

4/21 | Version 7 | Revision Date: 4/21/2020 | Revised by: JS Matrix Xer & Xir Console
POWER ISSUES TOC
Dead, Off, Reset, Reboot
Console doesnt
power on at all
12VDC on CC
pins 1-8?
Verify power to
machine
Troubleshoot
MCB/LCB &
Console Cable
Swap console
with same type
(if available)
Replace Console
TSG-BB41
Problem follows console
Cosole resets
continuously/
doesnt take
input
Replace Console
TSG-BB37
DEAD
RESETS
No
Problem stays with frame
Update software to
latest version.
Restore Factory
Defaults and ensure
the correct Machine
Type is chosen.
Didnt fix?
Yes
Check that header
on UCB hasnt been
inadvertently
installed upside
down.

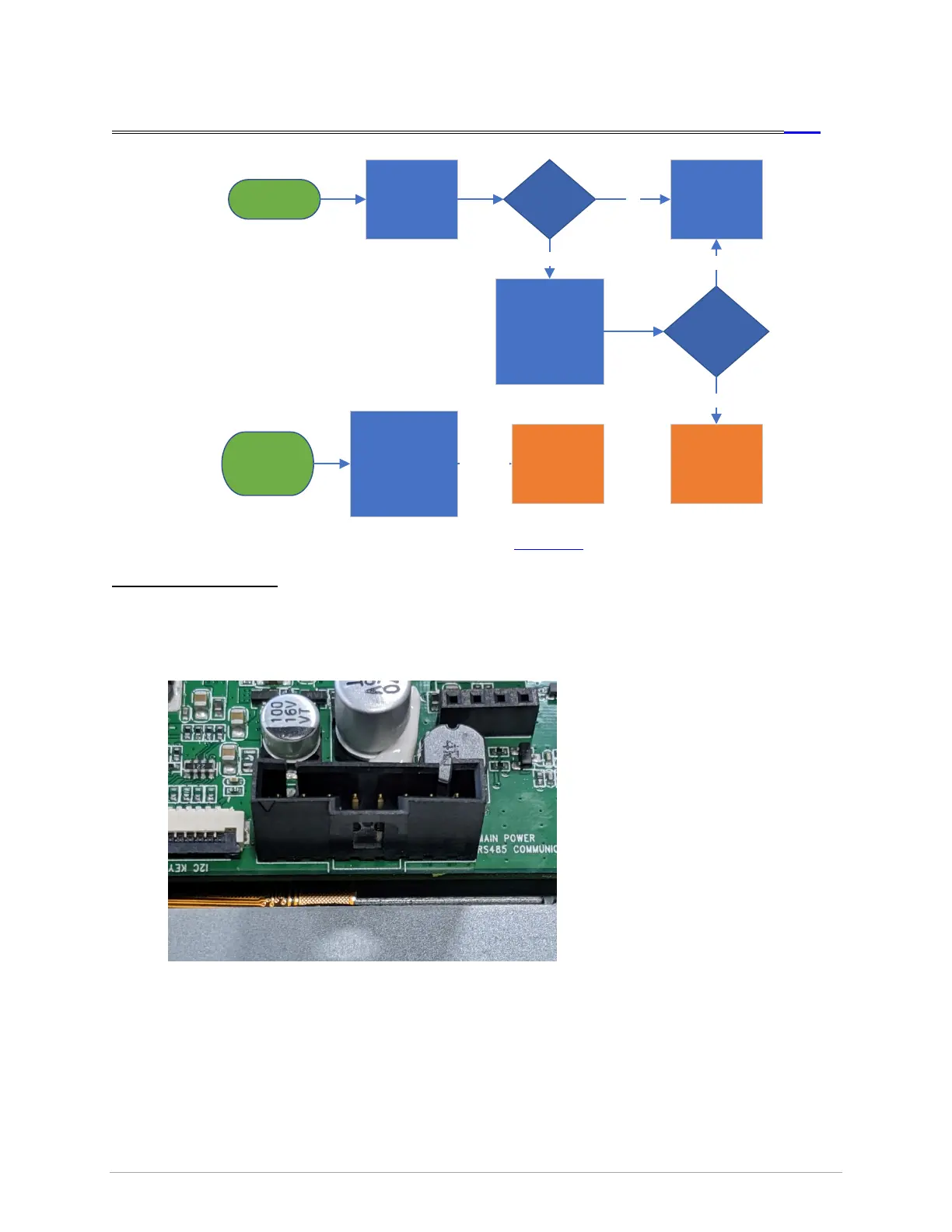

Refer to picture.
If your issue persists, Click here.
Additional Information
• When replacing a console, the Console Cable connector (header) could be pulled from the board,
and inadvertently installed upside-down – the new console will not work in this configuration.
Correct orientation has the clip down, away from the board.
