Matrix XR Service Manual

10
CHAPTER 3: XR CONSOLE ENGINEER MODE
3.1 Initial setup

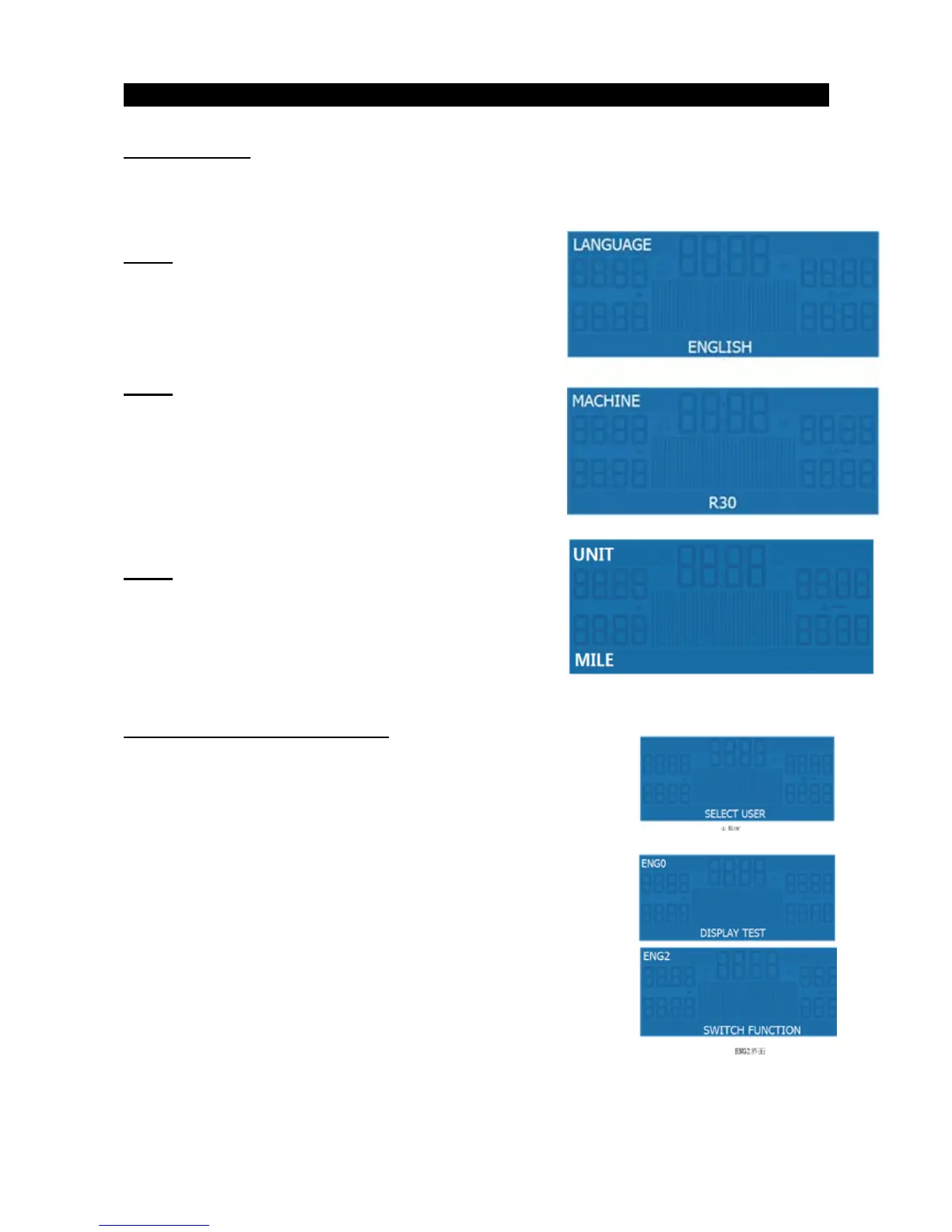

When the console is first powered on, it will start in setup wizard.
Step1:
Press UP/DOWN key to select language and press
ENTER to move on to the next setting for Machine type
Step2:
Press UP/DOWN key to select machine type and press
ENTER to save.
Step3:
Press UP/DOWN key to select machine unit (KM or Mile)
And press ENTER to complete setup wizard.
3.2 How to enter engineer mode
Press incline+ and speed- 3seconds to enter engineer mode (TM).
Press resistance+ and resistance- 3seconds to enter engineer
mode(BK&EP&AS)
Use “up” and “down” keys to scroll menu..
ENG0 DISPLAY TEST
ENG1 HARDWARE TEST
ENG2 SWITCH FUNCTION
ENG3 INFORMATION
ENG4 SET DAPI
To select, press “enter” to into next level of menu options.
Press “STOP” for 3 seconds to return to previous menu.
