Matrix XR Service Manual

6
CHAPTER 2: XR CONSOLE INSTRUCTION

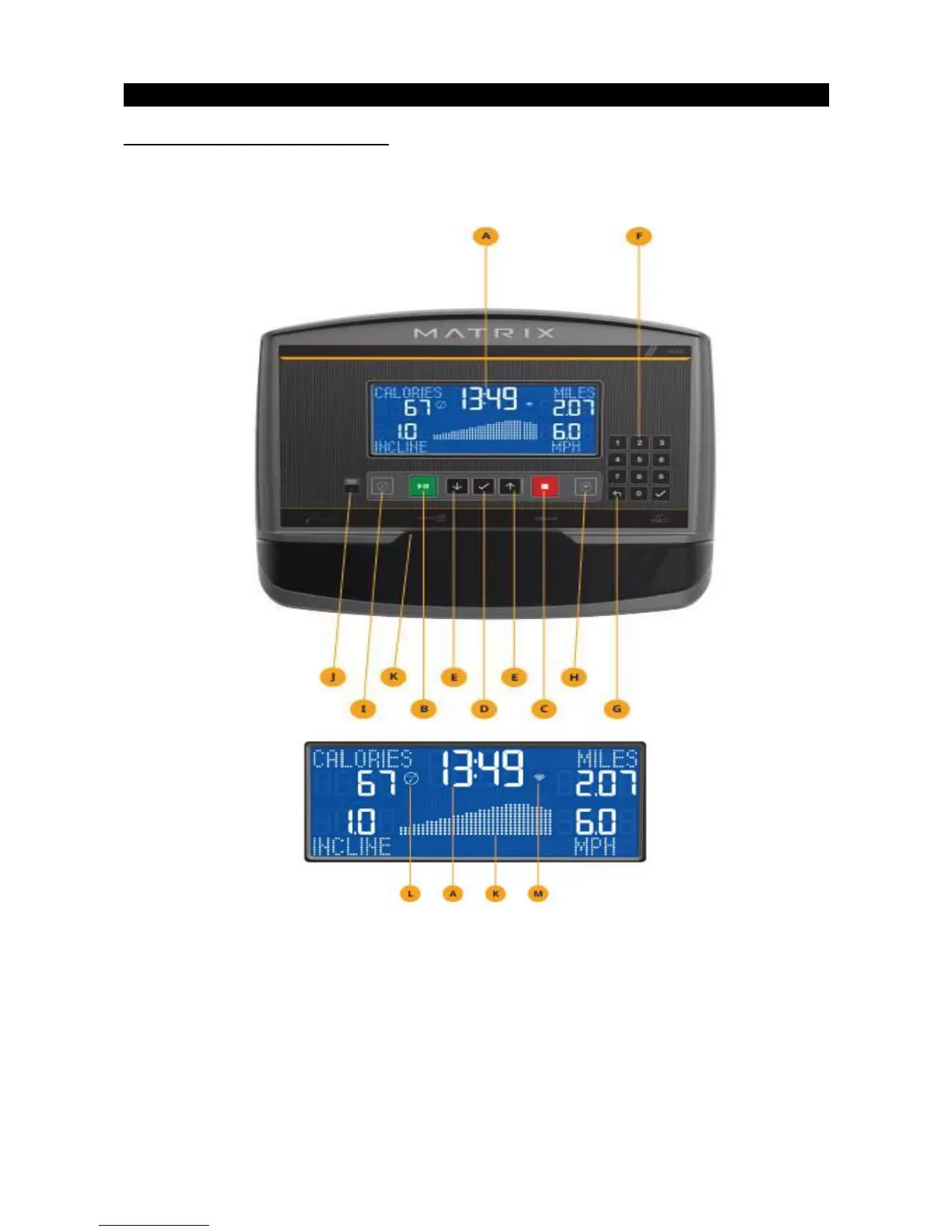

2.1 XR CONSOLE DESCRPITON
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be
removed before use.
A) LCD DISPLAY WINDOW: Displays workout feedback, program profile and more.
B) GO/PAUSE : Press to start, pause or resume your workout.
C) STOP : Press to stop your workout. Press and hold for 3 seconds to reset console.
D) ENTER : Confirm each program setting. Press to change display feedback during workout.
Press and hold to scan.
E) ARROWS : used to adjust program settings.
