Series Configuration Guide
10/48

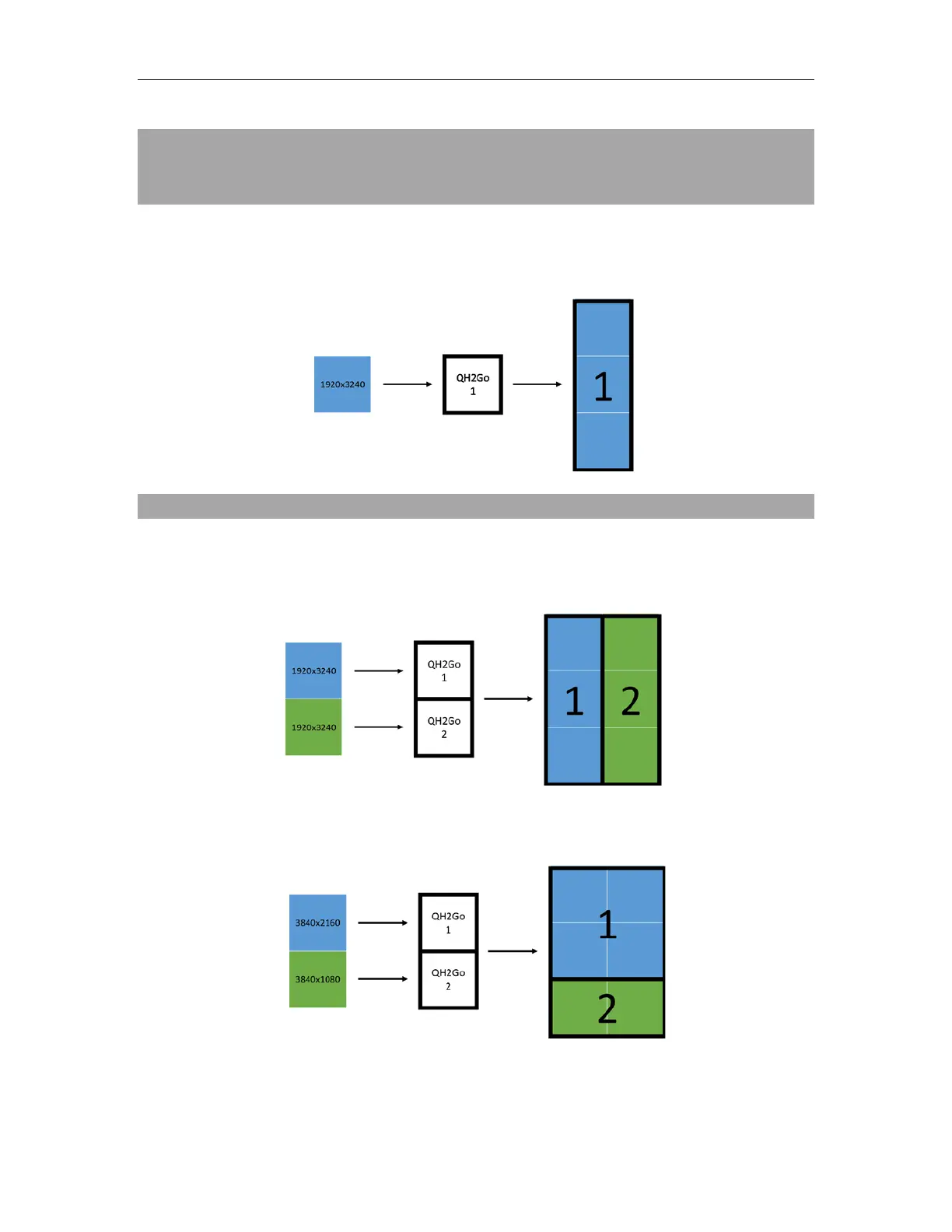

x3 Configurations
1x3 configuration
For a 1x3 configuration, possible setups include:
 1x QuadHead2Go unit
 1x 1920x3240 outputs from the GPU (as input to the QuadHead2Go unit)
2x3 configuration
For a 2x3 configuration, possible setups include:
 2x QuadHead2Go units
 2x 1920x3240 outputs from the GPU (as inputs to the QuadHead2Go units)
 2x QuadHead2Go units
 1x 3840x2160 outputs from the GPU (as inputs to the QuadHead2Go units)
 1x 3840x1080 outputs from the GPU (as inputs to the QuadHead2Go units)
