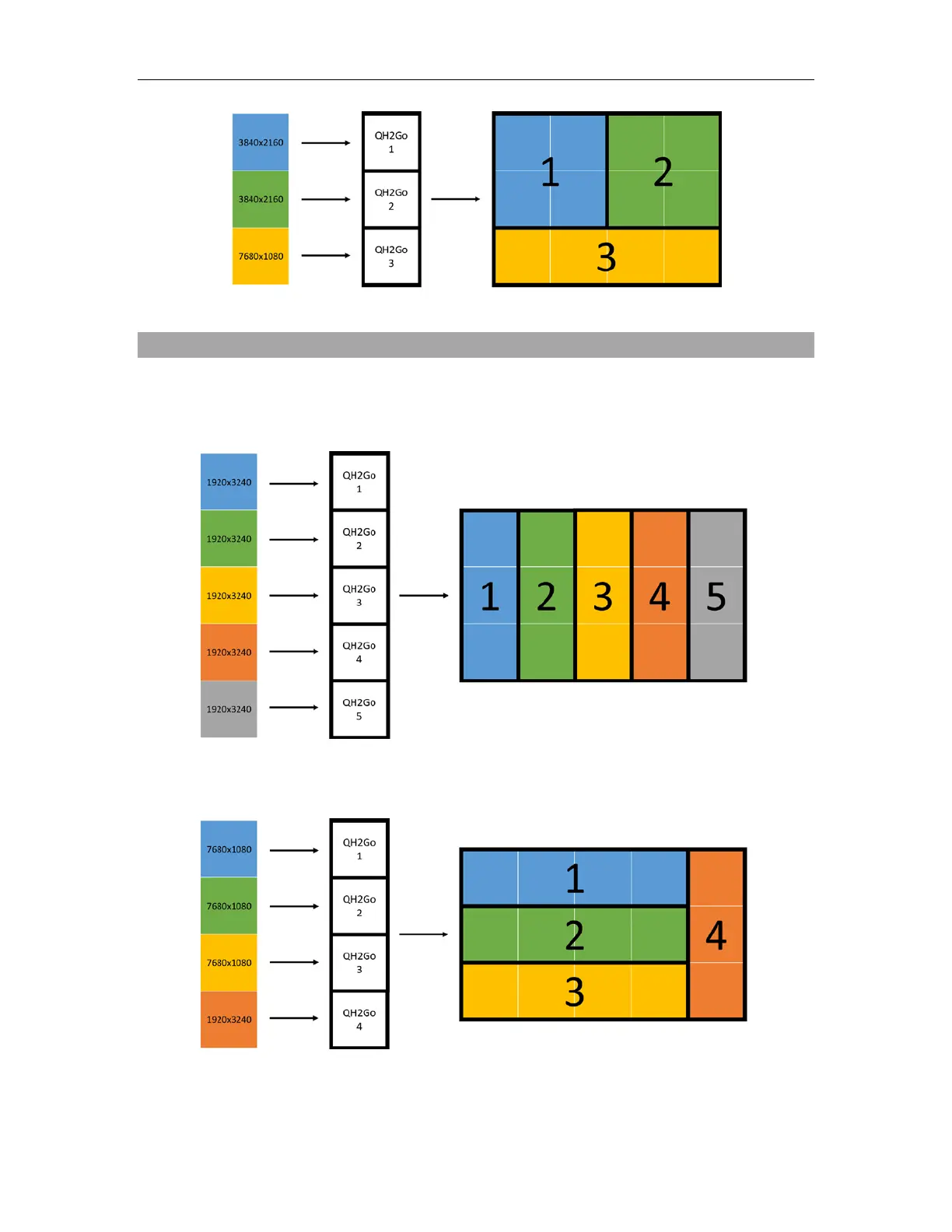

5x3 configuration
For a 5x3 configuration, possible setups include:
 5x QuadHead2Go units
 5x 1920x3240 outputs from the GPU (as inputs to the QuadHead2Go units)
 4x QuadHead2Go units
 3x 7680x1080 outputs from the GPU (as inputs to the QuadHead2Go units)
 1x 1920x3240 output from the GPU (as input to the QuadHead2Go unit)
 4x QuadHead2Go units
 2x 3840x2160 outputs from the GPU (as inputs to the QuadHead2Go units)
 1x 7680x1080 output from the GPU (as input to the QuadHead2Go unit)
