Mattei BLADE 4 - Component Location and Data

3.08
TI013G0008
Description of machine

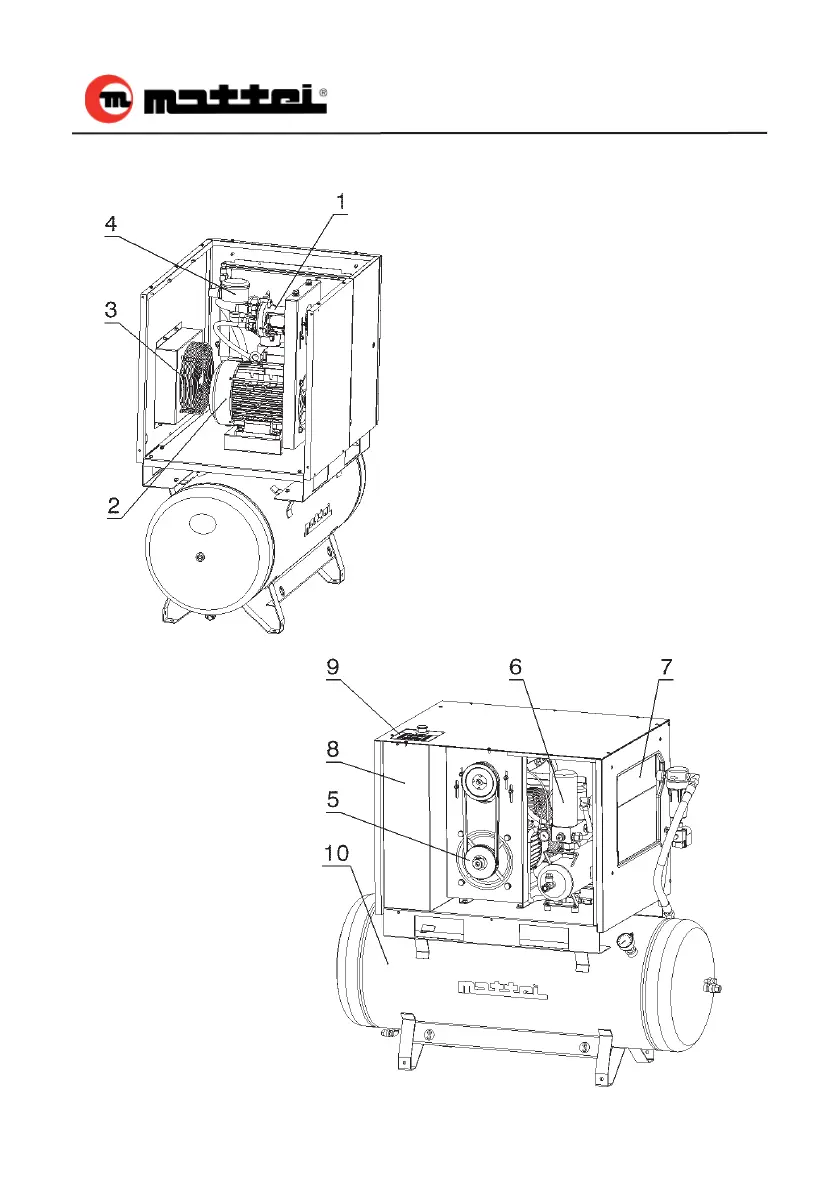

Location of main components
1 - Compressor
2 - Main motor
3 - Fan
4 - Suction fi lter
5 - Transmission
6 - Oil Separator
7 - Radiator
8 - Electrical cabin
9 - MAESTRTO XB controller
10 - Receiver
(model “BLADE-TM” only)
