7
Calder Brothers Corp
V1.0
Serial Number Range:
848-S-56TCG9Y2*03848 to ________________
Page 7
Model: 1560 Paver

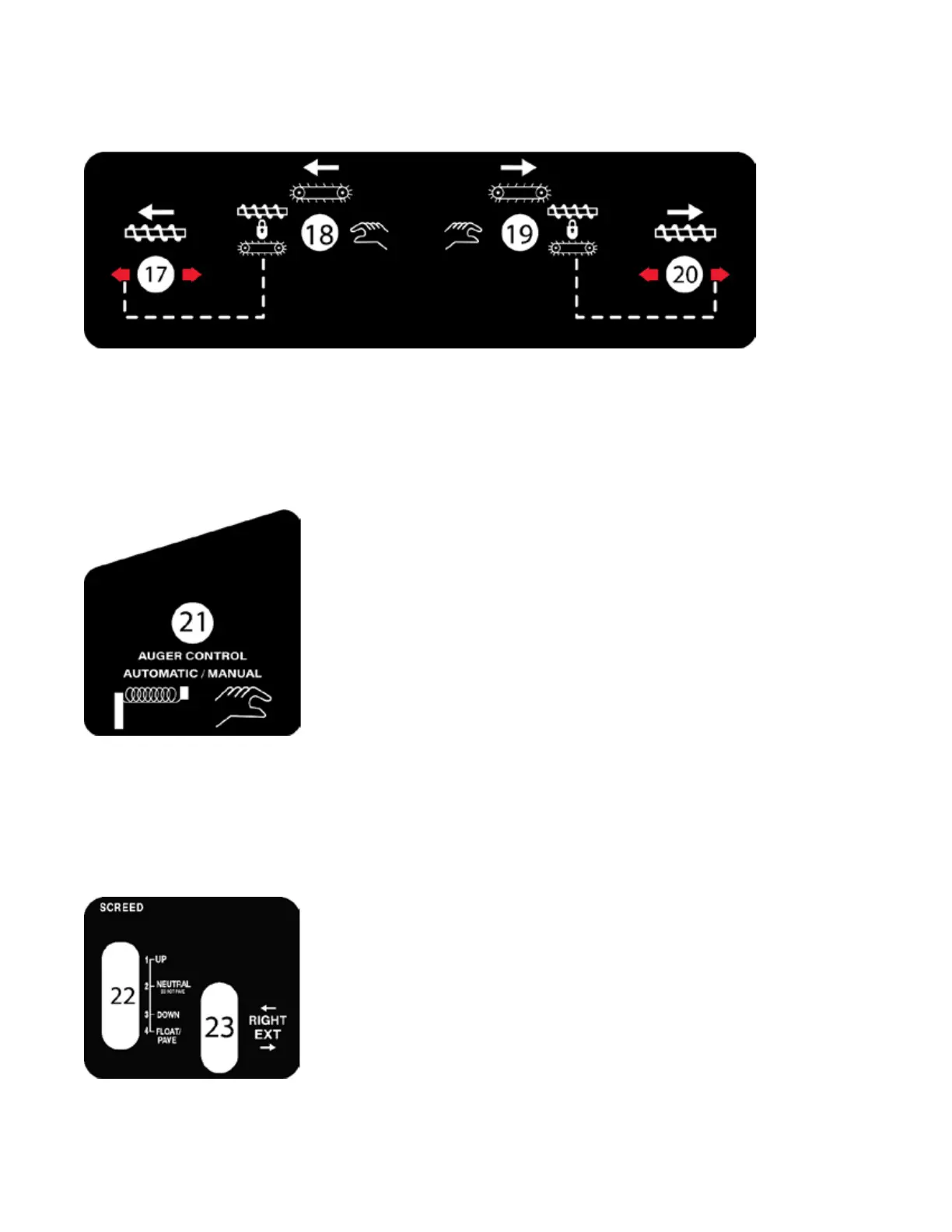

17. Left Auger Direction In/Out
18. Left Conveyor Feed AUTO/Manual
19. Right Conveyor Feed AUTO/Manual
20. Right Auger Direction In/Out
21. Auger Control AUTO/Manual. Auto uses the sonic sensors to determine when to
turn on the feed system (augers and conveyors). The feed system will turn o once
it reaches the desired head of material.
22. Screed Lever Up/Down. Push the Lever forward to raise the screed, pull the lever
down to lower the screed. To oat the screed pull the lever down passed the detent,
