Mauldin 1560 - Extension Bottom Setup

18
Calder Brothers Corp
V1.0
Serial Number Range:
848-S-56TCG9Y2*03848 to _____________
Page 18
Model: 1560 Paver
R
MAULDIN
PAVING PRODUCTS
Calder Brothers Corporation
4.0°

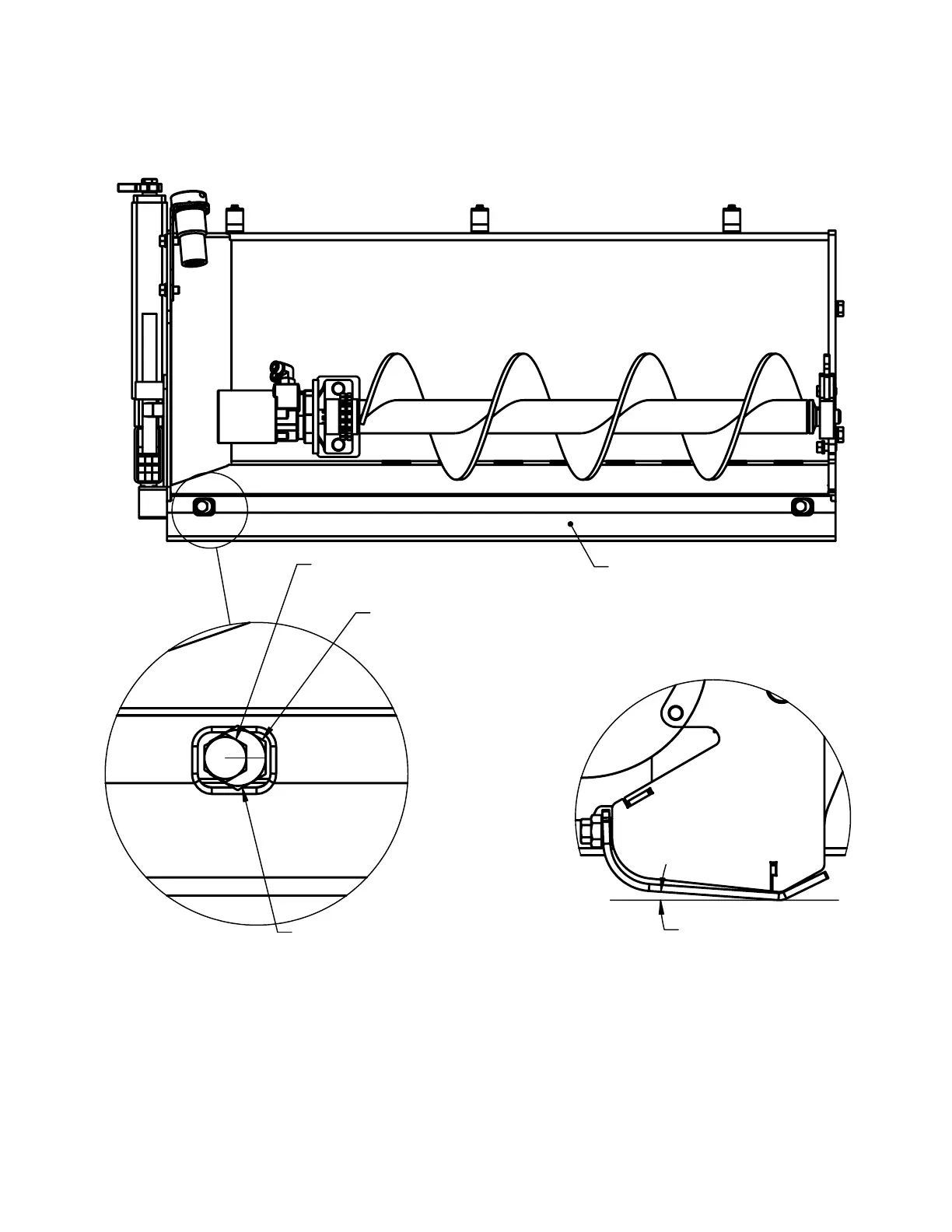

END VIEW OF EXTENSION BOTTOM
(ATTACK ANGLE SHOWN IS RECOMMENDED
Extension Adjustable Bottom
Date: 11-21-13
Model: Freedom 14 Extension Setup
Page: 1 of 3
NOTES:
1.If adjusting the attack angle of the extension screeding plate is required, replace P/N 113-209801
with P/N 113-209800 adjusting cam nut. See the following two (2) pages for instructions to raise
or lower the extension screeding plate profile to obtain seemless mat paving performance.
HINGED EXTENSION SCREEDING
PLATE, P/N 112-209830.
SHOWN IS RECOMMENDED INITIAL SETTING)
DETAIL OF ADJUSTING CAM NUT INITIAL SETTING)
(POSITION OF ADJUSTING CAM NUT
ADJUSTING CAM NUT.
P/N 113-209800
(OR 3:00 O'CLOCK POSITION).
THE HORIZONTAL POSITION
RECOMMENDED INITIALSETTING
FOR BOLT ON CAM NUT IS IN
1/2-13, 1.5" LONG BOLT
WITH LOCK WASHER.
Extension Bottom Setup
