Mauldin 1560 - Screed and Extension Adjustment; Initial Screed Adjustment Settings

17
Calder Brothers Corp
V1.0
Serial Number Range:
848-S-56TCG9Y2*03848 to ________________
Page 17
Model: 1560 Paver
R
PAVING PRODUCTS
MAULDIN
Calder Brothers Corporation
B

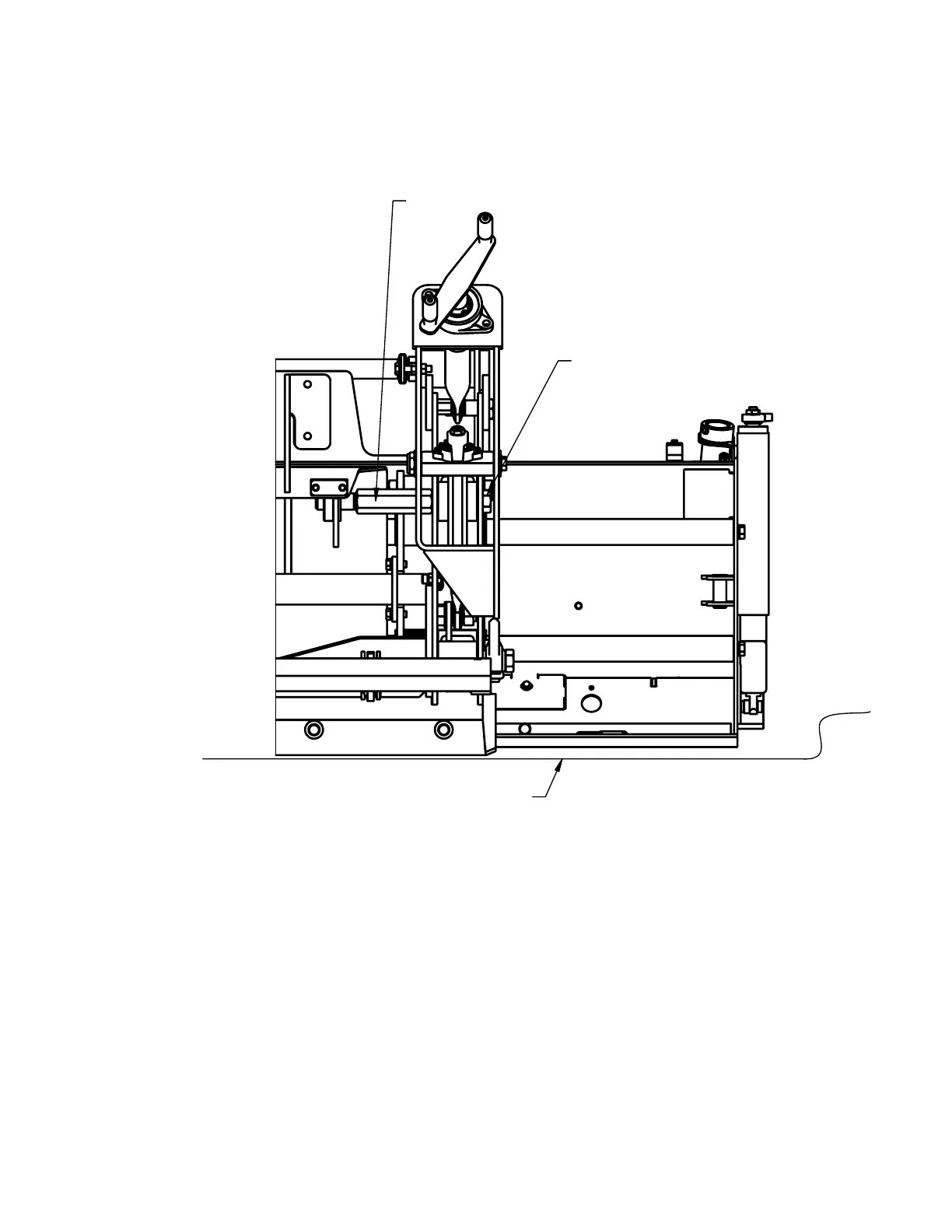

EXTENSION TURNBUCKLE LOCK BOLT
EXTENSION SLOPE TURNBUCKLE
STRING
NOTES:
POSITION EXTENSION AT HALF WAY OUT POSITION. 1.
ADJUSTMENT INSTRUCTIONS:
RUN BOTH LEFT AND RIGHT EXTENSION OUT TO THE HALF OUT POSITION. 1.
USE A STRING AND ALIGN WITH TRAILING EDGE OF EXTENSION SCREED PLATE BOTTOM. 2.
LOOSEN EXTENSION TURNBUCKLE LOCK BOLT. 3.
ADJUST THE EXTENSTION SLOPE TURNBUCKLE TO MAKE THE EXTENSION SCREED PLATE 4.
FLAT WITH THE STRING.
Model: Freedom 14 Main Screed Setup
Initial Screed Adjustment Settings
Date: 08-01-19
Page: 2 of 2
