19
Calder Brothers Corp
V1.0
Serial Number Range:
848-S-56TCG9Y2*03848 to ________________
Page 19
Model: 1560 Paver
R
MAULDIN
PAVING PRODUCTS
Calder Brothers Corporation
75.0° UP
(12:30 POSITION)
6.0°
If the extensions are lower than the main screed at full paving widths, then increase the
NOTES:
extension attack angle, see table below.
1.
Desired Attack Angle Angle from Horizontal O'Clock Position
4.0 (Initial Setting) 90 (Initial Setting) 3:00 (Initial Setting)
4.5 15 UP 2:30
5.0 30 UP 2:00
5.5 45 UP 1:30
6.0 75 UP 12:30
Model: Freedom 14 Extension Setup
Extension Adjustable Bottom
Date: 11-21-13
Page: 2 of 3
P/N 113-209800
SHOWN IS FOR MAXIMUM ATTACK ANGLE)
ADJUSTING CAM NUT.

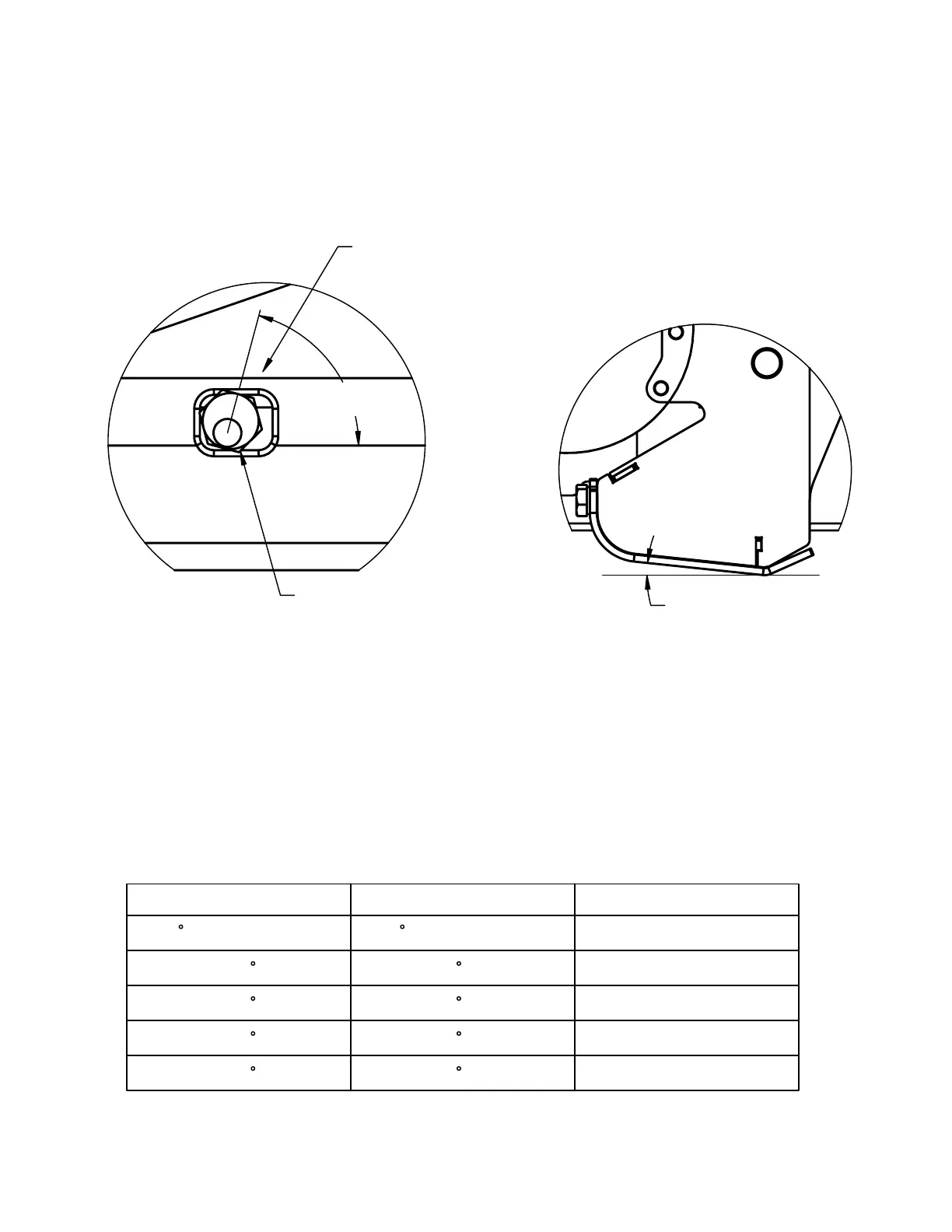

DETAIL OF ADJUSTING NUT
(POSITION OF ADJUSTING CAM NUT
BOLT NOT SHOWN
FOR CLARITY.
END VIEW OF EXTENSION BOTTOM
(ATTACK ANGLE SHOWN IS MAXIMUM)
