20
Calder Brothers Corp
V1.0
Serial Number Range:
848-S-56TCG9Y2*03848 to _____________
Page 20
Model: 1560 Paver
R
MAULDIN
PAVING PRODUCTS
Calder Brothers Corporation
75.0° DOWN
(5:30 POSITION)
2.0°
SHOWN IS FOR MINIMUM ATTACK ANGLE)
(POSITION OF ADJUSTING CAM NUT

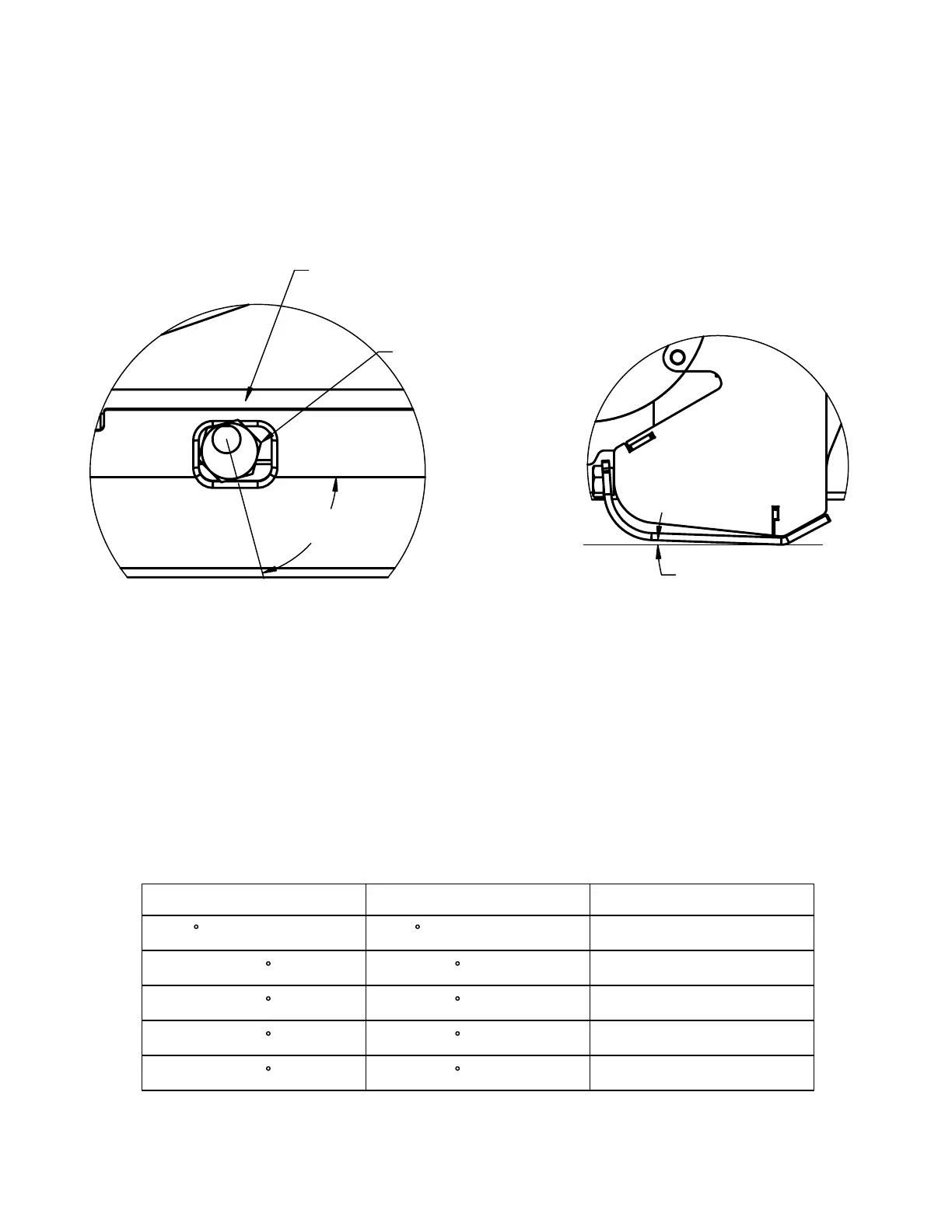

DETAIL OF ADJUSTING CAM NUT
FOR CLARITY.
BOLT NOT SHOWN
P/N 113-209800
ADJUSTING CAM NUT.
Model: Freedom 14 Extension Setup
Extension Adjustable Bottom
Date: 11-21-13
Page: 3 of 3
END VIEW OF EXTENSION BOTTOM
(ATTACK ANGLE SHOWN IS MINIMUM)
NOTES:
If the extensions are higher than the main screed at full paving widths, then decrease the 1.
extension attack angle, see table below.
Desired Attack Angle Angle from Horizontal O'Clock Position
4.0 (Initial Setting) 90 (Initial Setting) 3:00 (Initial Setting)
3.5 15 DOWN 3:30
3.0
30 DOWN 4:00
2.5
45 DOWN 4:30
2.0 75 DOWN 5:30
