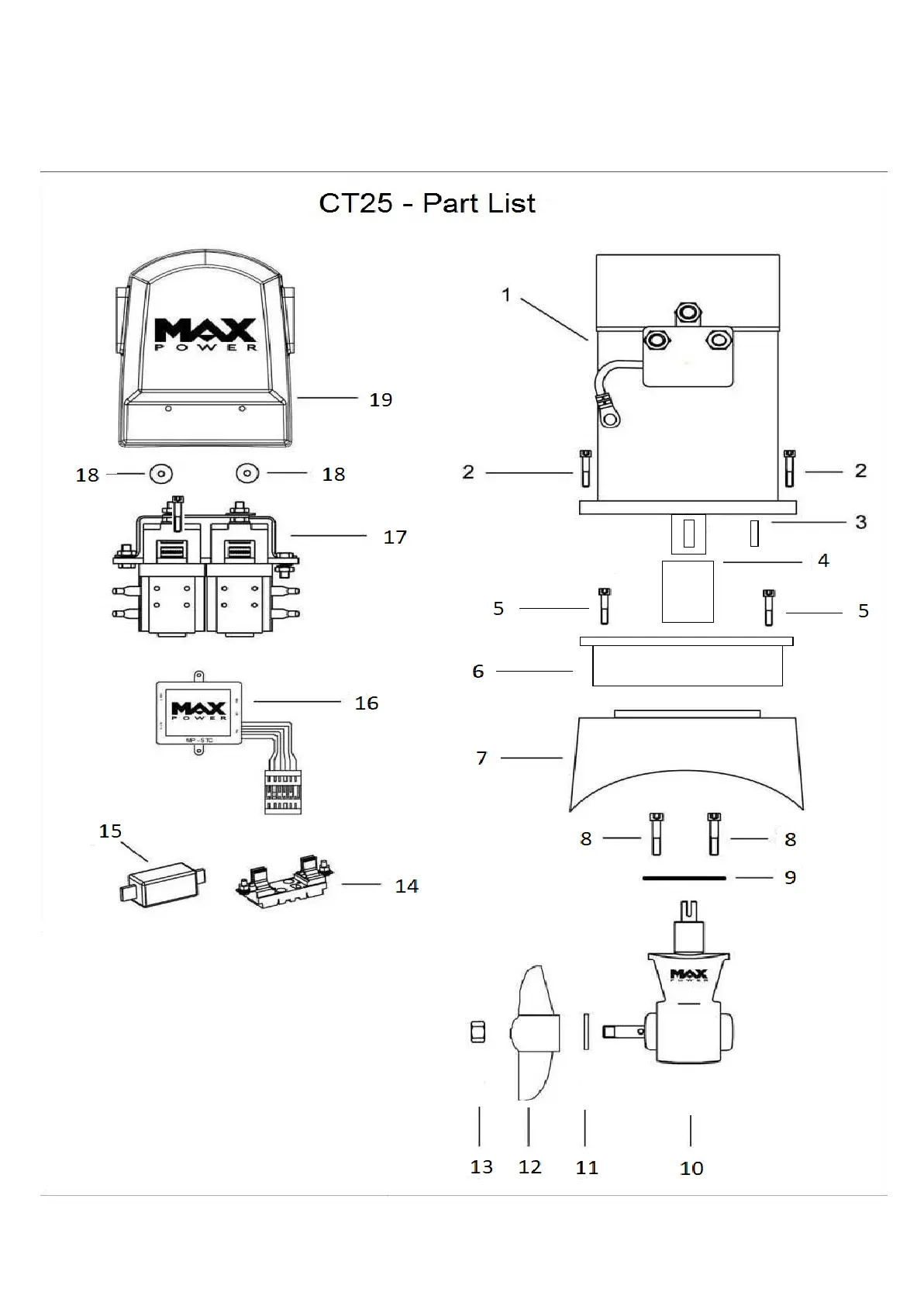

Page 14 (Spare Parts Diagram)

MAX power CT25 - Spare Parts Diagram

17 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

Manual CT25

Last update: February 2018

13

www

.max-power.com

21. SPARE PARTS

DIAGRAM

Table of Contents

Table of Contents2
General Installation Guidelines3
Tunnel4
Composite Motor Support and Drive Leg5
Electric Motor6
Propellers6
Protection Grills6
Electrical Installation6
Main Power Fuse7
Batteries7
Electronic Control Box8
Control Panel and Thruster Control Box Functions8
Control Panel Installation9
Tests10
Electrical Measurements10
Operation10
Alarms or Thermal Switch-Off11
Safety11
Maintenance11
Electrical Installation Diagram12
Relay and Control Box Connections Diagram13
Spare Parts Diagram14
Spare Parts List15
Troubleshooting Guide16
Worldwide Distribution Network16
Warranty Coverage17
