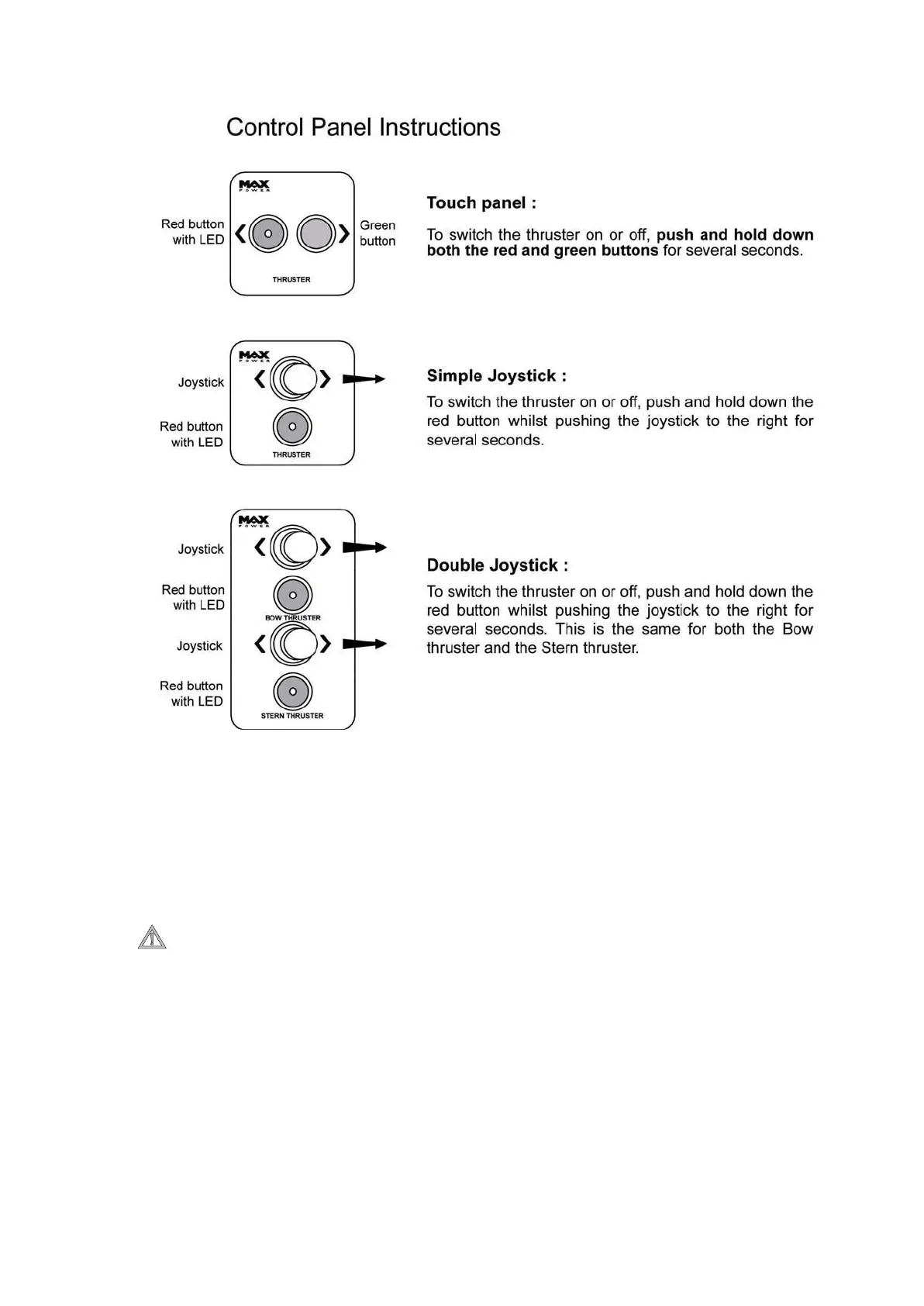

12. CONTROL PANEL INSTALLATION
Control panels should be protected from the natural elements while the thruster is not in
use.
Install the control panel(s) in easily accessible positions, without obstructing the main
engine and/or steering controls.
When fixing the panel with the stainless steel screws, make sure to install the pre-cut
rubber seal, as supplied with the panel, ensuring that it is in the correct place.
Only when totally finished and satisfied with the wiring and positioning of the unit,
clip-on the face panel/cover.
Please note that panels are only fully waterproof from their front side, if installed correctly.
However the area behind the dashboard should be kept dry to avoid the risk of
oxidization of the cable connector contacts.
For full control panel installation instructions, please refer to the "Installation
Guidelines" as supplied with each control panel.
www.max-power.com 8
