release handle clamp
3
IMPORTANT: Tighten the adjustment bolt until
NO SLIPPAGE occurs when handle is in the
SECURE HORIZONTAL position.
NOTE: Limit rings that have been previously
set will automatically re-align the gate’s open
and close position after release handle clamp
has been re-attached and secured.
No re-adjustment is necessary.
Adjustment
Bolt
factory set bolt
DO NOT adjust
a
djust
b
olt
f
or firm grip
Adjustment:
IMPORTANT: The arm MUST NOT slip when
the gate is cycling or the gate OPEN and
CLOSE limit positions will NOT be LEARNED.
Gate speed will remain slow if gate positions
are NOT learned.
IMPORTANT: Handle MUST be
HORIZONTAL when FIRMLY in
secure position.
NO
YES
Arm

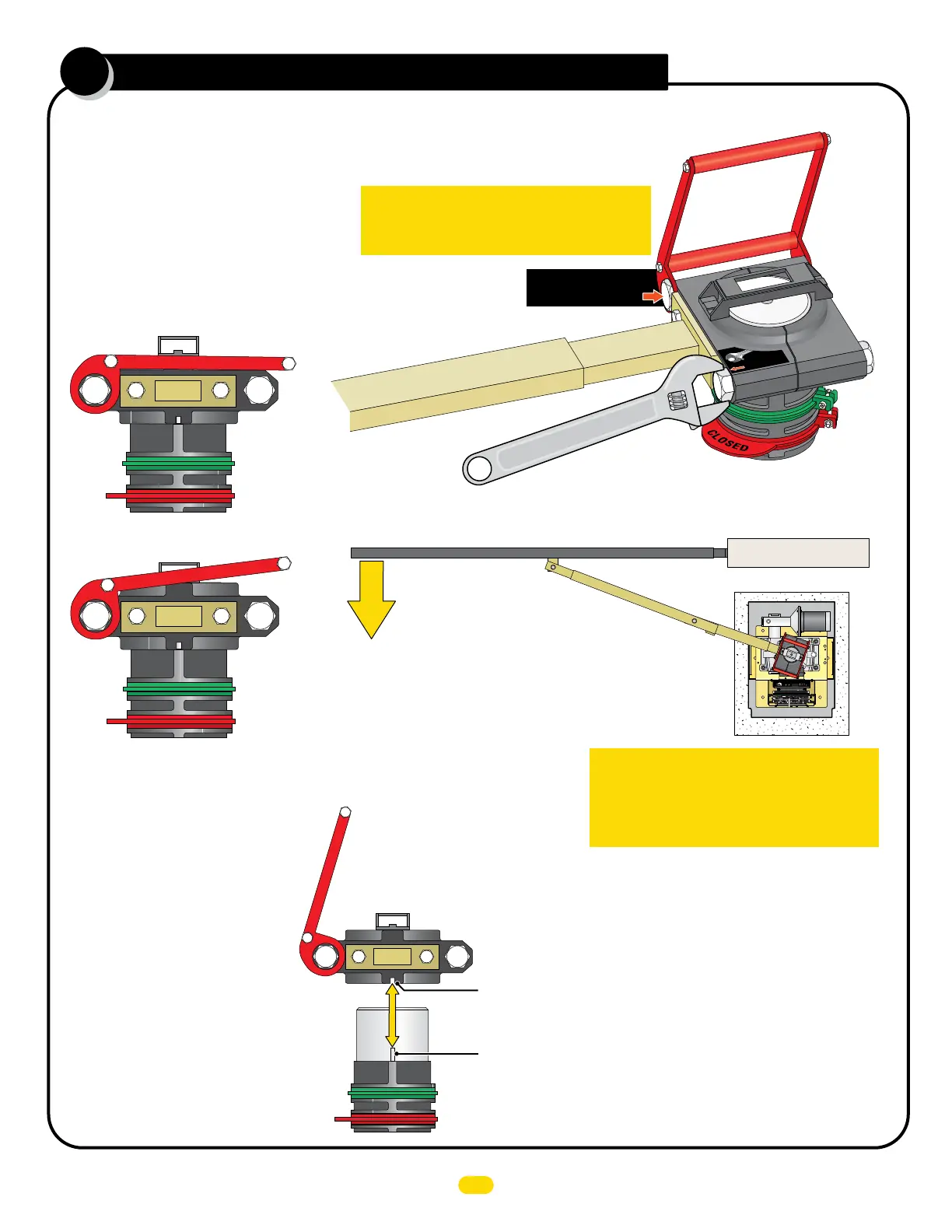

Re-Attach Arm to Operator:
Limit Pin
Limit Rings
Slot
Release Handle Clamp
Limit pin MUST fit into slot in
bottom of release handle clamp
directly under the arm when
re-attaching arm to operator.
Handle in release position
Test for Arm Slippage: When Release Handle Clamp is
in the SECURE HORIZONTAL position, Pull the end of
gate. NO slippage should occur. If it does, re-adjust bolt.
POWER
IN
POWER/SOLAR
IN
BATTERY
IN
www.max.us.com
Made in USA
BATTERY
PACK
TO MOTOR
CONTROLLER
PhotoCellEdge
UL Entrap
1
2
Limit SW
ON-LINE
MATRIX
JOG
LEFT
JOG
RIGHT
Jog LT
Jog RT
GND
Edge 1
Edge 2
Cell
ERD
Motor
OverLoad
POWER
MC-200
Motor Controller
16
15
14
13
12
3
4
5
MAX
LED ON
Edge
Sensitivity
ERD
CLOSED
LIMIT
OPEN
LIMIT
24V
GND
UL ALARM 12V
ALARM RET
RESET
GND
GATE
TAMPER
MAG
LOCK
OPEN
RIGHT
OPEN
LEFT
MAGLOCK
DELAY
PRIMARY
GATE
SAFETYCENTEREXIT
OPEN
MAX
GATE SPEED
STOPCLOSE
ANTI
TAILGATE
CLOSE TIMER
POSITION
RECORDER
ID
PLUG
AUTOMATIC OPEN/CLOSE CONTROLS
BATTERY
BACK-UP MODE
MATRIX 1
PHOTOCELL
EDGE 1
EDGE 2
ID PLUG
ERROR
OPEN
COM
CLOSE
Tamper NO
COM
GND
Tamper IN
OFF
OFFON
EXIT
PARTIAL
OPEN
OBD PORT
BLACK BOX
MOTOR MOTION
CENTER
REVERSE SENSITIVITY
MOTOR OVERLOAD
NO LIMIT SWITCH /
CLAMP SLIPPING
MIN
MAX
12VDC
GND
24VDC
GND
MAX
MIN
OFF
SAFETY
LEAVE
OPEN
LEAVE
CLOSED
MADE in USA
OPEN
1 TIME
2Sec1.5Sec
COM
NC
BATTERY
IN USE
POWER
GATE
STATUS
MOTOR
ON-LINE
LIMIT
SWITCH
ON-LINE
(+)
GND
(-)
PRIMARY
GATE
(+)
GND
(-)
SEC
GATE
UL
ENTRAP
PHOTOCELL
GND
STRIKE
GND
KEYPAD / RDR
GND
FIRE DEPT
GND
MAX OPEN
GND
RADIO SIG.
RADIO GND
OPEN
STOP
CLOSE
COM
GATE DISABLE
Pull
3
