7

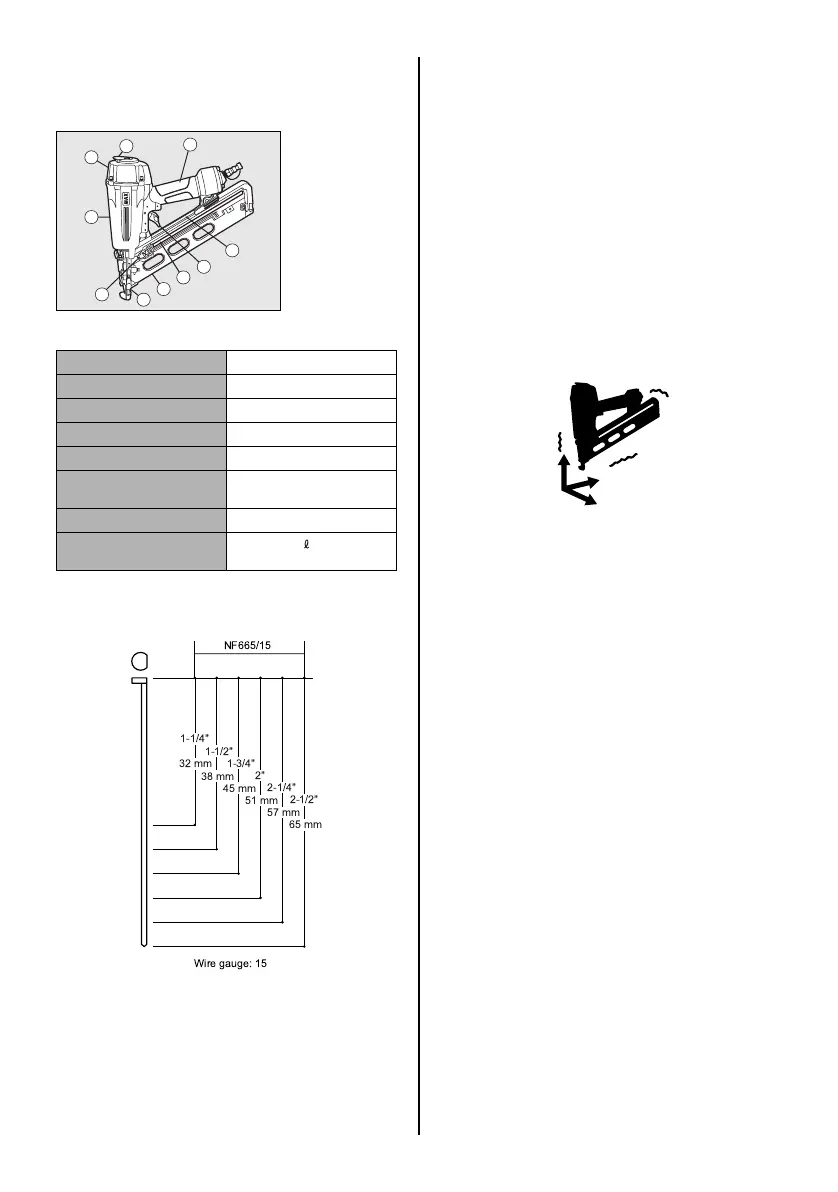

3. SPECIFICATIONS AND TECHNI-
CAL DATA
1. NAME OF PARTS
2. TOOL SPECIFICATIONS
∗ The machine has been compactly designed in order to im-
prove operating weight balance.
3. BRAD NAIL SPECIFICATIONS
TOOL AIR FITTINGS:
This tool uses a 1/4" N.P.T. male plug. The inside diameter
should be .28" (7mm) or larger. The fitting must be capable of dis-
charging tool air pressure when disconnected from the air supply.
RECOMMENDED OPERATING PRESSURE:
70 to 100 p.s.i. (5 to 7 bar). Select the operating air pressure with-
in this range for best fastener performance.
DO NOT EXCEED 120 p.s.i. (8.3 bar).
4. TECHNICAL DATA
1 NOISE
A-weighted single-event sound power level
NF665/15------ LWA, 85.5 dB
A-weighted single-event emission sound pressure level at
work station
NF665/15------ LpA, 79.4 dB
These values are determined and documented in accord-
ance to EN12549 : 1999.
2 VIBRATION
Vibration characteristic value
= 3.2 m/s
2
These values are determined and documented in accord-
ance with ISO 8662-11.
This value is a tool-related characteristic value and does not
represent the influence to the hand-arm-system when using
the tool. An influence to the hand-arm-system when using
the tool will, for example, depend on the gripping force, the
contact pressure force, the working direction, the adjust-
ment of mains supply, the workpiece, the workpiece sup-
port.
5. APPLICATIONS
∗ Door and window casings
∗ Plywood, decorative boards, and other interior finish works
∗ Panel assembly and moldings
∗ Sub flooring
∗ Furniture assembly including drawer assembly, case back
nailing, blind pinning, and other finishing works
∗ Cabinet assembly
1 Frame
2 Cylinder Cap
3 Exhaust Port
4 Magazine
5 Slider Unit
6 Trigger
7 Grip
8 Warning Label
9 Outlet
0 Pusher
PRODUCT NO. NF665/15
HEIGHT 12-5/8" (322 mm)
WIDTH 3-11/16" (94 mm)
LENGTH 12-5/8" (322 mm)
WEIGHT 3.97 lbs (1.8 kg)
RECOMMENDED
OPERATING PRESSURE
70 to 100 p.s.i.
(5 to 7 bar)
LOADING CAPACITY 106 Nails
AIR CONSUMPTION 0.096 ft
3
(2.7 ) at 7 bar
operating pressure
9
10
6
5
4
2
1
7
3
8
