Max RB515 User Manual

1. SPECIFICATIONS AND TECHNICAL DATA

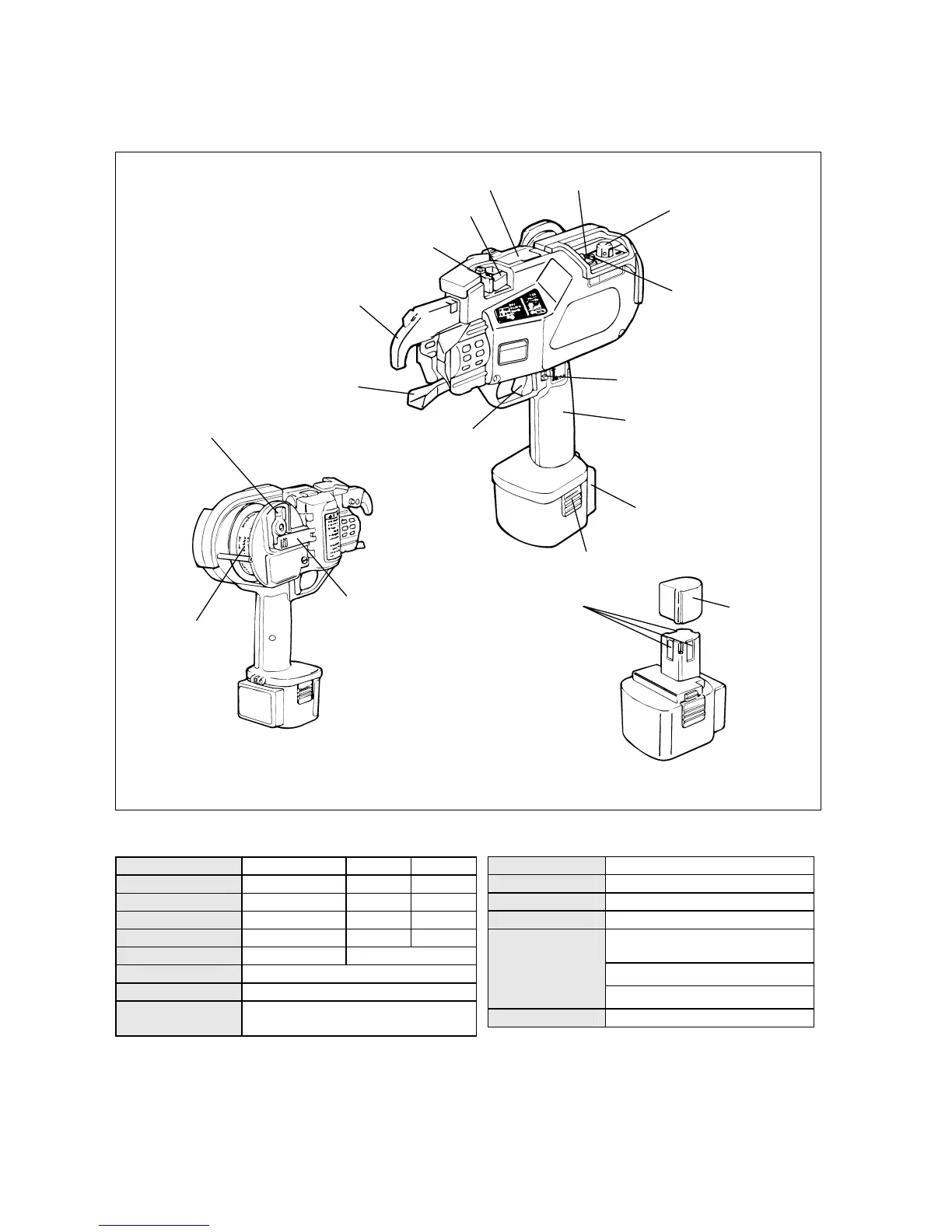

1. NAME OF PARTS
Arm
Main switch
LED
Pack cap
Tie-Wire
Reel holder
Curl guide
Latch
Grip
Trigger
Trigger lock
Reel stopper
Torque and wrap dial (RB515)
Torque dial (RB395)
Feed dial (RB215)
Release stopper
Release lever
Window
Battery pack (JP409)
Terminal
Battery pack (JP409)
2. TOOL SPECIFICATIONS 3. WIRE SPECIFICATIONS
NAME MAX TIE-WIRE
MODEL
TW897
DIAMETER
0.8 mm
LENGTH
95 m/coil
RB515 (3 wraps / tie) Approx. 90 ties/coil
RB515 (4 wraps / tie) Approx. 75 ties/coil
RB395 Approx. 120 ties/coil
TIES PER COIL
RB215 Approx. 180～210 ties/coil
TIES PER CHARGE
Approx. 360 ties/charge
PRODUCT NO. RB515 RB395 RB215
WEIGHT
2.4 kg 2.4 kg 2.4 kg
HEIGHT
295 mm 296 mm 296 mm
WIDTH
102 mm 103 mm 103 mm
LENGTH
306 mm 290 mm 276 mm
WRAPS PER TIE
3 or 4 wraps/tie 3 wraps / tie
BATTERY
Ni-Cd 9.6V (JP409)
RECHARGE TIME
25 minutes
ACCESSORIES
Battery pack JP409 (2pcs.)
Carrying case
BATTERY CHARGER:
Use only an authorized Battery charger, Panasonic Charger EY0230B.
4
