25

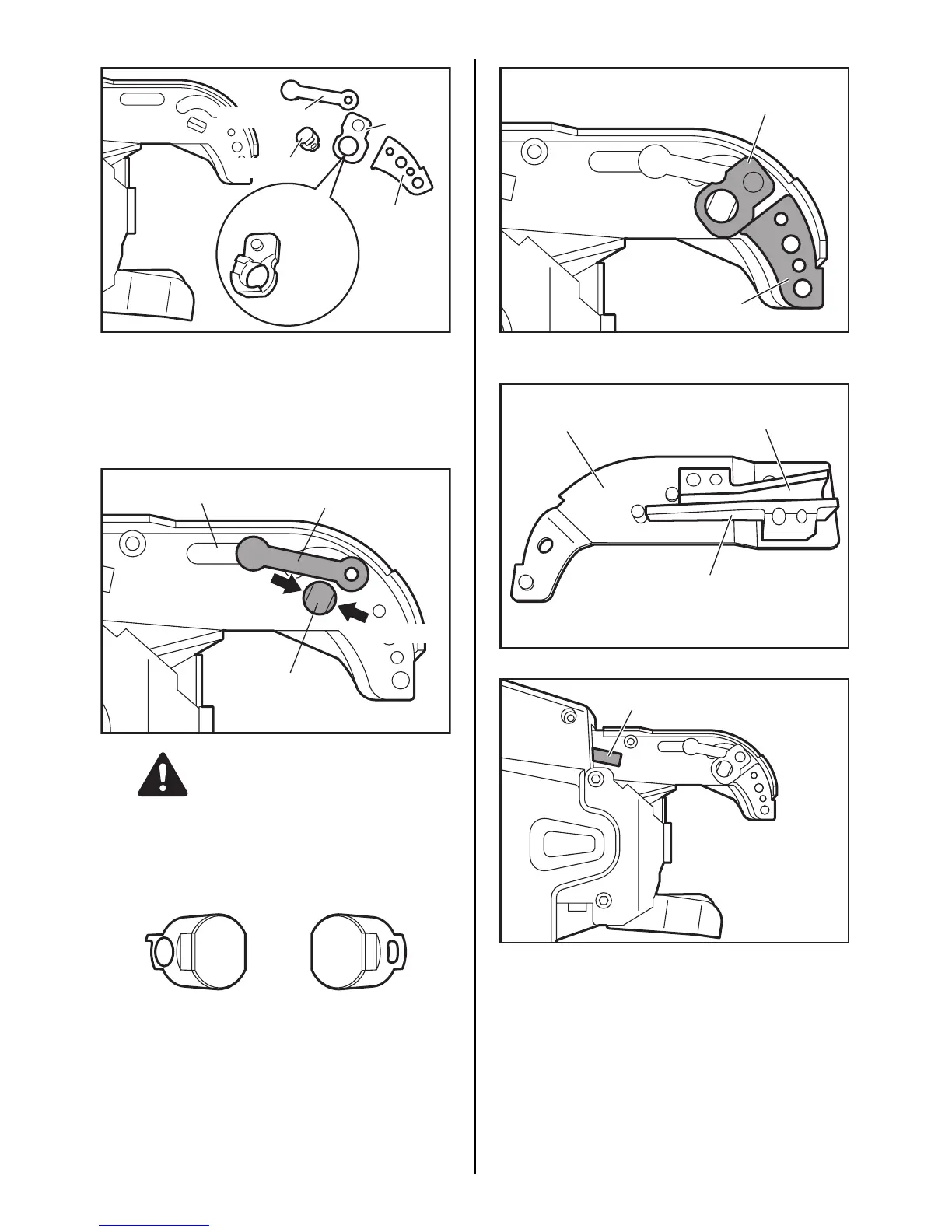

3. Remove the cutter and the fixed cutter,
and clean them. (The removable parts are
the cutter, fixed cutter, wire guide A and
cutter plate unit.)
Assembling
Assemble the fixed cutter so that the large hole
is set to the rear side and the small hole (long
hole) is set to the top side.
4. Put the pin of the cutter plate unit through
the cutter con rod hole and assemble the
fixed cutter to the unit.
5. Fit the cutter and assemble wire guide A.
6. Align the groove of wire guide B attached
to arm B with the pipe, and assemble arm
B.
Reverse side
of the cutter
Integrat-
ed unit of
the cutter
and pin
Cutter
Wire guide A
Fixed cutter
Cutter plate unit
Cutter con rod hole
Large hole
Small hole
Cutter plate unit
Fixed cutter
CAUTION
Rear side Top side
Wire guide A
Cutter
Groove
Arm B
Wire guide B
Pipe
