TEST OPERATION
q
Adjust the air pressure at 70 p.s.i. (5 bar) and connect the air supply.
w
Without touching the trigger, depress the contact arm against the work-piece.
Pull the trigger. (The tool must fire the fastener.)
e
With the tool off the work-piece, pull the trigger.
Then depress the contact arm against the work-piece.
(The tool must fire the fastener.)
r
Adjust the air pressure as much as the lowest possible according to the diameters and length of
fastener and the hardness of work-piece.
DRIVING FASTENERS
NOTE: This tool is shipped with SINGLE ACTUATION selected.
Switching SINGLE ACTUATION to CONTACT ACTUATION with ANTI-DOUBLE
FIRE MECHANISM
w

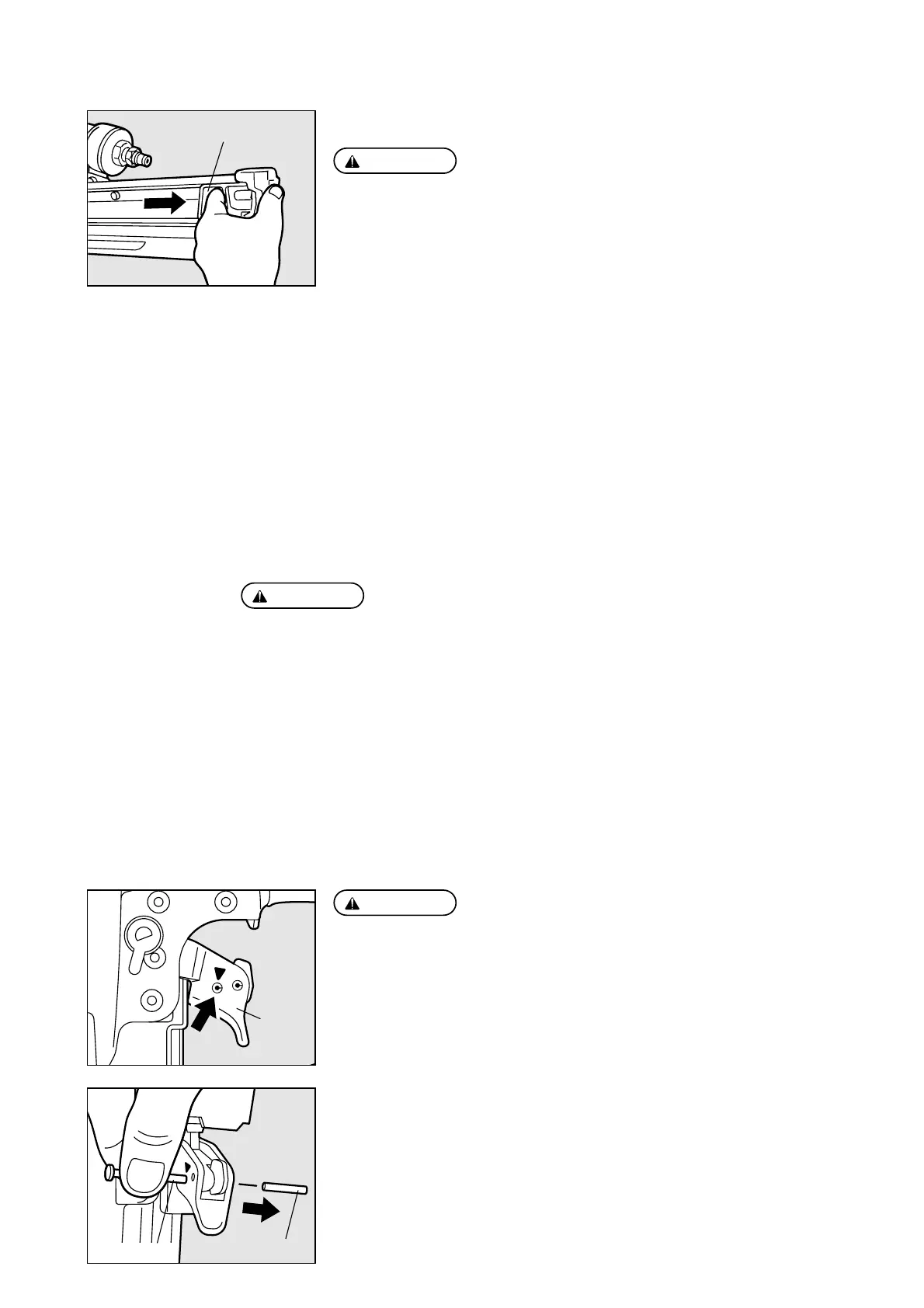

Pull the Pusher as far as the rear end of the magazine and release it gently.
Pusher
●
To avoid double firing or accidental firing, pull the trigger rapidly and firmly.
●
SINGLE ACTUATION is different from SEQUENTIAL TRIP.
●
The tool with SINGLE ACTUATION drives a nail each time both when depressing the Contact
Arm while keeping the Trigger pulled, and when pullimg the Trigger and keeping it pulled after
the Contact Arm depressed.
WARNING:
SINGLE ACTUATION OPERATION
For SINGLE ACTUATION operation, keep the Trigger pulled and depress the Contact Arm against the
work surface, or depress the Contact Arm against the work surface and pull the Trigger and keep it
pulled. Tool cannot fire a second nail until the Trigger is released and tool can cycle.
q
Gently push out the Spring Pin which indicated with “ ▼ ” mark straight with the
accessory punch.
●
ALWAYS disconnect air supply before switching the triggering method.
WARNING:
Trigger
●
Abrupt release of the Pusher causes jamming of nails or dry-firing.
CAUTION:
Accessory punch
Spring Pin
