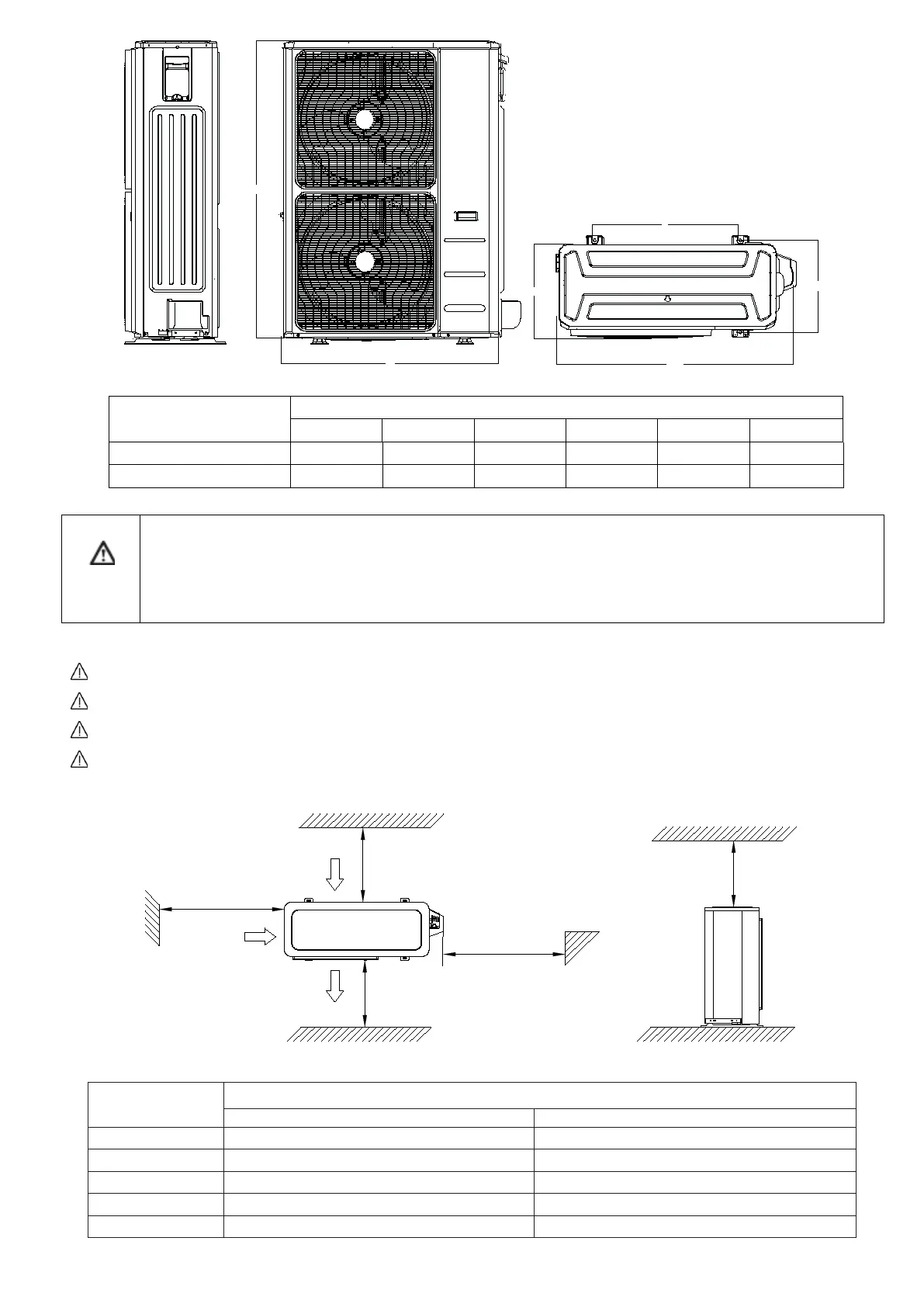

MAXA 3500 W - Page 25

H
A
B
W1
W
D
Models (W)
Unit: mm
W
D
H
W1
A
B
14000 W
952 415 1333 1045 634 404
17600 W
952
415
1333
1045
634
404
Warning
Use appropriate fixing tools to securely attach the outdoor unit to the floor. When the unit is mounted on a
wall or on a roof ensure that the supports are well secured and that they can withstand shocks and strong
wind. Do not install the outdoor unit in recesses or air vents. Ensure compliance with the technical spaces
around the unit.
10.2 Minimum technical spaces
The installation must be done by trained and qualified service personnel with reliability according to this manual.
Contact service center before installation to avoid the malfunction due to unprofessional installation.
When picking up and moving the units, you must be guidedby trained and qualified person.
Ensure that the recommende dspace is left around the appliance.
More than 60cm
More than 30cm
More than 60cm
More than 200cm
Air inlet
Air inlet
More than 30cm
Air outlet
(Wall or obstacle)
Maintain channel
10.3 Number of connectable indoor units
Outdoor units
(kW)
Number of connectable indoor units
Minimum number of connectable indoor units
Maximum number of connectable indoor units
5300 W
1
1
7100 W
1
1
10500 W
1
2 “TWIN”
14000 W
1
2 “TWIN”
17600 W
1
2 “TWIN”
24
