Maxcom MM818 User Manual

15

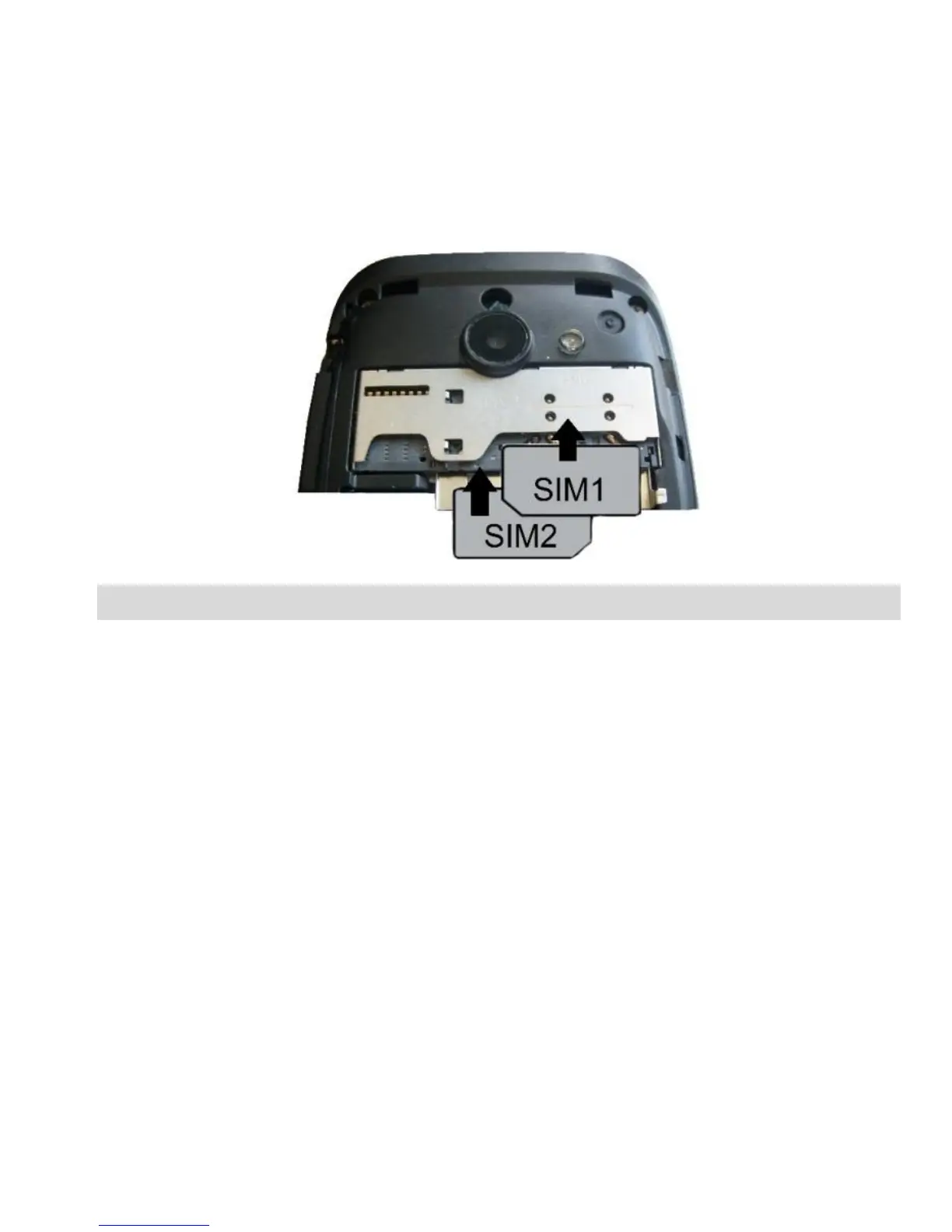

SIM 1: Insert the SIM1 card into the slot so that its gold contact
pins will face down, and the notch will be positioned to the left,
see the illustration below.
SIM 2: Gently slide out the SIM2 Card drawer, insert the card
into slot so that its gold contact pins will face up, and the notch
will be positioned to the right.
7.2 MEMORY CARD INSTALLATION
There is an option to install a Micro SD Memory Card of 32GB.
Never bend or scratch the memory card; never expose it to
static electricity or dust; never immerse the card in water.
1. First, switch off the phone and remove the battery,
2. Insert the memory card so that its gold contact pins will
face down, see the illustration below.
Be careful while using the memory card especially while
installing and uninstalling the card. Some memory cards must
be formatted on a PC before the first use.

Maxcom MM818 Specifications

General

Display type	TFT
Pixel density	167 ppi
Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Flash card support	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Rear camera resolution (numeric)	0.3 MP
Wi-Fi	-
Data network	GSM
SIM card capability	Dual SIM
2G bands (primary SIM)	900, 1800 MHz
Mobile network generation	2G
USB connector type	USB Type-C
Headphone connectivity	3.5 mm
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Talk time (2G)	5 h
Battery capacity	750 mAh
Standby time (2G)	300 h
Subscription type	No subscription
Product color	Black
Form factor	Clamshell
Phonebook capacity	150 entries
Personal info management (PIM)	SOS

Weight and Dimensions

Depth	20 mm
Width	48 mm
Height	93 mm
Weight	78 g
