4. Remove the protective socket cover from the load plate. Do not discard the protective socket
cover. Always replace the socket cover if the processor is removed from the socket (see
Figure 6, E).
5. Remove the processor from the protective processor cover. Hold the processor only at the
edges, being careful not to touch the bottom of the processor. Do not discard the protective
processor cover. Always replace the processor cover if the processor is removed from the
socket (see Figure 7).

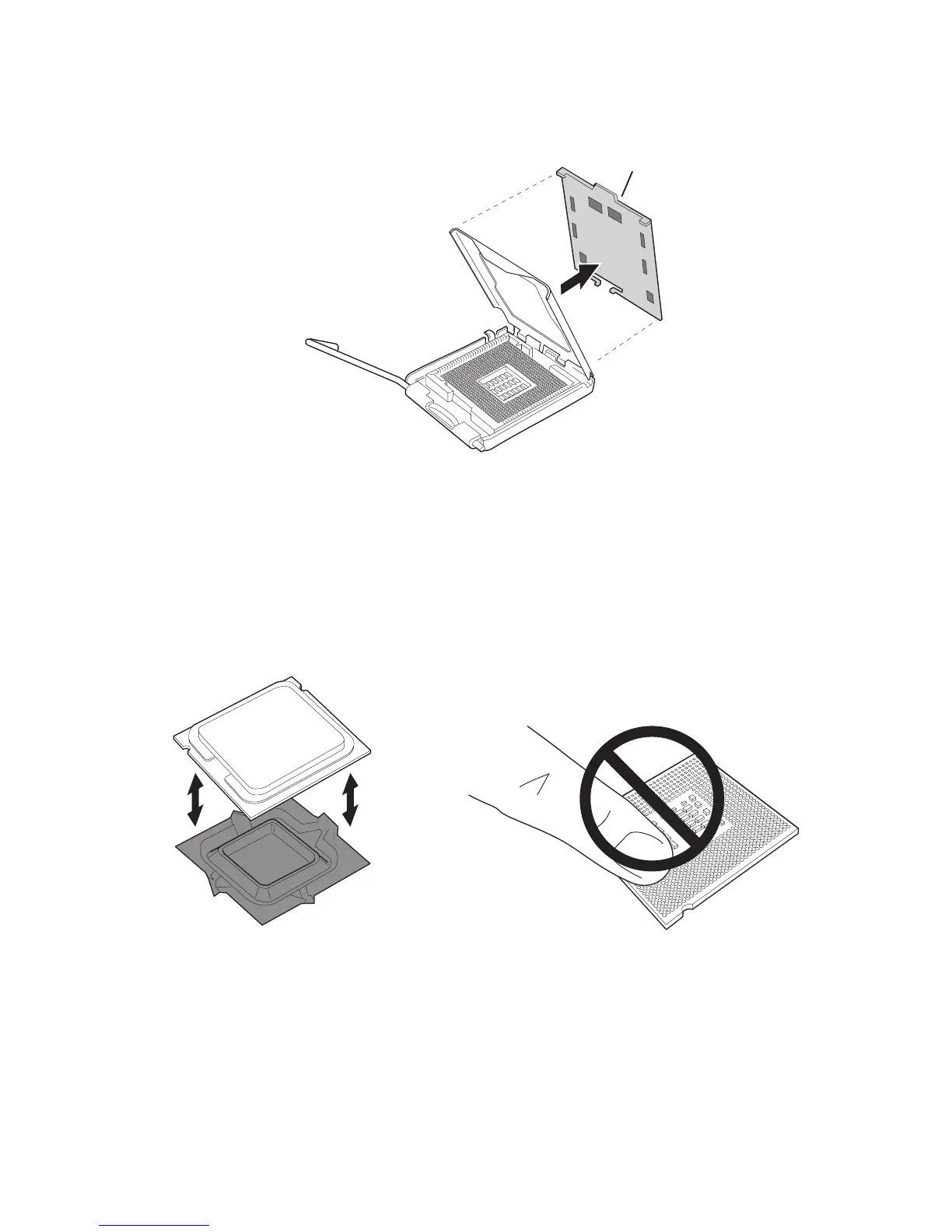

Figure 7. Remove the Processor from the Protective Processor Cover and Do Not Touch
Figure 6. Remove the Protective Socket Cover
