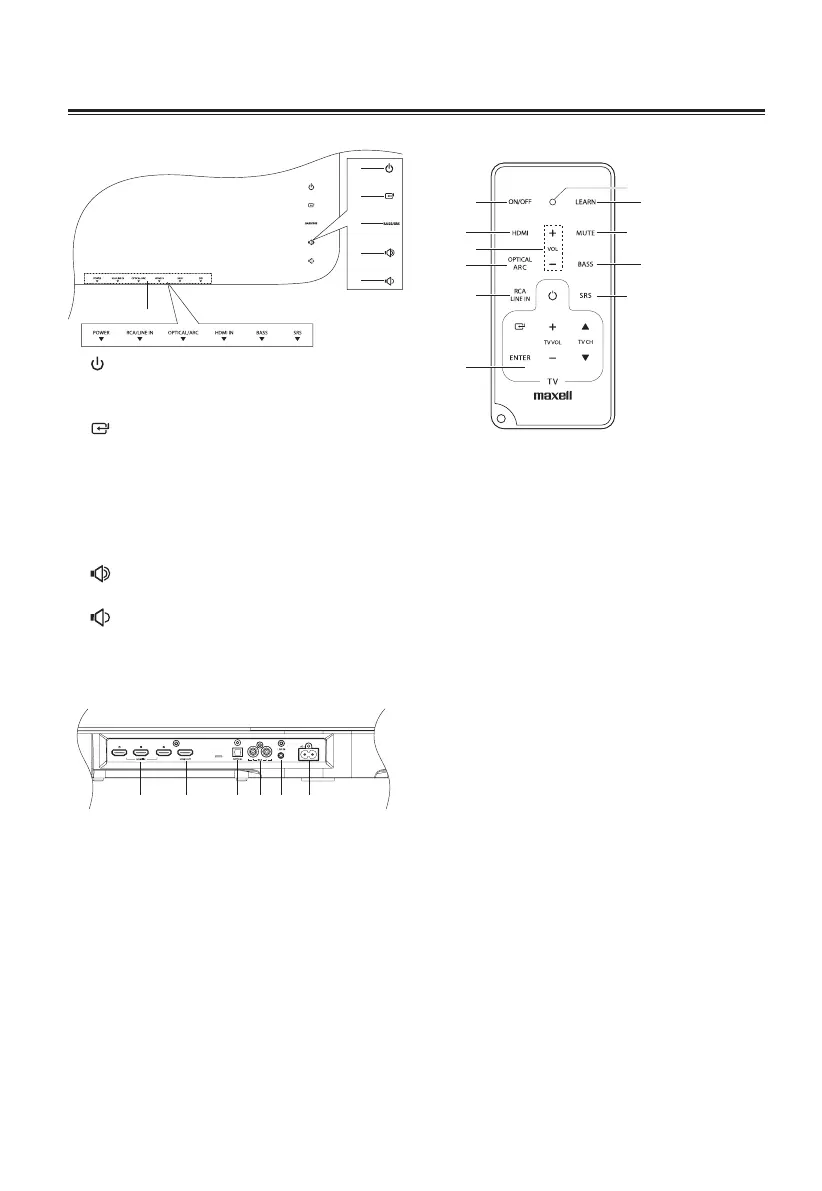

Maxell TT252 - Identifying the Parts; Main Unit: Top View; Rear View; Smart Remote Control

6
Smart Remote Control











1 ON/OFF
- Turn on or turn off the unit.
2 HDMI
- Select an HDMI audio input source
from HDMI 1, 2 and 3.
3 VOL+/- (Volume)
- Adjust sound volume level
4 Optical/ARC
- Select OPTICAL source or activate
Audio Return Channel (ARC) function.
5 RCA/LINE IN
Select RCA or LINE IN Source input.
6 TV Learning Zone
- Store some TV Remote Control functions
onto the Smart Remote Control.
(see P.12 for detail)
7 LEARNING INDICATION LIGHT.
- On: Learning mode activated
- Off: Learning mode inactivated
(see P.12 for detail)
8 LEARN
- Activate learning mode to setup
commands from the TV remote
control, to control some TV functions.
9 MUTE
- Mute or resume sound from the unit.
10 BASS
- Select Bass boost level 1,2 or no Bass
boost effect.
11 SRS
- Switch on or turn off SRS WOW HD effect.
Identifying the Parts
Main Unit: Top View






1
- Turn on this unit or switch to Power
standby mode.
2
- Select a source.
3 BASS/SRS
- Either select Bass boost level 1,2 or
no Bass boost effect; or
- Switch on or off the SRS WOW HD
effect
4
- Increase sound volume level.
5
- Decrease sound volume level.
6 Light indicators
Rear View
 
1 HDMI IN Socket
- Total 3 HDMI connectors compatible
with HDMI version 1.4 or below.
2 HDMI OUT Socket
- 1 HDMI connector compatible with
HDMI version 1.4 or below.
3 OPTICAL Terminals
- 1 Optical input jack.
4 RCA Terminals
- Standard RCA audio input jack.
5 LINE IN Terminals
- Standard 3.5mm audio input jack.
6 AC~ Power Plug
- Connect a power cord.
