DIRECTION OF FEED - INTERNAL
CUTS (gs 18a and 18b)
When making an internal cut, such as a
groove, dado, or slot, the edge guide,
straight edge, or board guide must
always be positioned on the right-hand
side of the router as you make the cut
(fig 18a).
When the guide is positioned on the
right hand side of the router, the router
travel should be from left to right and
“counterclockwise” around curves (see
fig 18a). This counterclockwise action
around the curve could cause “Climb
cutting.” Always be alert and exercise
extreme caution to maintain control of
the router when making this type of cut
around curves.
When the guide is positioned as shown in
fig 18b, the router travel should be from
left to right and clockwise around curves.
If there is a choice, the set-up in fig 18a is easier to use, but there is the
possibility of “Climb Cutting” around curves. In either case, fig 18a or fig 18b, the
sideways thrust of the router cutting is always against the guide, as is proper.
WARNING!
• Always securely clamp the workpiece in place, and keep a firm
grip on the router base with both hands at all times. Failure to do
so could result in loss of control, causing possibly serious personal
injury.
FPO
OPERATING INSTRUCTIONS

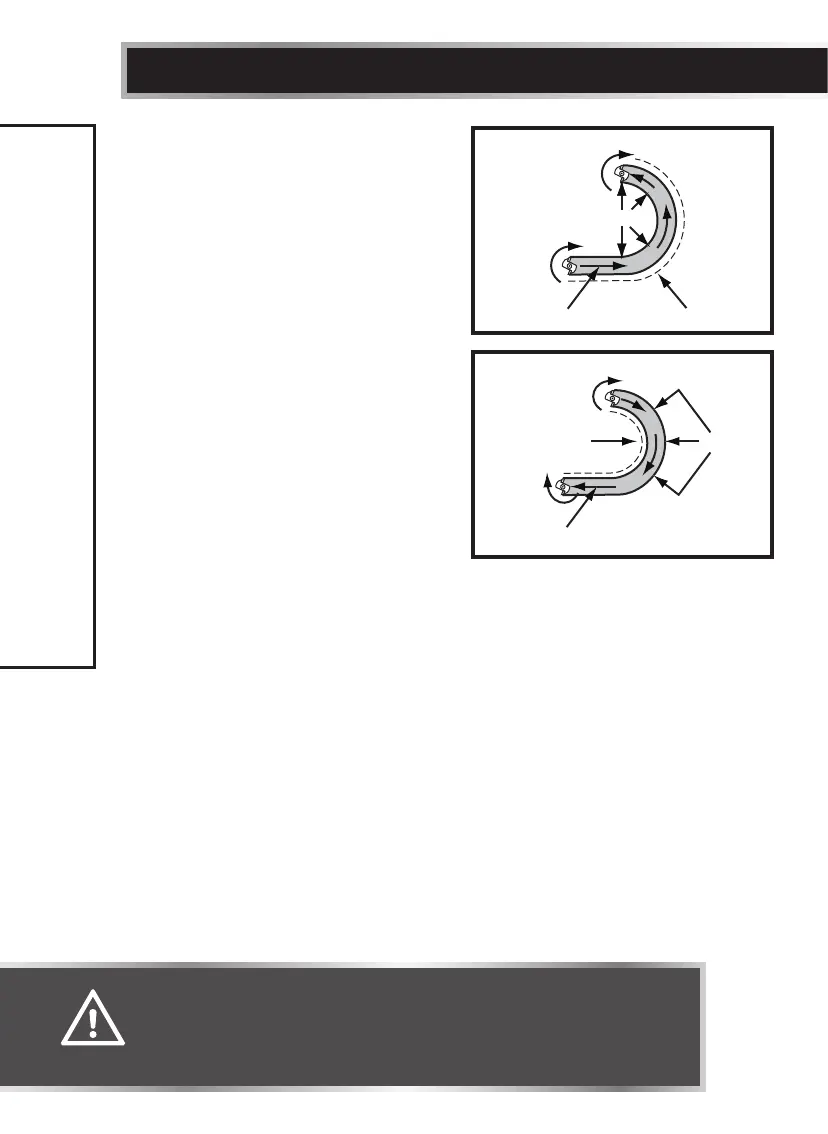

g 18a
Guide outside
Guide
Bit rotation
Rotation feed direction
Bit
rotation
Thrust
g 18b
Guide inside
Guide
Bit rotation
Rotation feed direction
Bit
rotation
Thrust
