SETTING THE CUTTING DEPTH FOR PLUNGE BASE ROUTING
The cutting depth can be adjusted in two ways: by depressing the handles, or by
turning the depth stop on the plunge base.
Adjustment by depressing the handles
(see fig 10)
1. Unplug the router.
2. Place the plunge base on a flat surface
or on the workpiece.
3. Loosen the locking arm.
4. Loosen the knob on the adjustment bar.
5. Depress the handles to the desired
depth.
6. Tighten the locking arm.
7. Tighten the knob on the adjustment bar.
Adjustment using the depth stop
1. Unplug the router.
2. Unlock the locking arm.
3. Loosen the knob on the adjustment bar.
4. Set the plunge adjustment knob to the desired setting by turning it clockwise
or counter-clockwise to raise or lower the depth stop.
5. Tighten the locking arm.
6. Tighten the knob on the adjustment bar.
ASSEMBLY INSTRUCTIONS

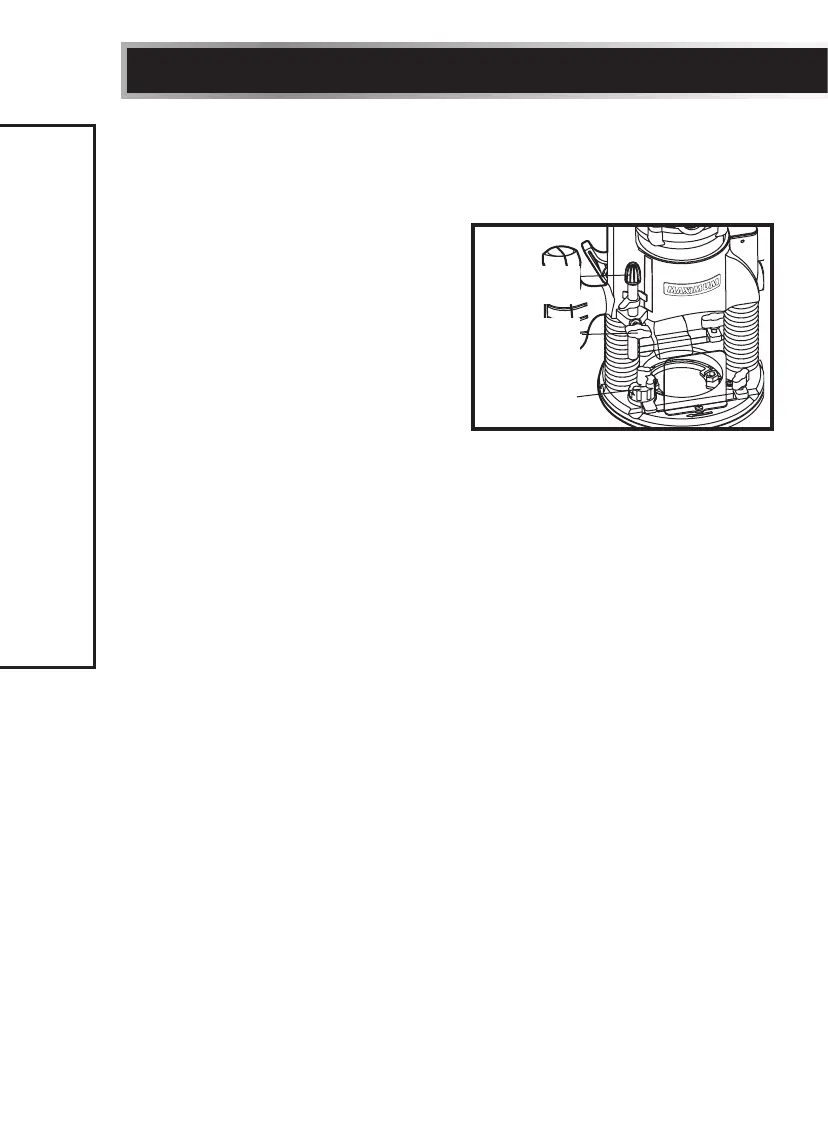

g 10
Adjustment
bar
Adjustment
bar knob
Depth stop
