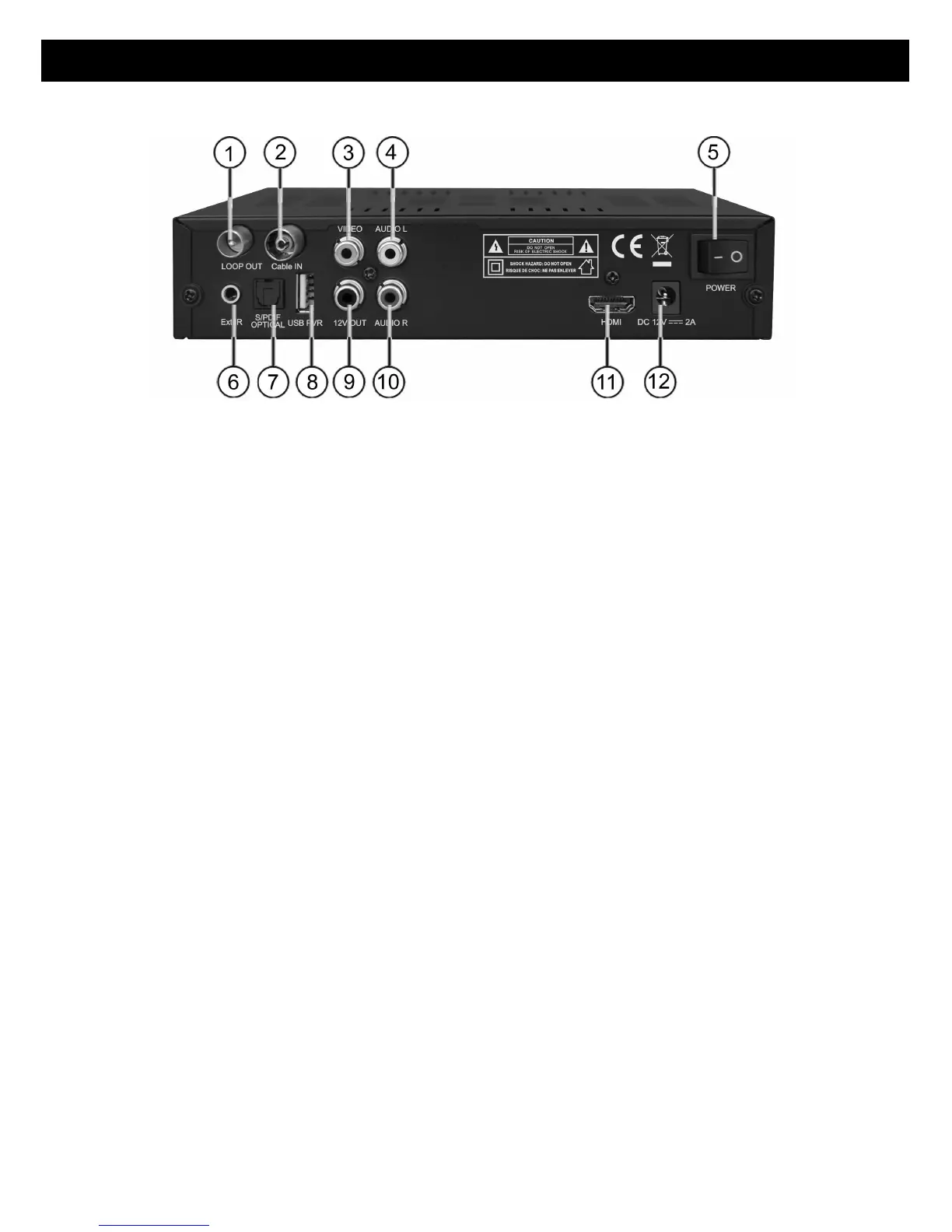

5.3 Rear Panel
No. Name FUNCTION
1 LOOP OUT Loop Through for Cable Signal
2 CABLE IN Input for Cable Signal
3 VIDEO Video Composite Output
4 AUDIO L Audio Output Left
5 POWER AC Power Switch
6 EXT. IR Input external IR-Sensor (Original part)
7 S/PDIF opt. Digital Audio Output optical
8 USB USB 2.0 Port
9 12V OUT 12V Output Connection
10 AUDIO R Audio Output Right
11 HDMI High-Definition Digital Video/Audio Output
12 DV 12V = 3A Connection for external Power Supply
