Maxol MONTE CARLO 3000 - Installation and Servicing Instructions; Important Installation Warnings; Fixed Ventilation and Cabinet Details

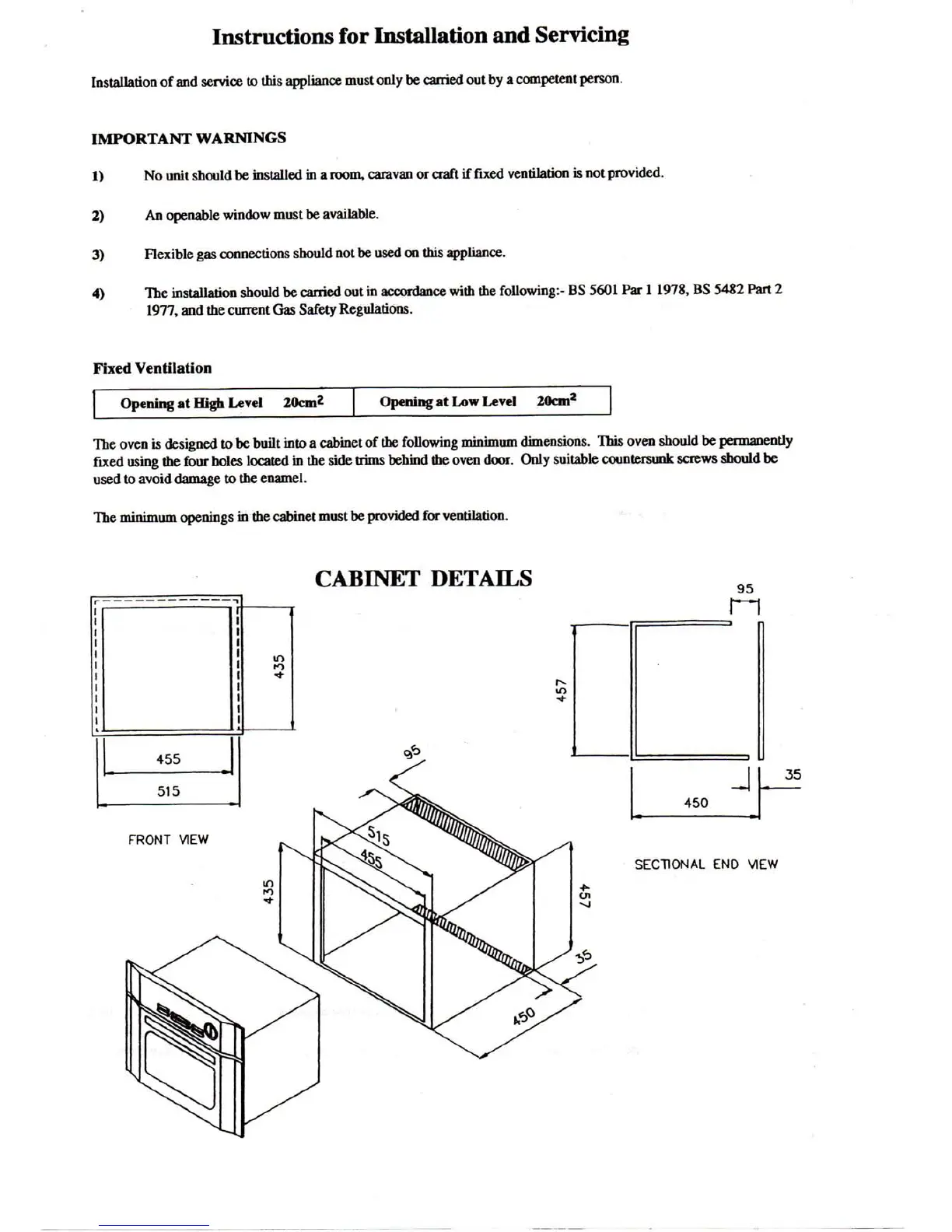

Instructions for Installation and Servicing
Installation of and service to this appliance must only be carried out by a competent person.
IMPORTANT WARNINGS
1) No unit should be installed in a room, caravan or craft if fixed ventilation is not provided.
An openable window must be available.
Flexible gas connections should not be used on this appliance.
2)
3)
4)
The installation should be carried out in accordance with the following:- BS 5601 Par 1 1978, BS 5482 Part 2
1977, and the current Gas Safety Regulations.
Fixed Ventilation
Opening at High Level 20cm2
Opening at Low Level 20cm2
The oven is designed to be built into a cabinet of the following minimum dimensions. This oven should be permanently
fixed using the four holes located in the side trims behind the oven door. Only suitable countersunk screws should be
used to avoid damage to the enamel.
The minimum openings in the cabinet must be provided for ventilation.
CABINET DETAILS
l J
to
m
•4-
455
515
FRONT VIEW
SECTIONAL END VIEW
