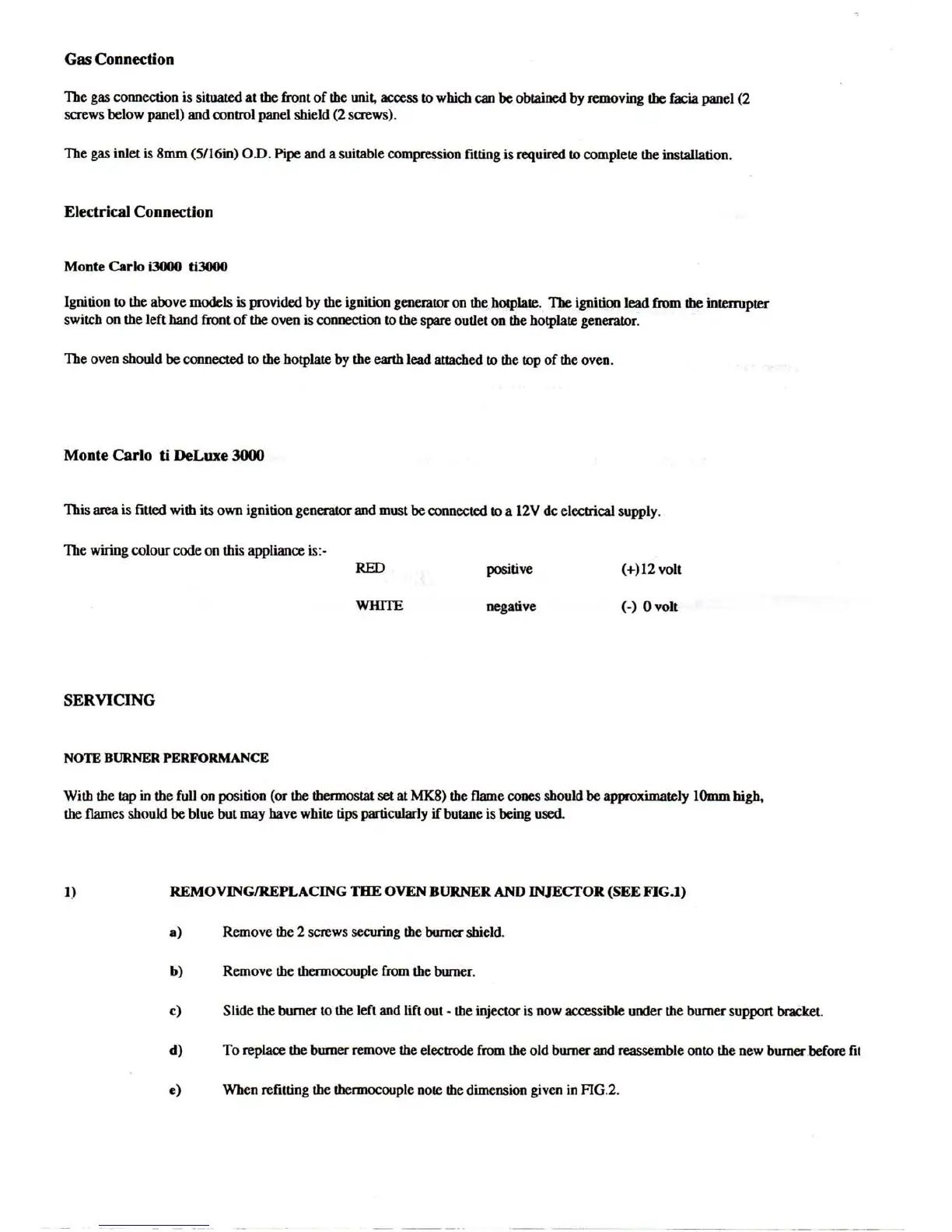

Maxol MONTE CARLO 3000 - Gas and Electrical Connections; Servicing Procedures; Burner Performance and Maintenance

Gas Connection
The gas connection is situated at the front of the unit, access to which can be obtained by removing the facia panel (2
screws below panel) and control panel shield (2 screws).
The gas inlet is 8mm (5/16in) O.D. Pipe and a suitable compression fitting is required to complete the installation.
Electrical Connection
Monte Carlo i30O0 U3000
Ignition to the above models is provided by the ignition generator on the hotplate. The ignition lead from the interrupter
switch on the left hand front of the oven is connection to the spare outlet on the hotplate generator.
The oven should be connected to the hotplate by the earth lead attached to the top of the oven.
Monte Carlo ti DeLuxe 3000
This area is fitted with its own ignition generator and must be connected to a 12V dc electrical supply.
The wiring colour code on this appliance is>
RED positive (+)12volt
WHITE negative (-) Ovolt
SERVICING
NOTE BURNER PERFORMANCE
With the tap in the full on position (or the thermostat set at MK8) the flame cones should be approximately 10mm high,
the flames should be blue but may have white tips particularly if butane is being used.
1) REMOVING/REPLACING THE OVEN BURNER AND INJECTOR (SEE FIG.l)
a) Remove the 2 screws securing the burner shield.
b) Remove the thermocouple from the burner.
c) Slide the burner to the left and lift out - the injector is now accessible under the burner support bracket.
d) To replace the burner remove the electrode from the old burner and reassemble onto the new burner before fit
e) When refitting the thermocouple note the dimension given in FIG.2.
