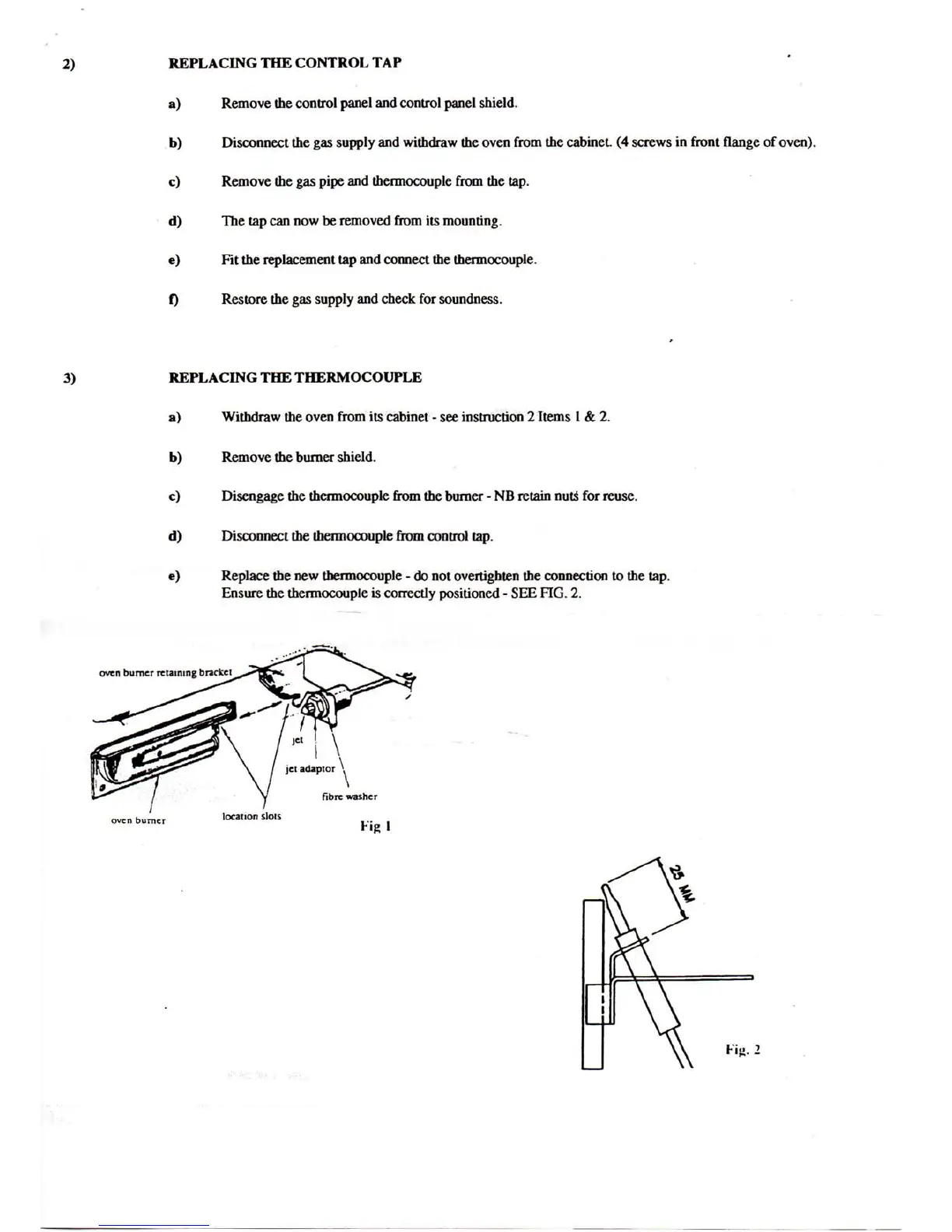

2)
REPLACING THE CONTROL TAP
a) Remove the
control
panel and
control
panel shield.
b) Disconnect the gas supply and withdraw the oven from the cabinet. (4 screws in front flange of oven).
c) Remove the gas pipe and thermocouple from the tap.
d) The tap can now be removed from its mounting.
e)
Fit
the
replacement
tap and
connect
the thermocouple.
1) Restore the gas supply and check for
soundness.
3)
REPLACING THE THERMOCOUPLE
a) Withdraw the oven from its cabinet - see instruction 2
Items
1
& 2.
b) Remove the
burner
shield.
c) Disengage the thermocouple from the
burner
- NB
retain
nuts
for
reuse.
d) Disconnect the thermocouple from control tap.
e) Replace the new thermocouple - do not overtighten the connection to the tap.
Ensure the thermocouple
is
correctly positioned -
SEE FIG.
2.
To Next Page
