4. For Liftgate equipped with hydraulic closer, hold power
closer switch (FIG. 15-1) and lower outboard control
switch (DOWN) at the same time to unfold platform
(FIG. 13-1).
5. Unlock and unfold fl ipover (if equipped)
(FIG. 13-2).

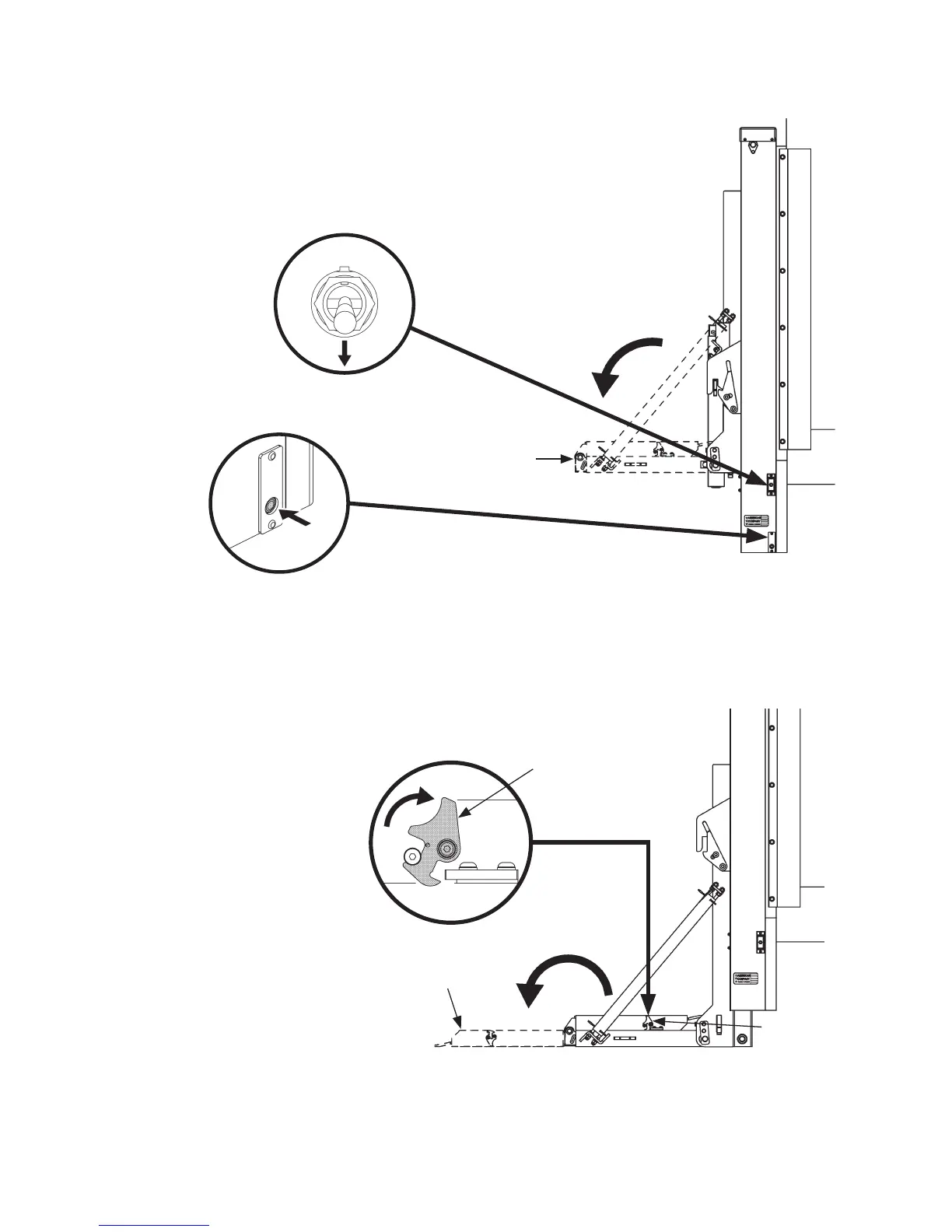

FLIPOVER
UNFOLDING FLIPOVER
FIG. 13-2
LATCH
UNFOLDING PLATFORM
(EQUIPPED WITH HYDRAULIC CLOSER)
FIG. 13-1
POWER CLOSER
SWITCH (UNFOLD)
OUTBOARD CONTROL
SWITCH (DOWN)
PLATFORM
LOCK
