NOTE: Some Liftgates are equipped with single or dual cart stops.
Cart stops prevent loaded carts from rolling off outboard end
of platform. Single cart stops are 1 section, about the same as
overall width of platform, and operate with one set of controls.
Dual cart stops are 2 identical sections, with a combined
width about the same as overall width of platform, and each
is independently operated with separate controls (1 set of
controls per cart stop). The following procedure shows how to
operate dual cart stops; however, a single cart stop operates
the same way.
CAUTION
!
To prevent injuries caused by tripping and falling, make sure
cart stops are closed before walking on and off outboard end of
platform.

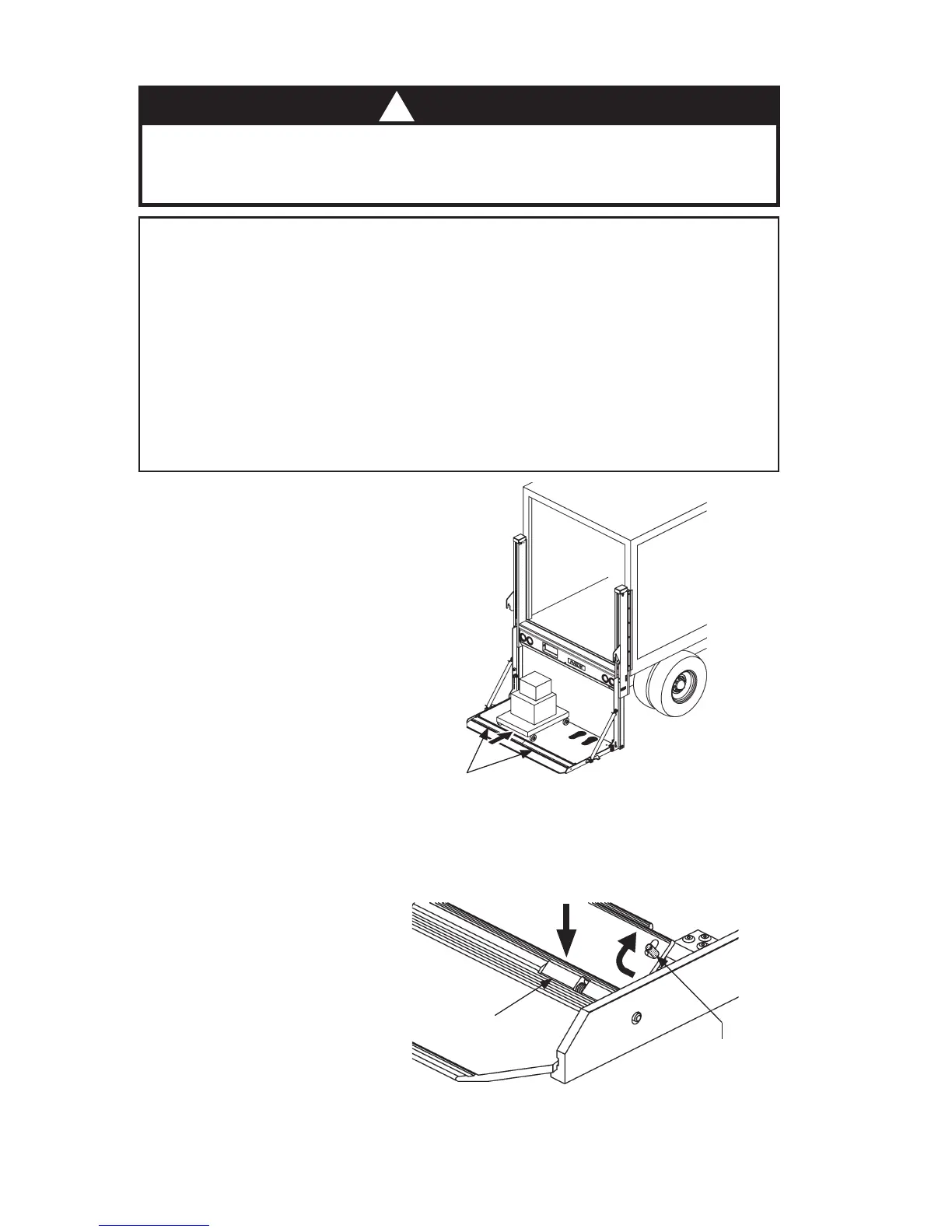

USING STANDARD CART STOPS (IF EQUIPPED)
1. Load a platform with cart stops
at ground level as follows.
Make sure cart stops are
closed when loading the plat-
form (FIGS. 22-1 and 22-2).
Then, move load on the plat-
form as shown in FIG. 22-1.
LOADING PLATFORM AT GROUND LEVEL
(CART STOPS CLOSED)
FIG. 22-1
CLOSING CART STOPS
(RH VIEW OF FLIPOVER)
FIG. 22-2
2. To close cart stops, push
shoot bolt to position shown
in FIG. 22-2. Step on cart
stops and push down into
locked position.
CART STOPS
CART STOP
SHOOT BOLT
