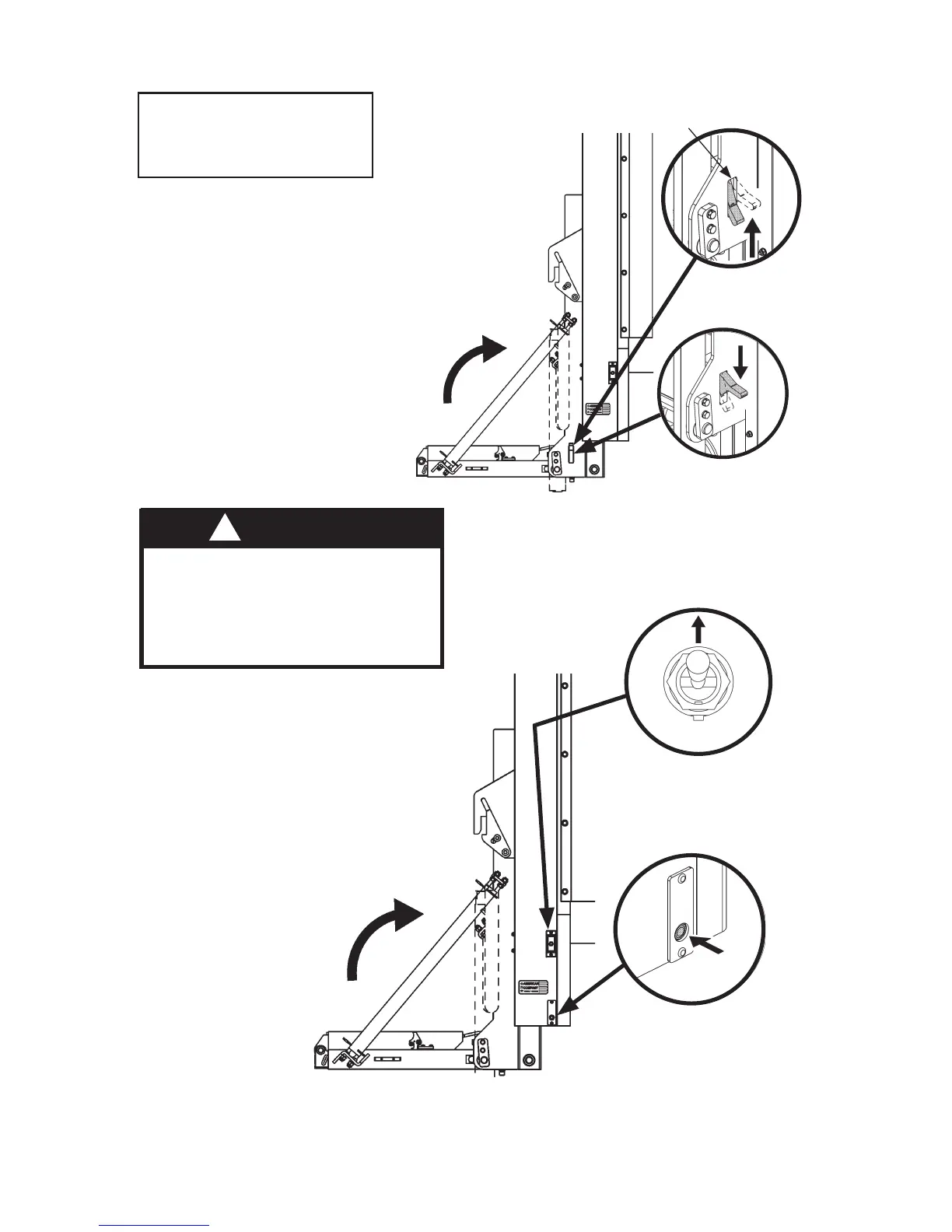

3. Pull UP on platform lock
(FIG. 20-1A) to unlock
platform. Fold platform
to stowed position (FIG.
20-1). Push platform lock
DOWN to lock platform
(FIG. 20-1B).
FOLDING PLATFORM
FIG. 20-1
FIG. 20-1A
4. If equipped with hydraulic closer,
(FIG. 20-2) use one hand for
outboard control switch (UP)
(FIG. 20-2A) and one hand
for FOLD/UNFOLD switch
(FIG. 20-2B). Activate FOLD
and UP together until platform
is folded.
STOWING PLATFORM - Continued
FOLDING PLATFORM WITH HYDRAULIC CLOSER
FIG. 20-2
NOTE: If platform is
equipped with hydraulic
closer, do step 4.
Folding the platform with
hydraulic closer requires 2
hands on the controls. This
helps prevent injuries.
CAUTION
!
FOLD/UNFOLD
SWITCH
FIG. 20-2B
OUTBOARD CONTROL
SWITCH (UP)
FIG. 20-2A
PLATFORM
LOCK
FIG. 20-1B
