Maxon DMD series - Loading with Open Cart Stops; Unloading with Closed Cart Stops

24
6. When loading the platform
at bed level, make sure cart
stops are open (FIG. 24-1).
Push load out of the vehicle
to correct position on the
platform. Place all loads
as close as possible to the
inboard edge of the platform
with heaviest part toward the
truck body as shown in FIG.
24-1. If standing on platform
with the load, stand in the
footprint area shown and
comply with the WARNING
on page 19.
Pulling the load from vehicle to platform can result in a fall
from platform and serious injury. When unloading vehicle,
always push the load out on the platform.
WARNING
!

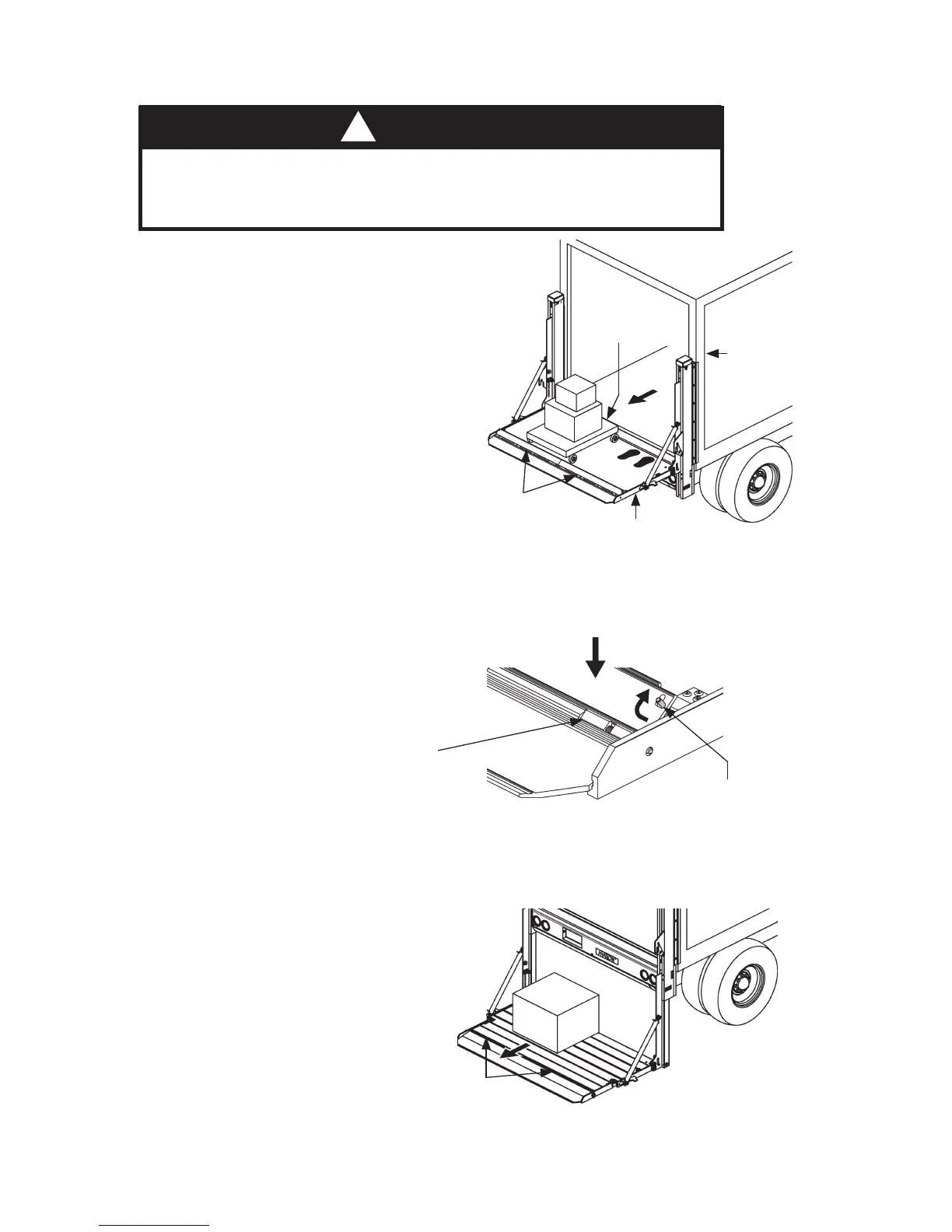

LOADING PLATFORM AT BED LEVEL
(DUAL CART STOPS OPEN)
FIG. 24-1
7. Unload the platform with cart
stops at ground level as fol-
lows. Make sure cart stops
are closed when unloading
the platform (FIG. 24-2).
Move cart enough to close
cart stop. Then, move load
off the platform as shown in
FIG. 24-3.
CART STOPS CLOSED
FIG. 24-3
CLOSING CART STOPS
(RH VIEW OF FLIPOVER)
FIG. 24-2
CART
STOPS
USING STANDARD CART STOPS (IF EQUIPPED)
- Continued
PLATFORM
CART
STOPS
INBOARD
EDGE
TRUCK
BODY
CART STOP
SHOOT BOLT
