Maxon DMD series - Unhooking and Releasing Retention Ramp

26
To prevent injuries, stay clear of the retention ramp path as it is
moved to ramp position. Go to either side of the ramp and stay
out of the way.
CAUTION
!
NOTE: To unhook the retention ramp, stand at the RH side of
fl ipover. After the retention ramp is unhooked, the recom-
mended place for handling the retention ramp is at the
center of the free edge (FIG. 26-2).
1. Unhook retention ramp (FIG.
26-1). To release from the
catches, pull retention ramp to-
ward outboard end of fl ipover as
shown in FIG. 26-2.

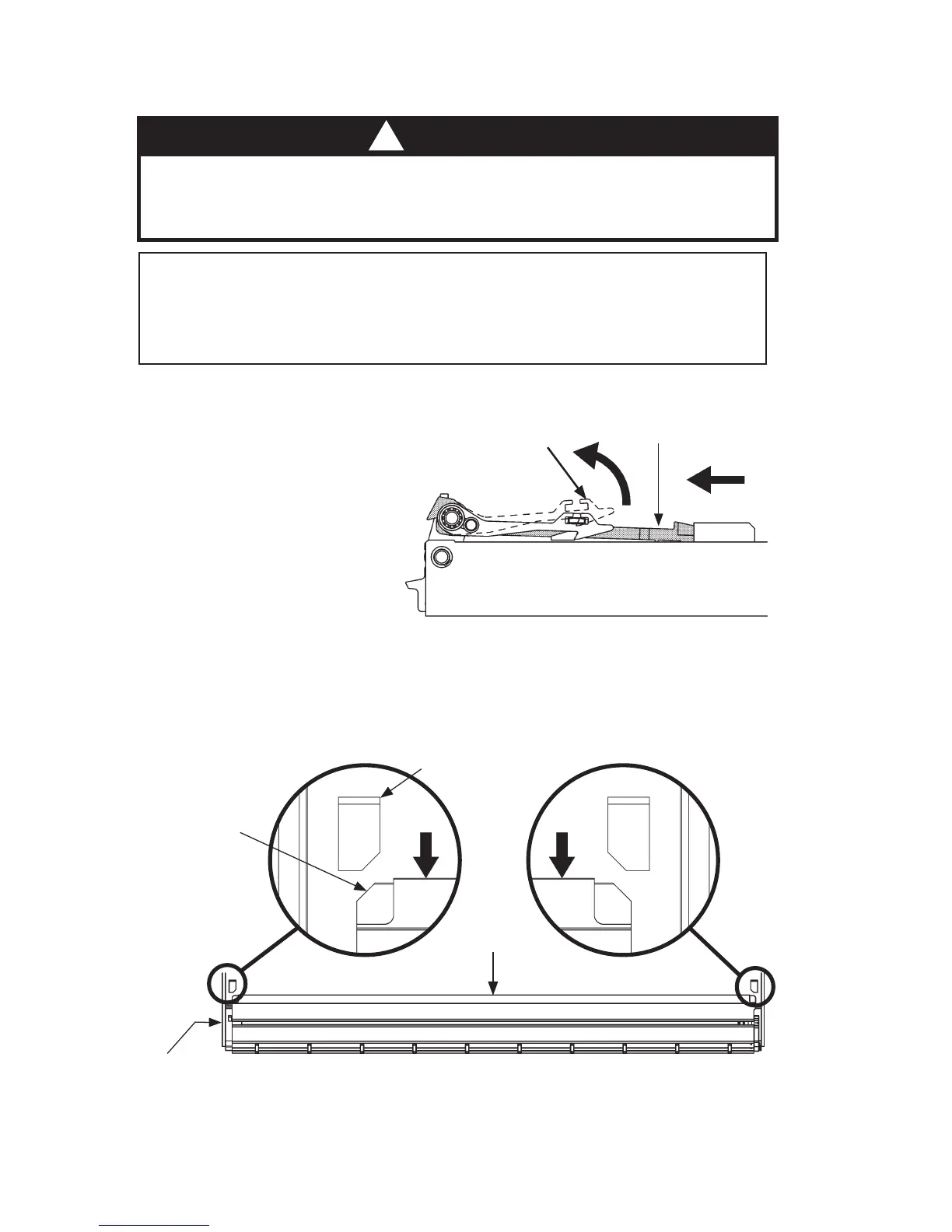

UNHOOKING RETENTION RAMP
(RH VIEW OF FLIPOVER)
FIG. 26-1
RELEASING RETENTION RAMP
(TOP VIEW OF FLIPOVER)
FIG. 26-2
HOOK
(LIFT HERE)
PULL
RETENTION
RAMP
CATCH
(2 PLACES)
RETENTION
RAMP
PULL
HERE
FLIPOVER
USING RETENTION RAMP (IF EQUIPPED)
- Continued
