3. When cart is on platform,
place the retention ramp in
the retention position (FIGS.
27-3 and 27-4). Next, stand
in the footprint area shown in
FIG. 27-3.

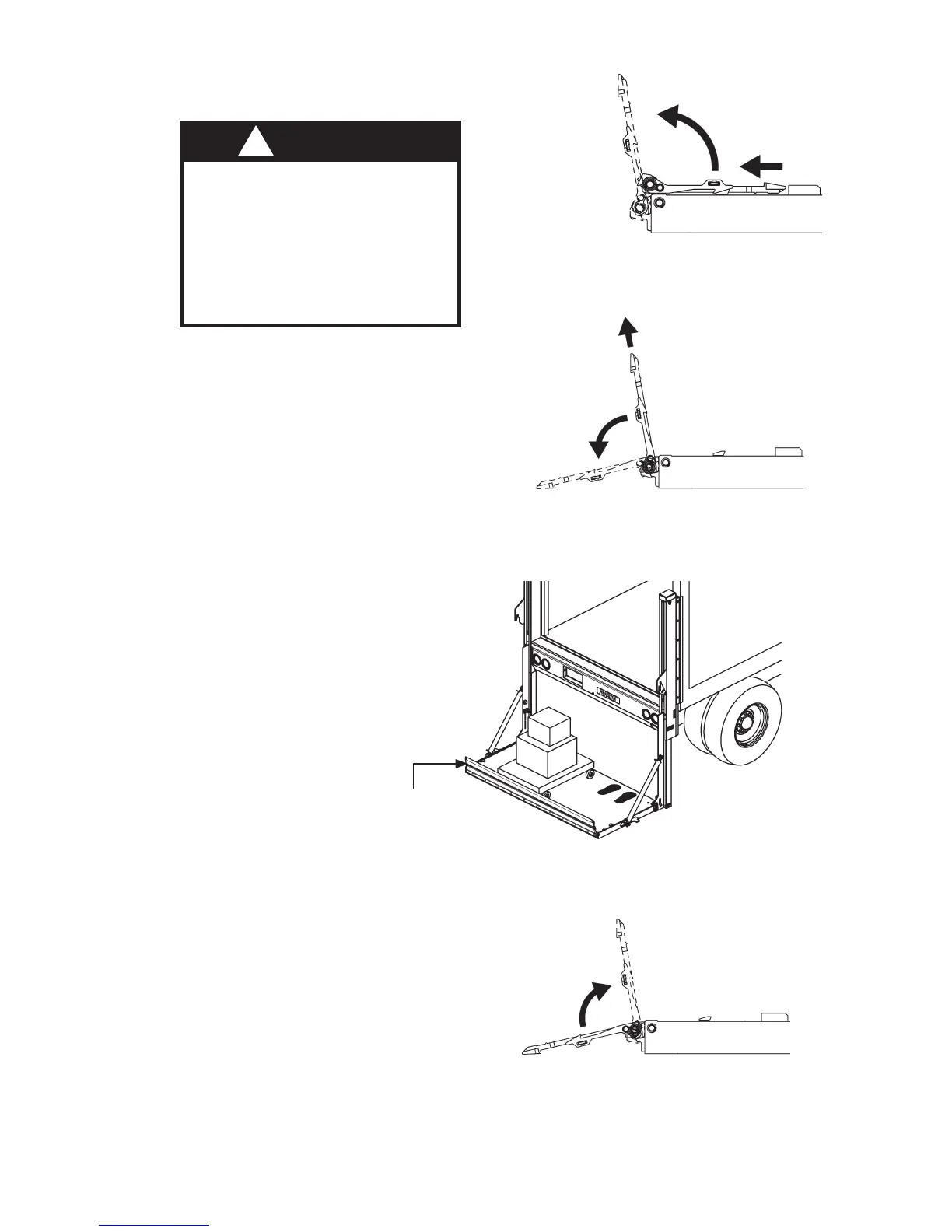

RAMP IN RETENTION POSITION
FIG. 27-3
RETENTION
RAMP
ROTATING TO RETENTION POSITION
(RH VIEW OF FLIP OVER)
FIG. 27-4
RETENTION
2. Continue to pull retention ramp
to the retention position (FIG.
27-1) and then to ramp posi-
tion (FIG. 27-2).
MOVING TO RAMP POSITION
(RH VIEW OF FLIP OVER)
FIG. 27-2
RAMP
MOVING TO RETENTION POSITION
(RH VIEW OF FLIP OVER)
FIG. 27-1
PULL
RETENTION
CAUTION
!
To prevent injuries, stay
clear of the retention ramp
path as it is moved to
ramp position. Go to either
side of the ramp and stay
out of the way.
