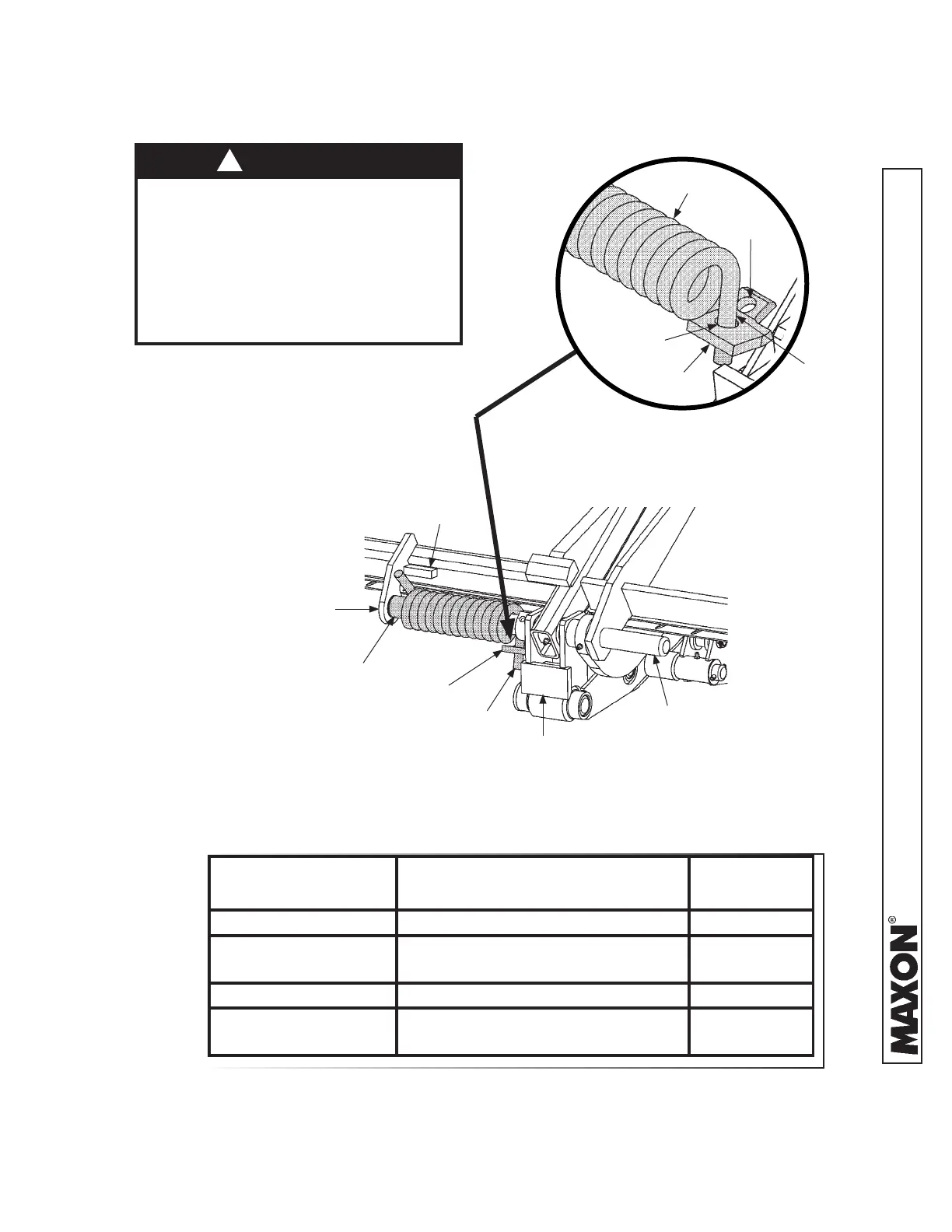

INSTALLING HINGE PIN
(RH SIDE OF PLATFORM SHOWN)
FIG. 19-1
5. Install the new torsion spring and
bushing as shown in (FIGS. 19-1
and 19-1A). Make sure long leg of
the spring is placed in correct hole
on the bracket. Refer to TABLE 19-1
for the correct hole.
BLOCK
BRACKET
PLATFORM
HINGE
BRACKET
LONG
LEG
SHACKLE
BUSHING
HOLE 1
HOLE 2
RH TORSION SPRING
SHOWN POSITIONED IN HOLE 1
FIG. 19-1A
BRACKET
LONG
LEG
SPRING
PIN
SPRING BRACKET
LOCATION
TYPE OF PLATFORM
HOLE TO
BE USED
RH SIDE STEEL PLATFORM & FLIPOVER 1
RH SIDE
STEEL PLATFORM & ALUMINUM
FLIPOVER
2
RH SIDE ALUMINUM PLATFORM & FLIPOVER 2
LH SIDE
ALL COMBINATIONS OF PLATFORMS
& FLIPOVERS
3
(NOT SHOWN)
BRACKET HOLE SELECTION GUIDE
FOR RH & LH TORSION SPRINGS
TABLE 19-1
CAUTION
Incorrect selection of torsion
spring bracket holes can result
in unnecessary strain or injury
to operator. Selecting the correct
bracket hole will reduce the force
needed for operator to unfold and
fold the platform.
!
