7. Operate the Liftgate according to
instructions in Operation Manual
to make sure it operates correctly.
6. Drive platform hinge pin inboard to
correct position through the
platform hinge bracket ( FIG. 20-1).
Line up the hole in the platform
hinge pin with the hole in the pin
collar. Install the roll pin through
the pin collar until roll pin protrudes
equally from both sides of the collar
(FIG. 20-1).

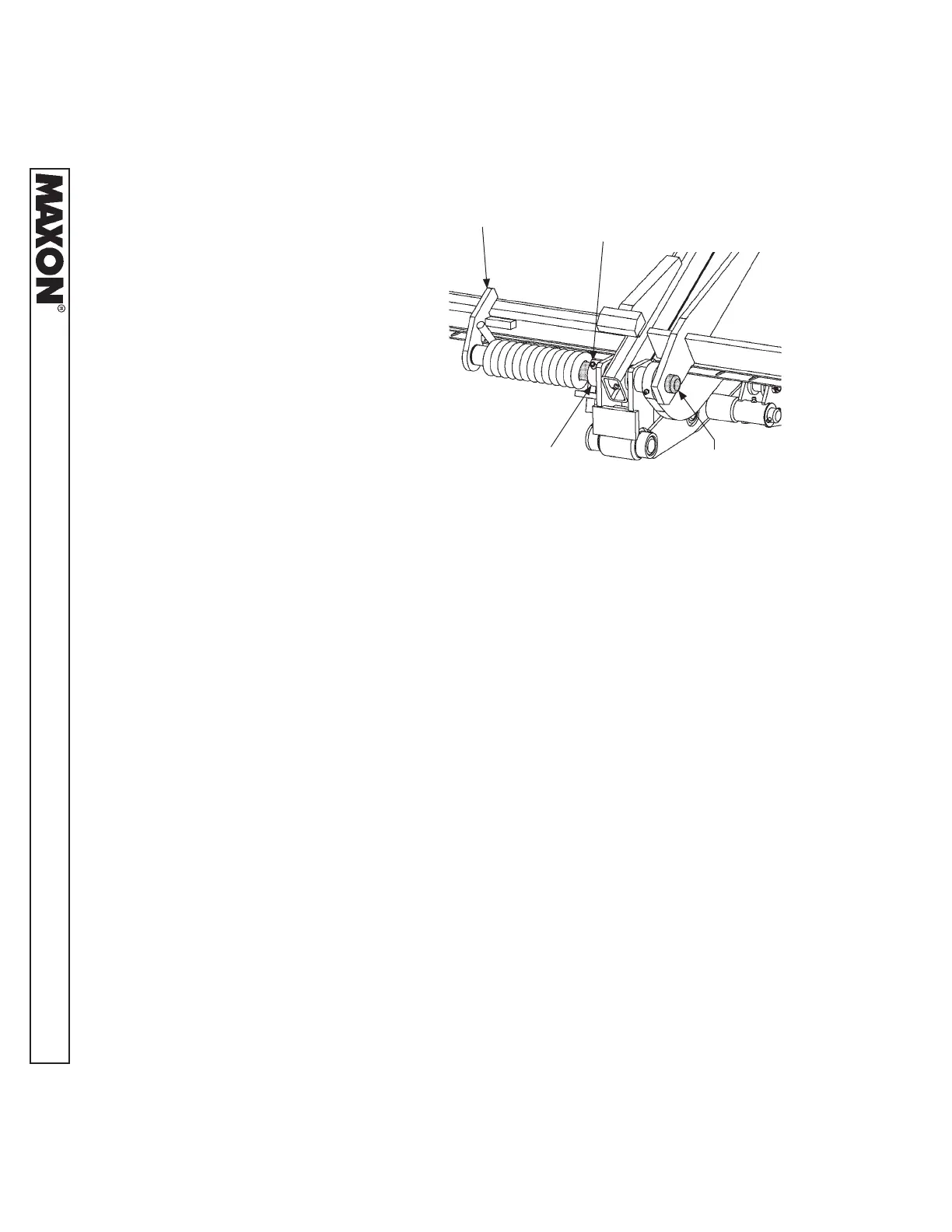

FIG. 20-1
PIN
COLLAR
PLATFORM
HINGE PIN
PLATFORM HINGE
BRACKET
ROLL PIN INSTALLED
REPLACING PLATFORM TORSION SPRING - Continued
To Next Page
