MAXPEEDINGRODS Q96 - Rear Panel Overview; Wire Connecting

PRODUCT OPERATION
02
PRODUCT OPERATION
02
05
06

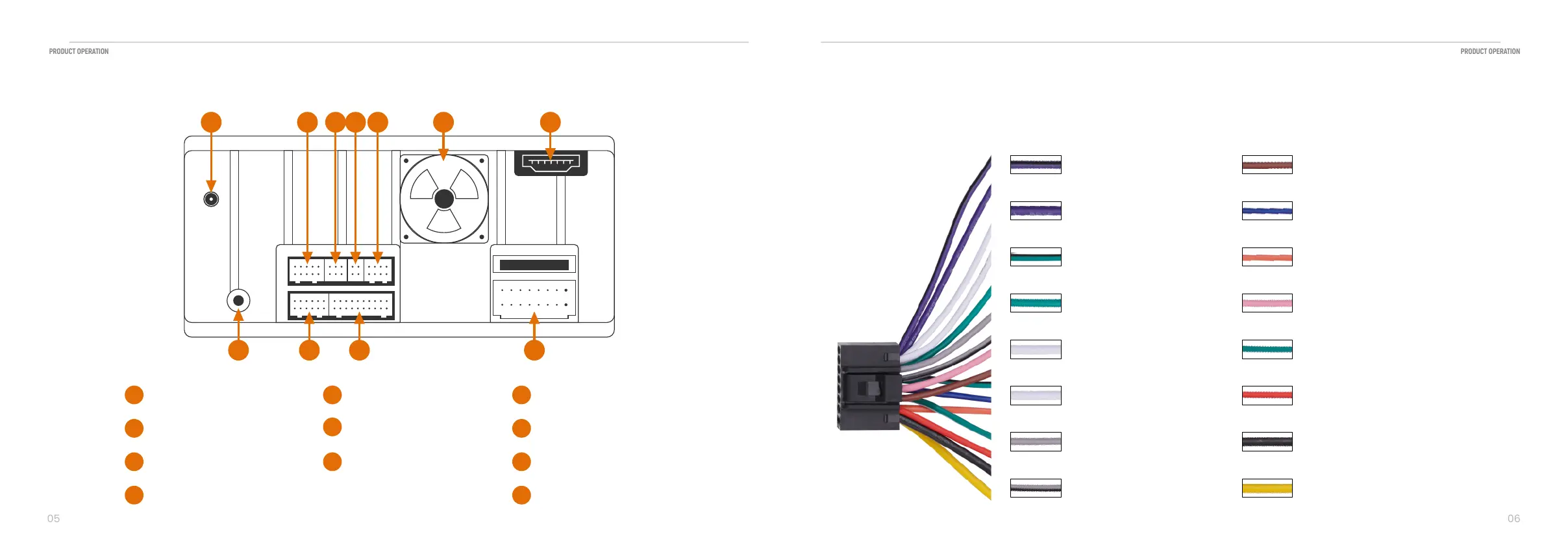

2.3 Rear operation
01
02
07
08
09
10 11
03
04
05
06
0108
07 03 04 05 06 1009
02 11
Power amplifierDVR camera input Rear camera input
USB1 charging USB2 charging
FM/AM Antenna jack
Protocol interface
Cooling Fan
Wire harness connector
GPS
Video input (Not included in the package)
Power amplier
(we recommand you to use RCA output to enjoy your music journey)
2.4 Wire Connecting
Rear R-
connect to speaker
Rear R+
connect to speaker
Front R+
connect to speaker
Front R-
connect to speaker
Key1
connect to Steering wheel
Back
connect to Universal back
camera Reversing Line
Rear L-
connect to speaker
ANT
connect to Antenna hardware
interface
+ILL
connct to Instrument
Cluster Lighting
Key2
connect to Steering wheel
ACC
connect to +12V Ingition Switch
Gnd
connect to Ground wire
B+ battery
connect to Battery 12V B+
Front L+
connect to speaker
Front L-
connect to speaker
Rear L+
connect to speaker
