30 CHAPTER 8: DECK EQUIPMENT
1750SR & 1800SR Bimini Top (If Equipped)

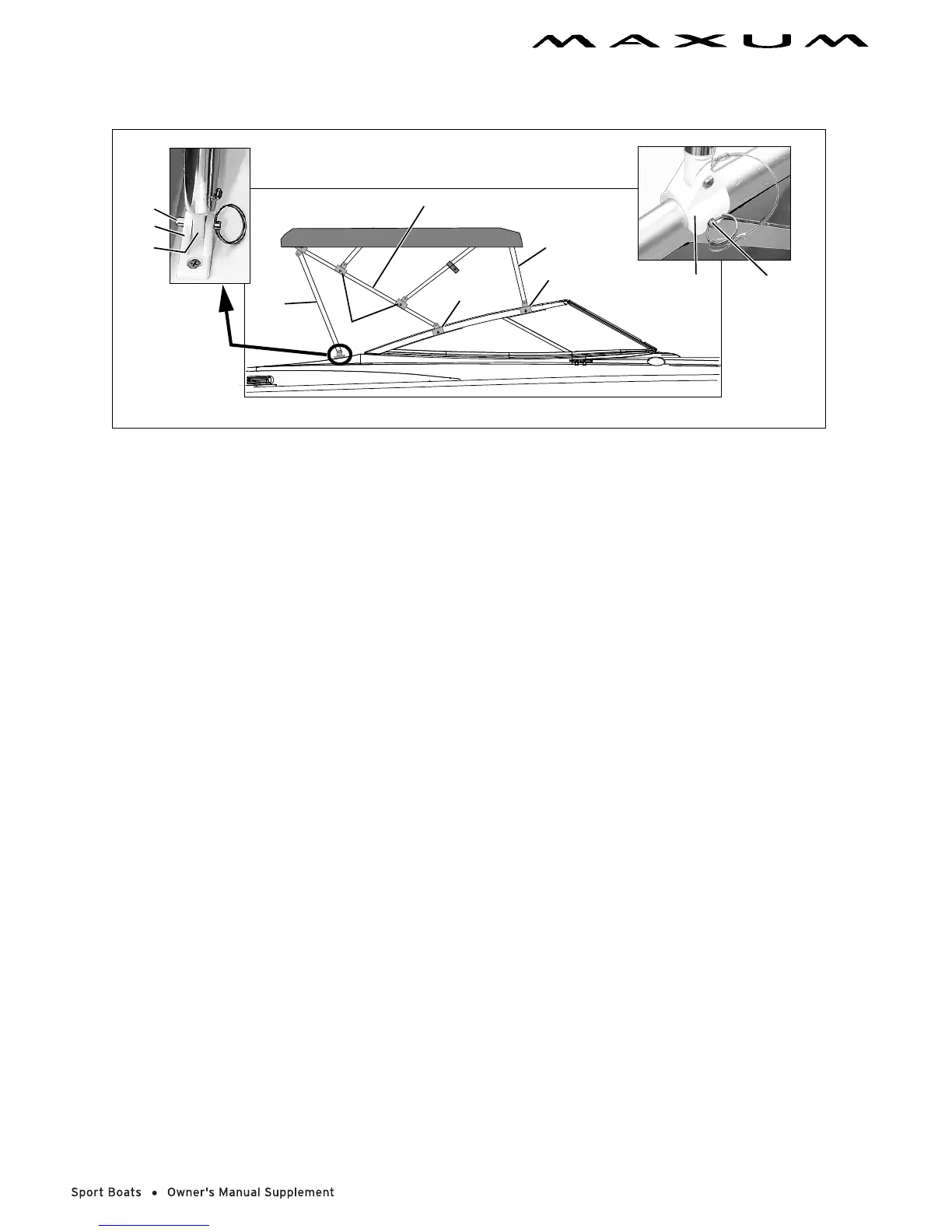

Installing the Bimini Top
1. Slide the swivel ends of the main bow (A) over the aft holes (B) in the side windshield frames and secure with
the pins.
2. Insert the end eyes (C) of the aft braces (D) into the deck hinges (E) and secure it with the pins (F).
3. Unfold the canvas and slide the swivel ends of the forward braces (G) over the forward holes (H) in the side
windshield frames and secure with the pins.
• Since the jaw slides (I) were preset during manufacturing they should not need to be adjusted.
• However, if you think the jaw slides need to be adjusted, obtain the measurements from your selling dealer.
A
D
B
G
H
I
SECURING
PIN
SWIVEL
END
F
E
C
