CHAPTER 12: ELECTRICAL SYSTEM 41

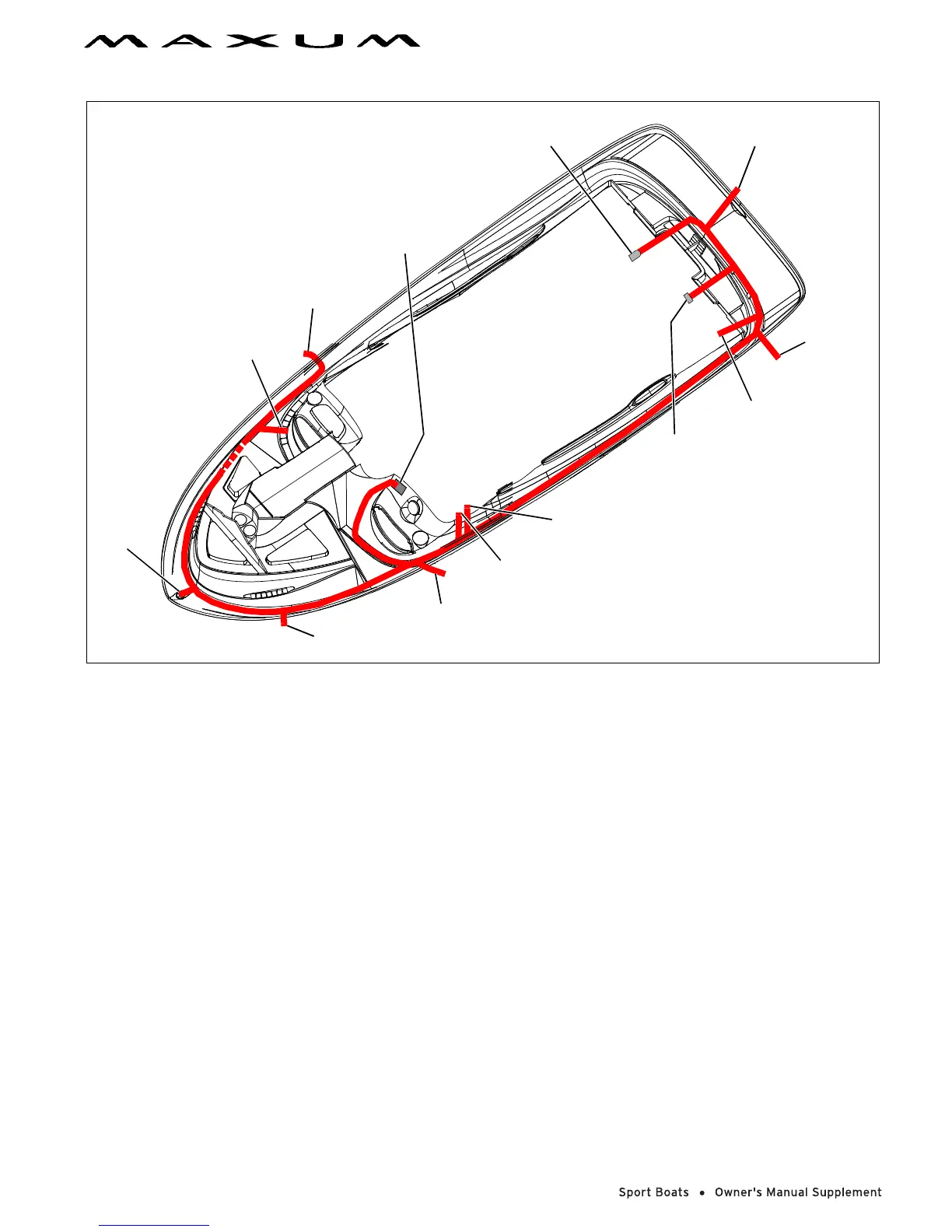

1800SR Deck Electrical Harness
NOTE: VIEW IS OF UNDERSIDE OF DECK
STERN LIGHT
ENGINE PLUG
FUEL FILL
GROUND
TRIM PUMP
BILGE PLUG
SPEAKER
STEREO
BOW LIGHT
HORN
FUSE PANEL
SPEAKER
SHIFTER
KILL SWITCH
