40 CHAPTER 12: ELECTRICAL SYSTEM
Electrical Routings

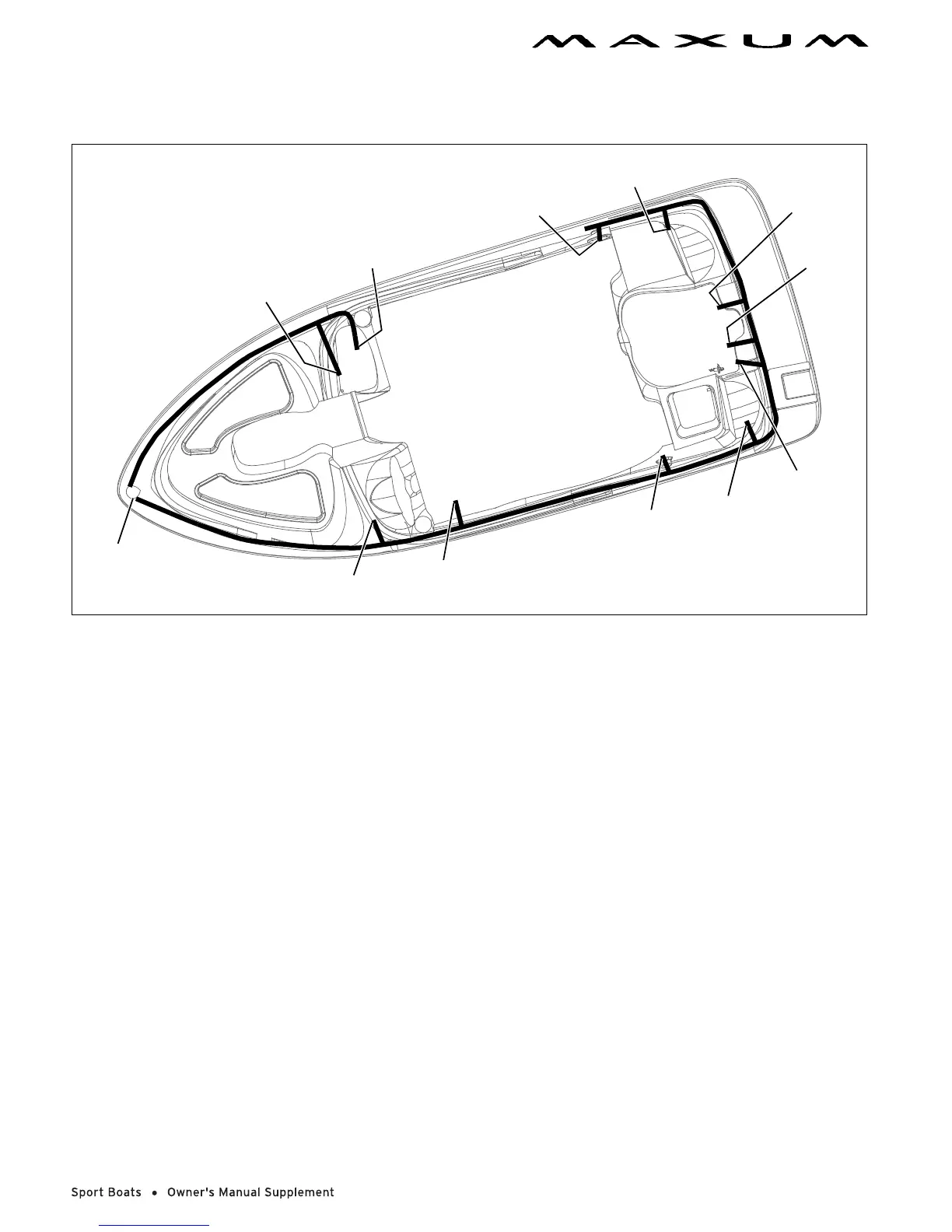

1750SR Deck Electrical Harness
BOW
LIGHT
NOTE: VIEW IS OF UNDERSIDE OF DECK
12 VOLT
RECEPTACLE
STEREO
SPEAKER
FUEL FILL
GROUND
ENGINE
PLUG
BILGE
PUMP
TRIM
PUMP
ALL AROUND
LIGHT
SPEAKER
SHIFTER
HORN
