Chapter 3: Locations
33
Fuel Tank - 1800MX: Located
in the engine compartment, on
the port side of the engine.
Fuel Tank - 1800SR,
1900SR. 2000SR,
2100SC, & 2200SR:
Located in the engine
compartment, forward of
the engine.
Fuse Block- 1800MX, 1800SR, 1900SR, &
2000SR: Access is through the starboard aft
seat back in the bow seating area.

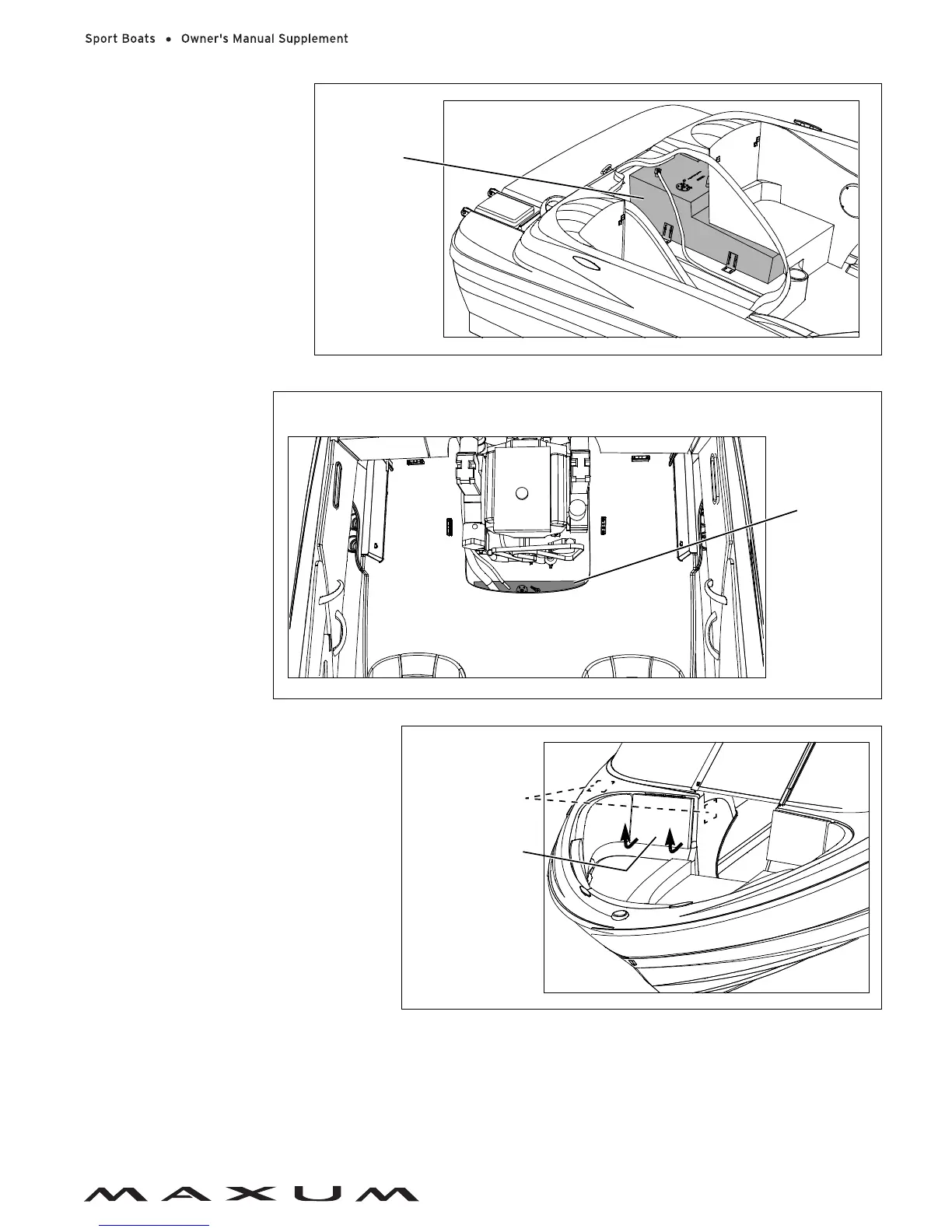

FUEL TANK
FUEL TANK
TYPICAL VIEW
TYPICAL FUSE
LIFT SEAT BACK
FOR ACCESS TO
FUSE BLOCK
BLOCK LOCATIONS
