B21
B21
C34
B21
C33
12

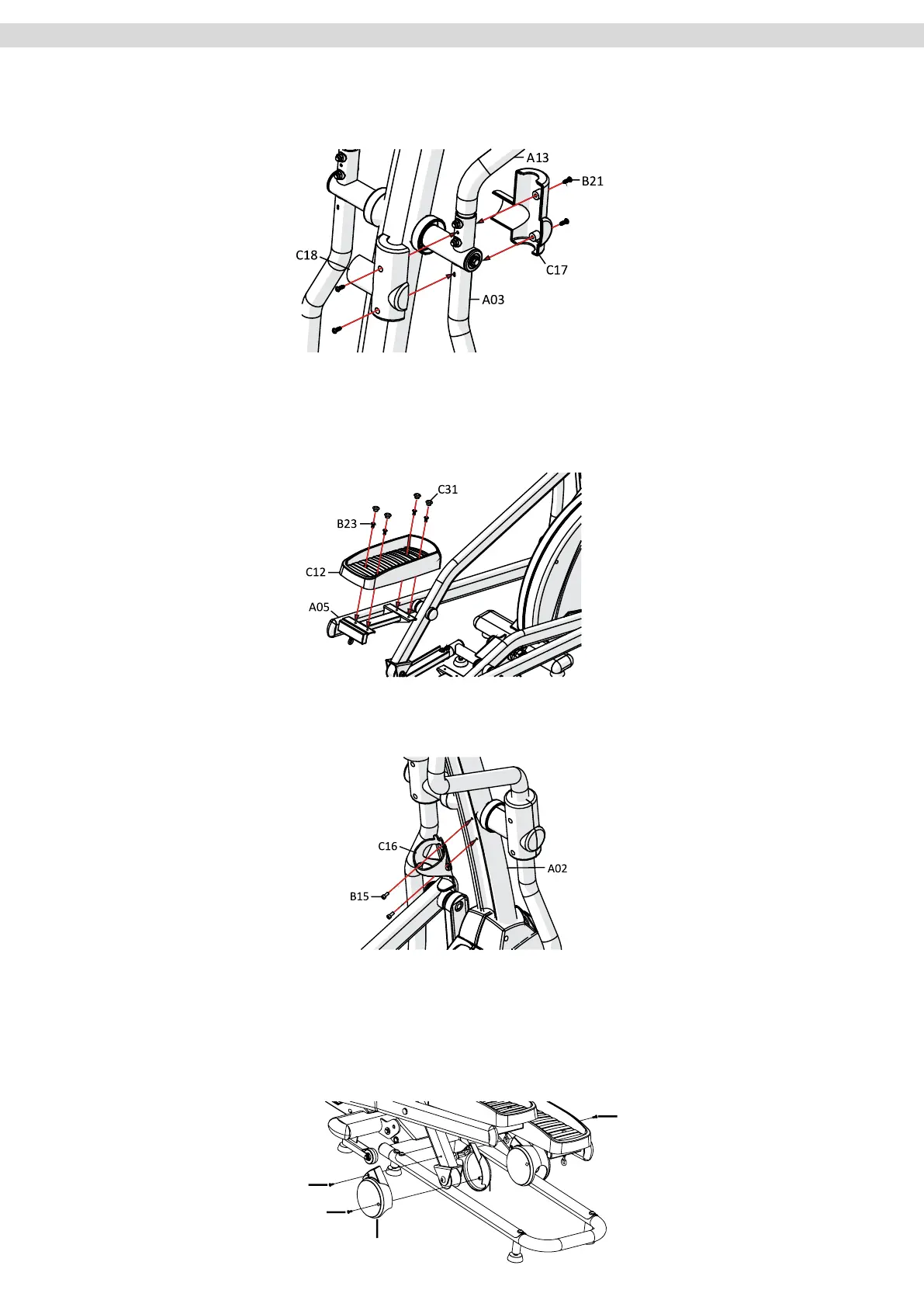

Step 12: Assembly of the Pendulum Tube Covering
Attach the two left pendulum tube covers (C17) at the connection of the left pendulum handle (A13) to the left
pendulum tube (A03) using four screws (B21).
Repeat with the right pendulum handle (A14) and pendulum tube (A04).
Step 13: Assembly of the Treads
Attach one of the two treads (C12) to the rear of the brackets on the right and left pedal arms (A05-left / A06-
right). Use four round head screws (B23) per tread. After mounting the treads press four end caps (C31) from
above into the four screw holes in each tread (C12).
Step 14: Assembly of the Bottle Holder
Loosen and remove both pre-assembled round head screws (B15) from the handlebar stem (A02). Fix the bottle
holder (C16) onto the handlebar stem (A02) using the two round head screws (B15).
Step 15: Assembly of the Roller Covers
Attach the left and right roller covers (C34-left/C33-right) above the rollers on the right and left guide tubes (A07/
A08) using three round head screws (B21)
Assembly
