B13
B30
A17
A12
A01
B43
B42
B42
B41
A16
C32
7
ENG
Assembly

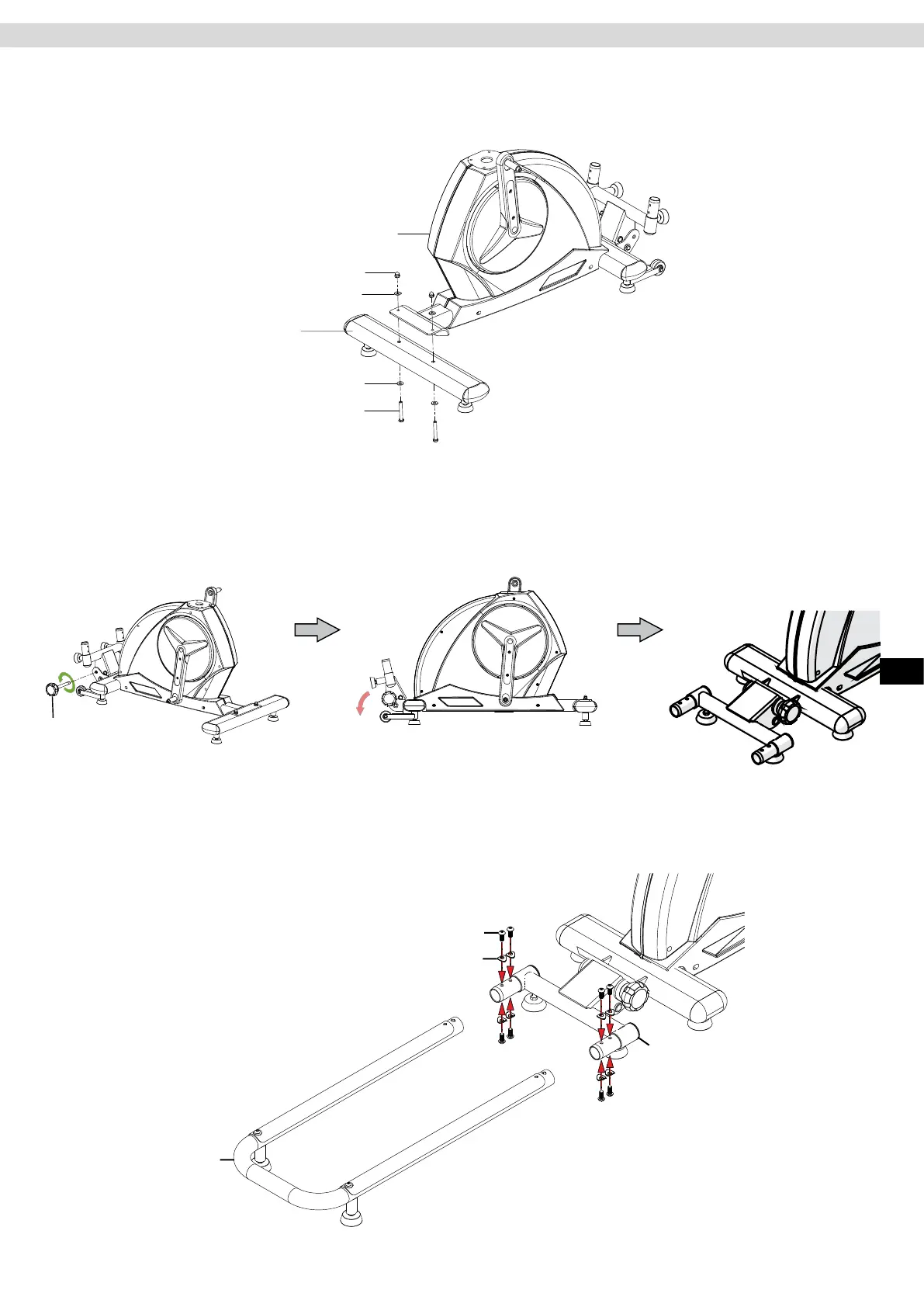

Step 2: Assembly of the Front Stand
Attach the front stand (A16) with the adjustable feet to the front mount on the base frame (A01) using two hexa-
gon bolts (B41), four washers (B42) and two cap nuts (B43).
Step 3: Assembly of the Slide Frame
Loosen and remove the knob (C32) then fold down the folding frame. Secure it by re-inserting the knob (C32)
and turning it tight.
Now attach the slide frame (A12) to the two mounts on the folding frame. Fix the slide frame (A12) to the folding
frame on both mounts using four hexagon socket screws (B13) and four curved washers (B30) on each.
To Next Page
